SDR Receiver Radio Communication Platform For BossSDR SDRuno RSP1 (Teaching Version)

Availability: In stock, usually dispatched in 1 business day

  • Price:$64.74
  • Price in reward points: 647 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.45 $62.15 $60.21 $57.62 Contact US
Quantity:

SDR Receiver Radio Communication Platform For BossSDR SDRuno RSP1 (Teaching Version)

Description:

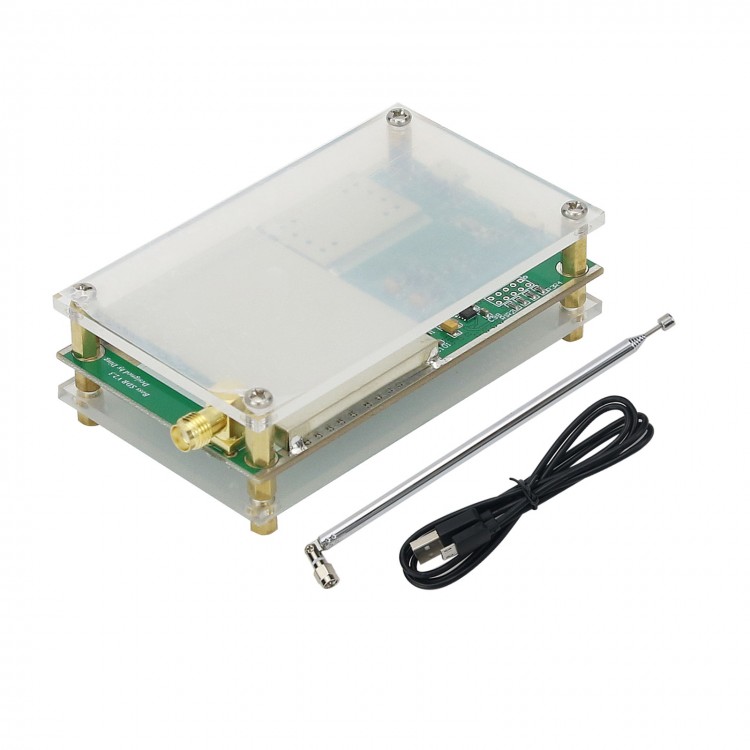

It is a broadband software radio receiver with a receiving range of 1MHz ~ 2GHz and an intermediate frequency sampling rate of 2MHz ~ 10MHz. Through re-sampling, the IF sampling rate can be as low as 0.25MHz, and the number of ADC bits can be up to 12bit depending on sampling rate.

When used with a computer and a matching antenna, it enables radio receiving function.

For Windows system, it directly fits for SDRuno software. Rich API interface is convenient for users to conduct secondary development. It can be used for Matlab or GNU Radio.

Video For High Frequency Point Tests:
https://v.youku.com/v_show/id_XNDM1MjY0ODY2MA==.html?spm=a2h3j.8428770.3416059.1

Video For Common Frequency Point Tests :
https://v.youku.com/v_show/id_XNDQyNjc0NTc3Mg==.html?spm=a2h3j.8428770.3416059.1

Typical Applications:
- For Software radio
- For ADS-B receiver
- For GPS software receiver
- For simple spectrum analyzer
- For GNU Radio, Matlab software radio experiment platform

Specifications:
- Rated Current: 200mA
- Data Interface: Micro USB 2.0
- Receiving Frequency Range: 1-2000MHz
- Sampling Rate (fs): 2-10.66MHz
- ADC Resolutions:
  14bit (fs=2-6.048MHz)
  12bit (fs=6.048-8.064MHz)
  10bit (fs=8.064-9.216MHz)
   8bit (fs>9.216MHz)
- Crystal Oscillator Accuracy: 0.5PPM TCXO
- Maximum Input Power: 0dBm (short time); 10dBm (long time)
- Weight: 75g

Package Included:
- 1 x SDR Receiver

Note:
- This version is for RSP1 instead of RAP1A.
- Antenna and USB cable are not included in the package.
- BiasT is not used to power external LNA.
