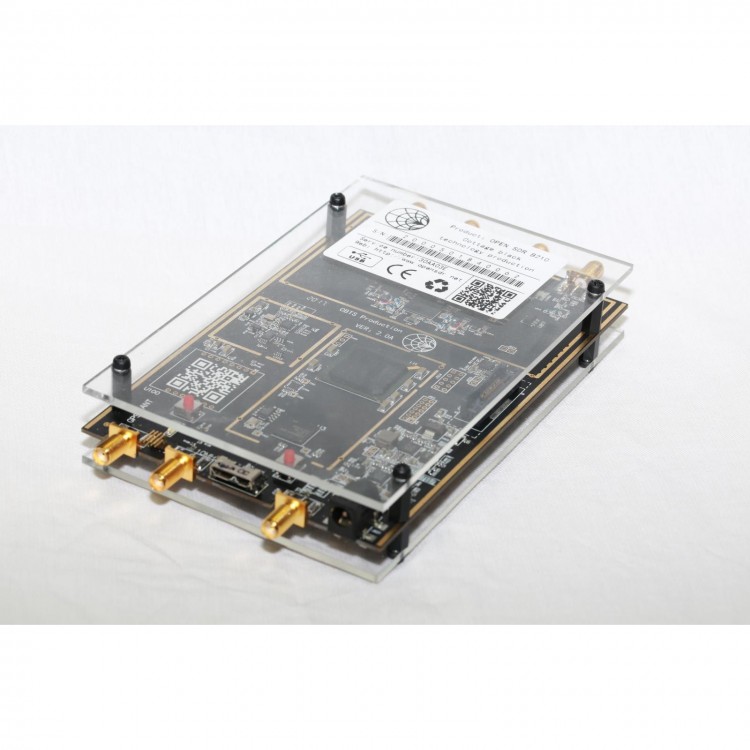

SDR Software Defined Radio 70MH-6GHz SDR 2.0B-R USB3.0 Compatible with USRP B210

SDR Software Defined Radio 70MH-6GHz SDR 2.0B-R USB3.0 Compatible with USRP B210

Description
- The new version of the B210, using special high frequency RF substrate, and the performance and stability of the re inductor are greatly improved,

  the RF performance, compared to the old version of B210, in the acceptance test of CW modulation signal, 6DB SNR, 2G frequency within the receiving sensitivity to compare the old version improves 1.5-2DB.

  The threshold of the receiving sensitivity of the 4G frequency is increased by 2DB. Increase the reception threshold above 4G to improve 1.5DB
- The CW modulation signal is emitted, within 3G, the maximum transmission power is greater than 10DBM, the typical value of 1GHz is 18dbm, and the typical value of 2GHz is 15dBm.

   2-3.5DBM is raised above 4GHz, and the typical maximum value of 4.5GHz is 13dbm. The typical maximum value of 5.5GHz is 11dbm.

- It can be seen that the enhancement of the RF performance is very large, especially the emission performance above 4G is particularly significant.

Features:
-First fully integrated, two-channel USRP device with continuous RF coverage from 70 MHz – 6 GHz ,
- Full duplex, MIMO (2 Tx & 2 Rx) operation with up to 56 MHz of real-time bandwidth (61.44MS/s quadrature)
- Fast and convenient SuperSpeed USB 3.0 connectivity
- GNURadio and OpenBTS support through the open-source USRP Hardware Driver™ (UHD)
- Open and reconfigurable Spartan 6 XC6SLX150 FPGA (for advanced users)
- Early access prototyping platform for the Analog Devices AD9361 RFIC, a fully integrated direct conversion transceiver with mixed signal baseband.

Package Includes:
1 x SDR Board(with Shielding Case)
1 x Acrylic Shell
1 x Nylon Screw Column
1 x USB Cable
1 x Dedicated International Interface Power Supply
1 x OC
