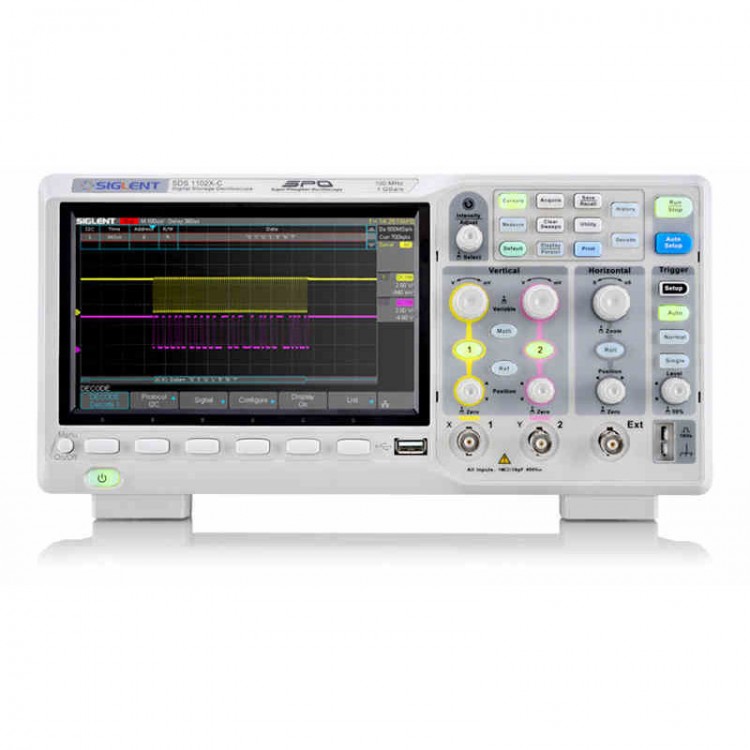

SDS1102X-C 2-Channel 100MHz Bandwidth Super Phosphor Digital Oscilloscope with 7-inch LCD Screen

SDS1102X-C 2-Channel 100MHz Bandwidth Super Phosphor Digital Oscilloscope with 7-inch LCD Screen

Description:
- SDS1000X-C series super phosphor oscilloscope, with two series of 2-channel and 4-channel, including 100MHz and 200MHz bandwidth models; The 2-channel series uses one 1GSa/s ADC chip, while the 4-channel series uses two 1GSa/s ADC chips; When all channels are turned on, the sampling rate for each channel is 500MSa/s and the storage depth is 7Mpts; When channel interleaving occurs, the sampling rate is 1GSa/s and the storage depth reaches 14Mpts; The most commonly used functions adopt a user-friendly one click design.
- Adopting SPO technology, it has excellent signal fidelity: the bottom noise is lower than similar products in the industry, and the minimum range is only 500μV/div; Innovative digital triggering system with high triggering sensitivity and low triggering jitter; The waveform acquisition rate is up to 200000 frames per second (Sequence mode), with 256 levels of brightness and color temperature display; Support rich intelligent triggering and serial bus triggering.
- Standard decoding function, supporting IIC, SPI, UART/RS232, CAN, LIN decoding; Support History mode and Sequence mode.
- Having rich measurement and mathematical operation functions; 1M FFT can obtain very detailed frequency resolution; The measurement of 14M full sampling points ensures the same measurement accuracy and sampling accuracy without distortion, making it a high-performance and economical general-purpose oscilloscope.
- The 4-channel model supports more functions, including event search and navigation, which quickly locate the defined event; Support baud diagram function; Provide a web page for remote management of instruments without the need to install drivers and client software.

Features:
- Channel bandwidth: 100MHz, 200MHz (optional)
- The 2-channel series uses one 1GSa/s ADC chip, while the 4-channel series uses two 1GSa/s ADC chips. When all channels are turned on, the sampling rate for each channel is 500MSa/s, and when channels are interleaved, the sampling rate is 1GSa/s.
- New generation SPO technology.
  The waveform capture rate reaches 50000 frames per second (normal mode); 200000 frames per second (Sequence mode).
  Supports 256 level waveform brightness and color temperature display.
  Storage depth up to 14Mpts.
  Digital trigger system.
- Intelligent triggering: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern.
- Serial bus triggering and decoding, supported protocols for IIC, SPI, UART/RS232, CAN, LIN.
- Video triggered, supporting HDTV.
- Excellent background noise, with voltage levels as low as 500μV/div.
- 10 kinds of one click shortcut operations, supporting Auto Setup, Default, Cursors, Measure, Roll, History, Persist, Clear Sweets, Math, and Print.
- Sequence mode can divide the storage depth into up to 80000 segments, and catch events that meet the conditions in very small dead time segments based on user set triggering conditions.
- History mode can record up to 80000 frames of waveform.
- 38 automatic measurement functions, supporting measurement statistics, Zoom measurement, Gating measurement, Math measurement, History measurement, and Ref measurement.
- 1M FFT operation, 4-channel series supports Peaks, Markers, and FFT point selection.
- The measurement and computation of 14M full sampling points are completed through a co-processor, providing an extremely fast user experience.
- Waveform operation functions (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root).
- User defined Default button parameters to achieve personalized requirements for the Default button.
- The secure erase function deletes all operation records and user data on the machine, suitable for industries with high security levels.
- Hardware implemented high-speed Pass/Fail functionality.
- Scan the amplitude frequency characteristics and phase frequency characteristics, and draw a baud plot (supported by 4-channel series).
- Event search and navigation function (supported by 4-channel series).
- 7-inch TFT-LCD display screen with a resolution of 800 x 480.
- Rich interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass/Fail, Trigger Out.
- Supports a variety of SCPI remote control commands.
- Remote control of web pages.
- Embedded online assistance.

Specification:
- Model: SDS1102X-C
- Analog bandwidth: 100MHz
- Channel number: 2 + EXT
- Sampling rate: 1GSa/s
- Baud refresh rate: 200000wfm/s
- Storage depth: 14Mpts
- Support FFT: 1M
- Product size: 312 x 134 x 150mm
- Net weight: 2.5kg

Package Included:
- 1 x Digital Oscilloscope
- 1 x Power Cable
- 1 x USB Cable
- 2 x Passive Probe
