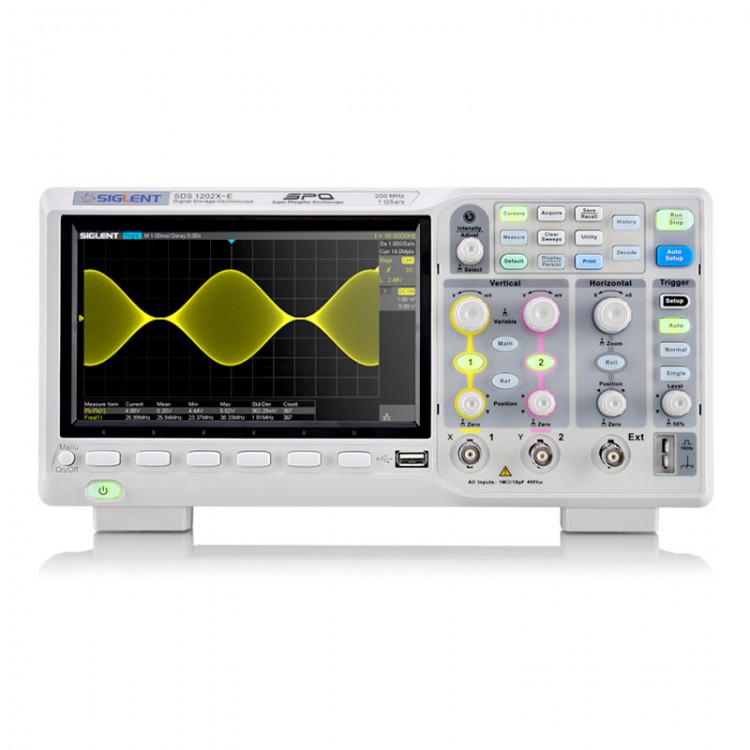

SDS1202X-E 200MHz 2 Channel Oscilloscope SDS1000X-E Series 1GSa/s Digital Phosphor Oscilloscope

SDS1202X-E 200MHz 2 Channel Oscilloscope SDS1000X-E Series 1GSa/s Digital Phosphor Oscilloscope

Product Overview:
Siglent's SDS1000X-E Series Super Phosphor Oscilloscopes are available in 70MHz, 100MHz and 200MHz bandwidths and 2 or 4 analog channels. It has a maximum sample rate of 1GSa/s and a memory depth of 14Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel. SDS1000X-E oscilloscopes employ a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform collection rate of 400,000 frames/sec (sequence mode).

SDS1000X-E digital oscilloscopes also employ a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT's oscilloscopes support multiple powerful triggering modes including serial bus triggering. Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1Mpt FFT math function that gives the SDS1000X-E oscilloscope very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of SIGLENT's SDS1000X-E cannot be matched anywhere else in this price class.

The four channel series support even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels (optional), an external USB powered 25 MHz AWG module (optional), and an embedded application that allows remote control via web browser.

Key Features:
- Optional bandwidth: 70MHz, 100MHz and 200MHz
- Two channel series have one 1GSa/s ADC and four channel series have two 1GSa/s ADCs. When all channels are enabled, each channel has a maximum sample rate of 500MSa/s. When a single channel per ADC is active, it has sample rate of 1GSa/s
- Siglent SPO technology:
  * Waveform collection rates up to 100,000wfm/s (normal mode) and 400,000wfm/s (sequence mode)
  * Supports 256-level intensity grading and color temperature display modes
  * Memory depth up to 14Mpts
  * Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout) and Pattern
- Serial bus triggering and decoding (Standard), supports protocols IIC, SPI, UART, CAN, LIN
- Video trigger, supports HDTV
- Low background noise with voltage scales from 500 μV/div to 10 V/div
- 10 types of one-button shortcuts, supports Automatic Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, and Zoom and Print
- Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to collect the qualifying event
- History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
- Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
- 1Mpts FFT. Four channel series support Peaks and Markers
- Math and measurement functions use all sampled data points (up to 14Mpts)
- Math functions (FFT, addition, subtraction, multiplication, division, integration, differential and square root)
- Preset key can be customized for user settings or factory "defaults"
- Security Erase mode
- High speed hardware-based Pass/ Fail function
- MSO, 16 digital channels (4CH series only, optional)
- Bode plot, Measuring Power Supply Control Loop Response (4CH series only)
- Search and navigate (4CH series only)
- USB AWG module (4CH series only, optional)
- Web Browser based control (4CH series only)
- Large 7-inch TFT-LCD display with 800*480 resolution
- Multiple interface types: USB Host, USB Device (USB -TMC), LAN, Pass/Fail and Trigger Out
- Supports SCPI remote control commands
- VXI-11+SCPI, Telnet (Port 5024) +SCPI and Socket (Port 5025) +SCPI programming over LAN
- Supports multi-language display and embedded online help
- Supports label (4CH series only)
- Supports counter (4CH series only)
- Supports data logger including Sample Logger and Measurement
- Logger (4CH series only)
- Supports network time protocol (NTP) (4CH series only)

Package Included:
- 1 x Main unit
- 1 x Quick start guide
- 1 x Calibration certificate
- 1 x USB data cable
- 1 x Power cable
- 2 x Passive probes (with accessories)
