| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $165.53 | $162.15 | $157.09 | $150.33 | Contact US |
OBD II Simulator ECU Simulator w/ 2.4" TFT Screen (Values Change Automatically & for J1939 Protocol)
$150.33
OBD II Simulator ECU Simulator 2.4" Screen (7 Conventional Protocols & Values Change Automatically)
$136.73
J1939 Simulator OBD II Simulator OBD2 ECU Simulator w/ 2.4" TFT Screen only Supports J1939 Protocol
$111.47

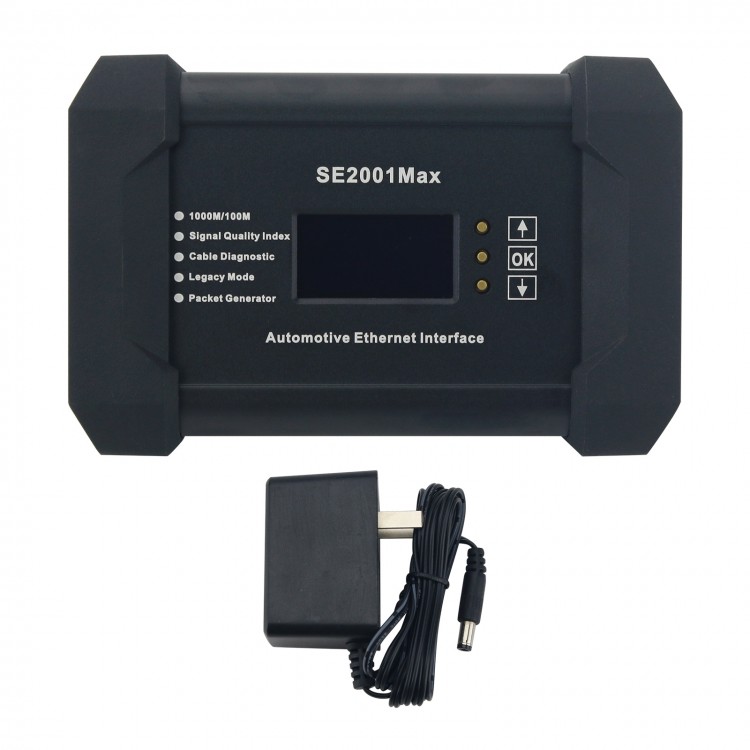

SE2001Max Automotive Ethernet Interface with USB Type-C Port Supporting Power Supply & Communication
Features:
- Imported multi-functional intelligent diagnosis physical layer chip
- Supports regular T1 connection communication function. Supports advanced features such as signal quality testing, harness diagnosis, and actively transmitting packets
- Automotive-grade connectors: Automotive-specific connectors for Rosenberger H-MTD and TE MATEnet are used
- Provides 3 power interfaces (when it is being used, only one of them can be used: ① Type-C: supports power supply and communication, more than 5V 0.5A can meet the demand. SE2001Max supports USB communication; ② DC interface: supports 5~32V and compatible with vehicle power supply, which is common for cars and trucks; ③ 3.81mm-2P: Industrial-grade power supply interface supports 5~32V and suitable for environments that require reliable power supply, such as in the car
- Product dimensions: 122.8mm x 82mm x 43.6mm/4.8" x 3.2" x 1.7"
- Converter weight: Approx. 250g/0.6lb
- Power consumption: At 25°C, the power consumption is about 2.1W in 1000M mode and 1.2W in 100M mode
Package Included:
- 1 x SE2001Max Automotive Ethernet Converter
Packaging Details:
- Weight: 0.5kg
