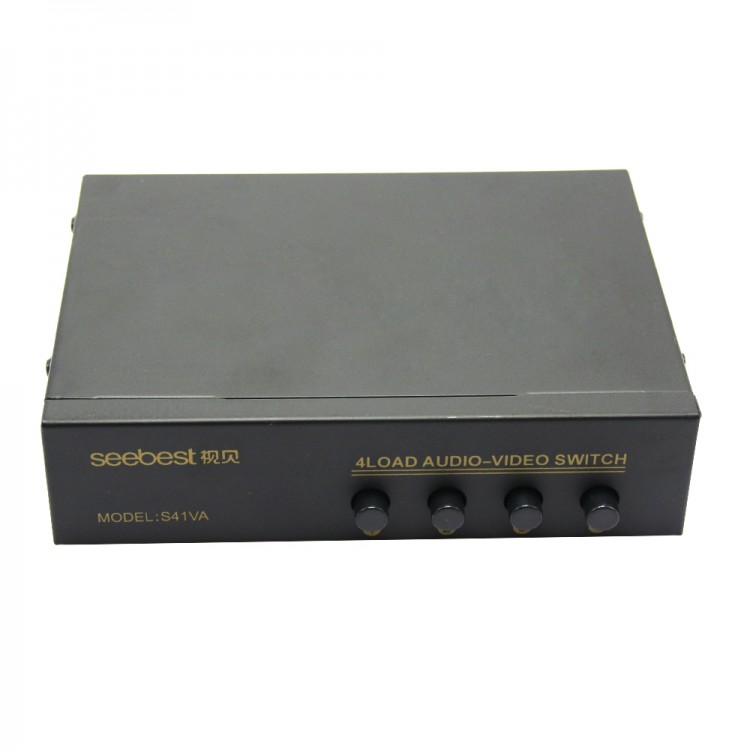

Seebest 4 in 1 SB-S41VA Video & Audio Switcher V/A Switcher Y-Pb-Pr Switch

Seebest 4 in 1 SB-S41VA Video & Audio Switcher V/A Switcher Y-Pb-Pr Switch

Features:
- high isolation, shielding, good, strong anti-jamming; using high quality components and advanced circuit design technology.
- Application: Suitable for families, hotels, karaoke bars, shopping malls, schools and so on; particularly suitable for the present more than one family or multi-way audio and video equipment to switch the source switch.

Model: SB-S41VA
- Specifications: Four audio and video input, one audio and video output; can be used as four-way audio into the audio out.
- Size: 166 * 120 * 41mm

Specification:
  1, Audio: Rated input signal level and impedance 2V (RMS) / 47K?
             Rated output signal level and impedance 2V (RMS) / 47K?
             Frequency 10Hz-20Hz, 0dB
             Enter the 4-way (left and right channels), output 1 channel (left and right channels)
   2, Video: Rated input signal level and impedance VS0.8-1.0Vp-p/75?
             Rated output signal level and impedance VS0.8-1.0Vp-p/75?
             Bandwidth of 50Hz-5.5MHz
             Input 4, Output 1
