| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $21.33 | $20.90 | $20.25 | $19.38 | Contact US |

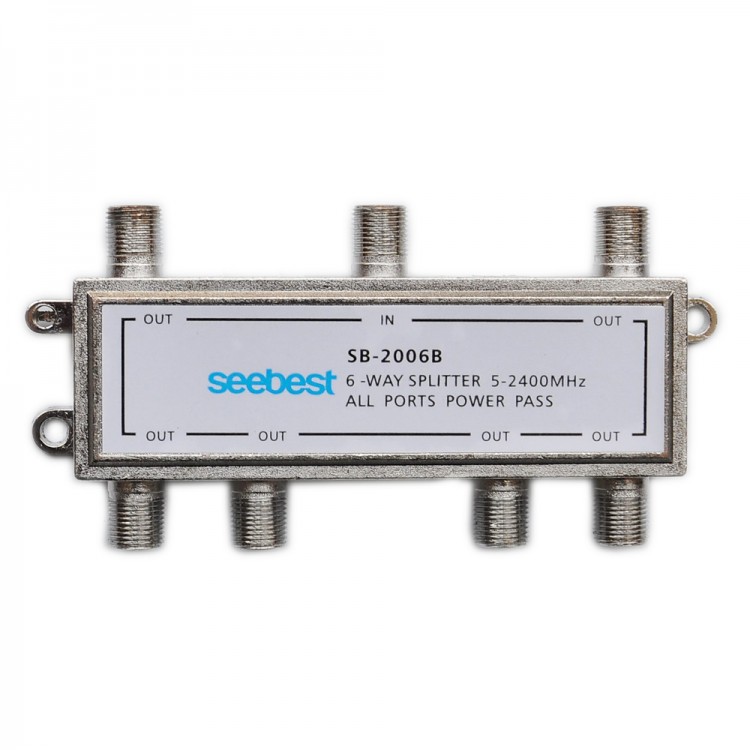

Seebest SB-2006B 6 Way Splitter For Satellite Antenna Signal Cable TV Signal 5-2300MHz All Ports Power Pass 2-Pack
Specifications:
- Model No.: SB-2006B
- 6-way satellite splitter
- Use this 6-way splitter to divide a satellite or TV antenna signal to feed six devices, such as a TV, VCR or PVR (personal video recorder). Or, combine signals for transmission on a single cable
- Satellite accessories,6 WAY Satellite splitter
- 5-2400MHz
- Zinc die-cast housing with nickel plated
- Low insertion loss
- Satellite accessories
Features:
1. Zinc die-cast housing with nickel plated
2. 75ohm, British system F-type connector
3. Low insertion loss, high isolation
4. Max. passing current: 0.5A, DC 24V
5. For SATV/CATV
6. Dimension: 116×57×18mm
| Parameters | Bandwidth(MHz) | Insertion loss(db) | Mutual isolation(db) | Return loss(db) |
| SB-2006B | 5-40 | ≤13 | ≥22 | ≥9 |
| 40-1000 | ≤13.5 | ≥22 | ≥10 | |
| 1000-1750 | ≤13.5 | ≥22 | ≥12 | |
| 1750-2050 | ≤16.5 | ≥20 | ≥10 | |
| 2050-2400 | ≤18.5 | ≥20 | ≥10 |
Package Included:
- 2 x Seebest SB-2006B 6 Way Splitter
