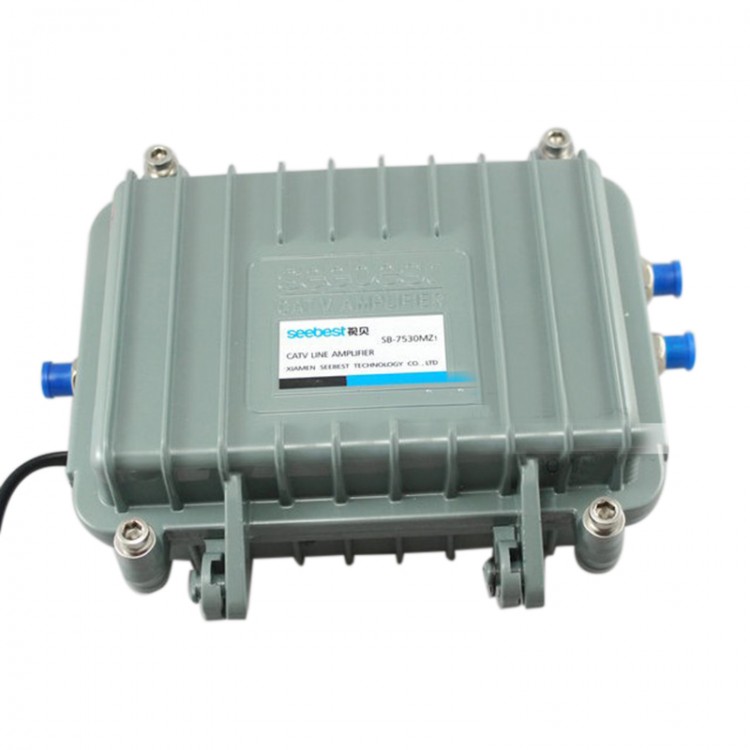

Seebest SB-7530MZ1 Outdoor Amplifier CATV Trunk Signal Amplifier Satellite TV Receiver Signal Amp
Specifications:
- SB-7530MZ1 is a CATV trunk signal amplifier applied in outdoor signal distribution system. It can compensate
signal losses caused by long distance transmission and high temperature.
- CATV trunk amplifier
- Incorporated in domestic module
- Frequency range(MHz): 45~750
- Nominal gain(dB): 30
Features:
1. Suitable for trunk or branch amplification in CATV systems
2. Adopting small module current design,low noise,high output level
3. Gain and slop adjustment in big range high precision
4. Aluminium die-casting housing,water-proof, dustproof,good shielding
Key Parameters:
- Frequency range(MHz): 45~750
- Nominal gain(dB): 30
- Flatness in band(dB): ±0.75
- Max.output level(dBμV): 118
- Norminal input level(dBμV): 72
- Gain adjustment range(dB): 0~20
- Slop adjustment range(dB): 0~18
- Noise factor(dB): ≤7
- Testing port(dB): -10
- Return loss(dB): ≥12
- Thunderstroke immunity(KV): 5(10/700μS)
- Power supply: AC40V~60 V or AC220V±10%50Hz
- Power consumption(W): 10
- Dimension(mm): 223X180X85
Package Included:
- 1 x Seebest SB-7530MZ1 Outdoor Amplifier
