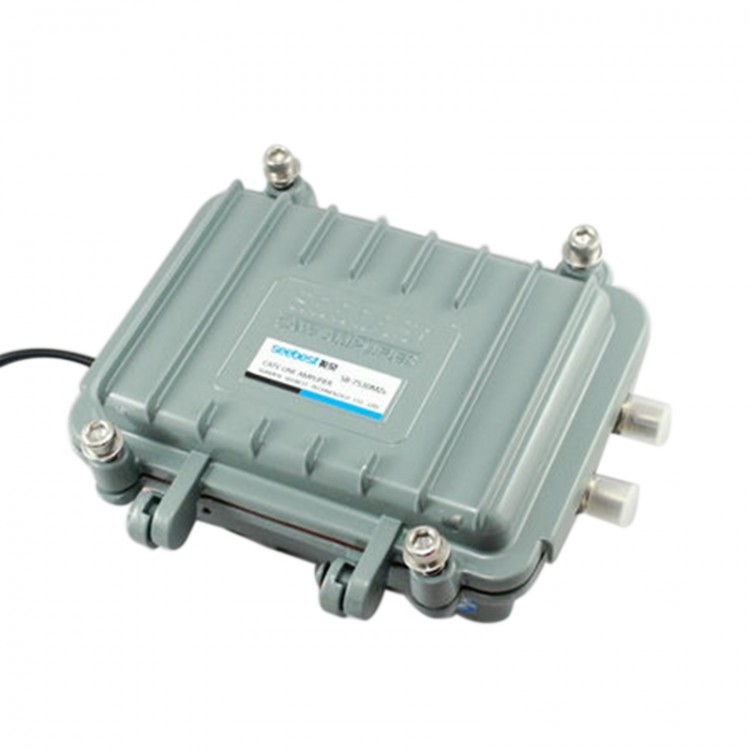

Seebest SB-7530MZ6 AC220V Outdoor CATV Signal Amplifier Trunk CATV Audio Video Line Amp

Seebest SB-7530MZ6 AC220V Outdoor CATV Signal Amplifier Trunk CATV Audio Video Line Amp

Specifications:
- CATV amplifier  Outdoor amplifer,wateproof,suitable for branch or building distribution amplification in CATV systems.
- SB-7530MZ6 is a CATV trunk signal amplifier applied in outdoor signal distribution system. It can compensate
signal losses caused by long distance transmission and high temperature.

Features:
1. Suitable for trunk or branch amplification in CATV systems
2. Adopting mudularization design,low noise,high output level
3. Large,high precision gain and slop control
4. Aluminium die-casting housing,waterproof, dustproof,good shielding quality.

Key Parameters:
- Frequency range(MHz): 45~750
- Nominal gain(dB): 30
- Flatness in band(dB): ±1
- Max.output level(dBμV): 116
- Norminal input level(dBμV): 72
- Gain adjustment range(dB): 0 ~20
- Slop adjustment range(dB): 0 ~18
- Noise factor(dB): ≤7
- Testing port(dB): -10
- Return loss(dB): ≥12
- Thunderstroke immunity(KV): 5(10/700μS)
- Power supply: AC40V~60 V or AC220V±10%50Hz
- Power consumption(W): 5
- Dimension(mm): 170X135X60

Package Included:
- 1 x Seebest SB-7530MZ6 Outdoor CATV Signal Amplifier
