| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $77.83 | $76.24 | $73.86 | $70.68 | Contact US |
Coolmay MX3G-70C-48MT 7" HMI PLC All in One HMI with Built-in PLC (24DI 24DO Transistor Output)
$155.14
Coolmay MX3G-43C-22MT 4.3" HMI PLC All in One HMI with Built-in PLC (12DI 10DO Transistor Output)
$95.71
SEEKU WS7020R 2-in-1 PLC HMI Programmable Logic Controller (Relay Output) & 7" HMI Display 12DI 8DO
$79.42

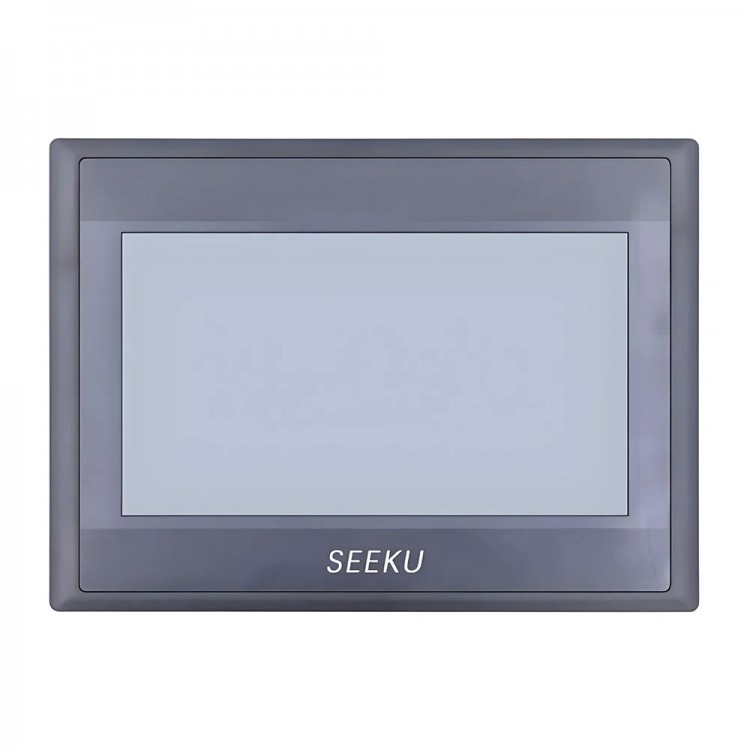

SEEKU WS7020T 2-in-1 PLC HMI PLC Controller (with Transistor Output) & 7" HMI Display 12DI 8DO

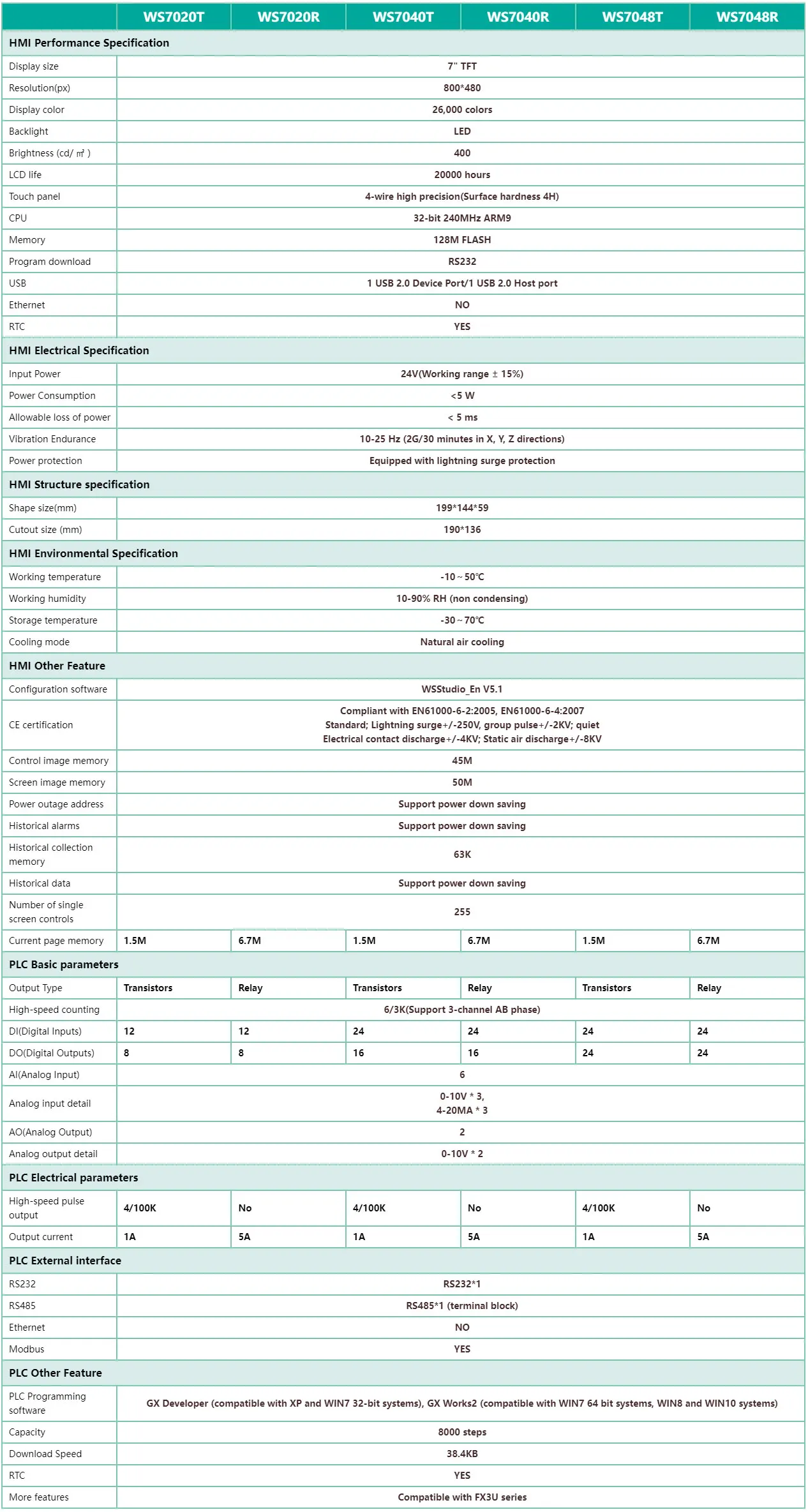

WS7020T:
* 7 inches, 12DI 8DO, transistor outputs, 6 analog inputs (0-10V *3, 4-20MA *3) and 2 analog outputs (0-10V *2), 1 RS232, 1 RS485 (terminal block), and 4 high speed pulse output (100KHz)
Features:
* Compatible with the FX3U series
* PLC supports ladder diagram programming using the software for Mitsubishi GX Developer or GX Works 2, while the HMI is programmed using WSStudio v5.1 software
* Integration of PLC and HMI saves space and reduces wiring
* PLC features a 32-bit high-performance CPU for fast processing speed
* 7-inch HMI with true color display offers sensitive and accurate touch control
* Supports interrupts, power-off memory retention, optional real-time clock, timing lock, and floating-point support
* Memory capacity of 8000 steps
* Pluggable terminals for easy wiring
* Supports both analog input and output
* Supports RS485 Modbus communication
Packing List:
* 1 x PLC HMI
Packaging Details:
* Weight: 0.8kg
