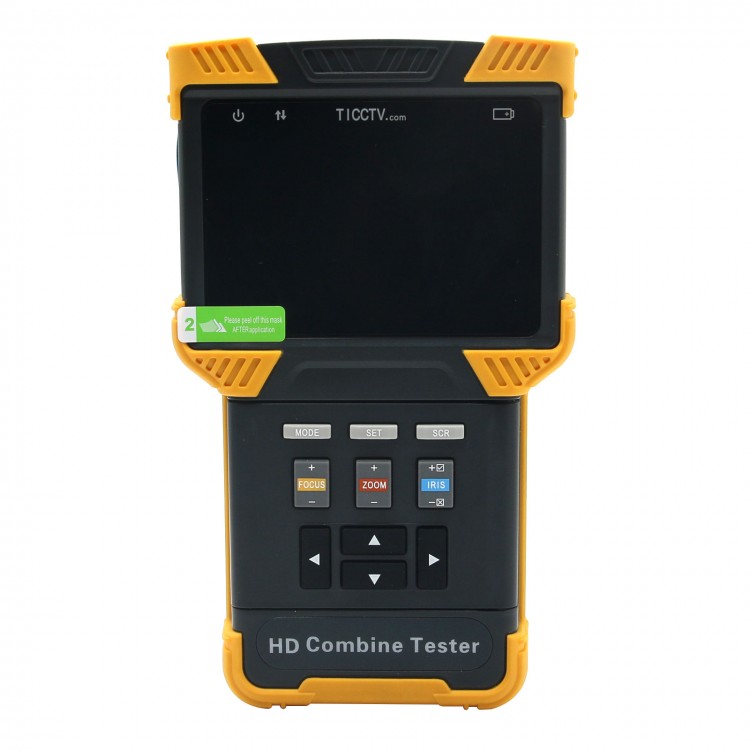

SEESII DT-T60 4.0" HD 1080P Tester LED RTP IPC CCTV IP Analog Camera Test ONVIF PTZ Control Handheld 8GB

SEESII DT-T60 4.0" HD 1080P Tester LED RTP IPC CCTV IP Analog Camera Test ONVIF PTZ Control Handheld 8GB

Description:
- Support Analog SD, HD IPC
- Step by step IPC test, quickly locate failure
- ONVIF highly compatible
- Ergonomic design, operate with single hand.
- Real time operation prompt
- 12V/1A power output
- Dual 100M network port,capable of detecting packet lost, monitoring network flow.
- 4.0 inch all viewing angle display,800X480 resolution, 16.7M color.
- Swing keyboard input, QWERTY.
- Changeable Li-polymer battery, battery working time 5 hours
- With rubber protection layer
- Dual LED torch
- Software upgrade online

Specifications:
Brand: SEESII
Model: DT-T60

Interface
- Network Interface: Dual 10/100M RJ45,support switch mode
- Function Interface: Dual BNC connector(Video input/output),RS485comm,audio input,USB, reset button

Specification:
- IPC test
- Protocol: ONVIF 2.4.1, RTSP, RTP
- Ethernet Test: 10/100MLink test;link speed test;Ethernet loop detect;Ethernet flow monitor;Link quality indicator;
- IP Setting: Manual IP/ DHCP client/ DHCP Server/Multiple DHCP detect/auto DHCP status switching
- IPC Test: Discover, inter-subnet discover,camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video( 8step), save snapshot, record video(original stream), - UDP/TCP switching, packet lost indicator, camera profile setting.
- Hikvision Camera Activate: Automatic detect.

Analog SD test
SD Standard: NTSC, PAL
Video Resolution: D1
Signal Level: 1Vpp
Camera Test: Real time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator.

PTZ controller
Communication Protocol: Hikvision,Pelco-D/P,Samsung,Panasonic,Lilin,Yaan...more than 30 protocols
Baud Rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Other Test
Network Analysis: Sniff, list sub-net,ping
Video Generator: Send PAL/NTSC of various test pattern to output
Record Playback: Local playback, snapshot and video digital zoom, video frame by frame play support

Device
- Display: 4.0inch TFT 800*RGB*480(WVGA) resolution,16.7M color,back light level adjustable
- Internal Storage: 8GB flash
- LED Torch: Two 35lm LED, can turn on individually when device is off.
- Operation: Power button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
- Language: Chinese,English,French,Spanish,Germany,Turkish,Russian
- Keypad Tone: On/Off
- Software Upgrade: Online upgrade

Power
- Battery: Dedicate li-polymer battery, user replaceable, capacity 11Wh
- Power Output: 12V/1A output
- Battery Work Time: Charge 3--4 hours,working time 5 hours

Other
- Working Temperature: -10degree -- +55degree
- Working Humidity: 30% -- 90%
- Device Dimension: 190x113x37mm
- Weight: 0.45kg(device with battery)

 Package:
- 1x Tester Device
- 2x Lanyard
- 1x Tool Bag
- 1x Power Injector
- 1x Network Cable
- 1x BNC Cable
- 1x RS485 Cable
- 1x 12V Power Output Cable
- 1x Audio Cable
- 1x USB Cable
- 1x User Manual
