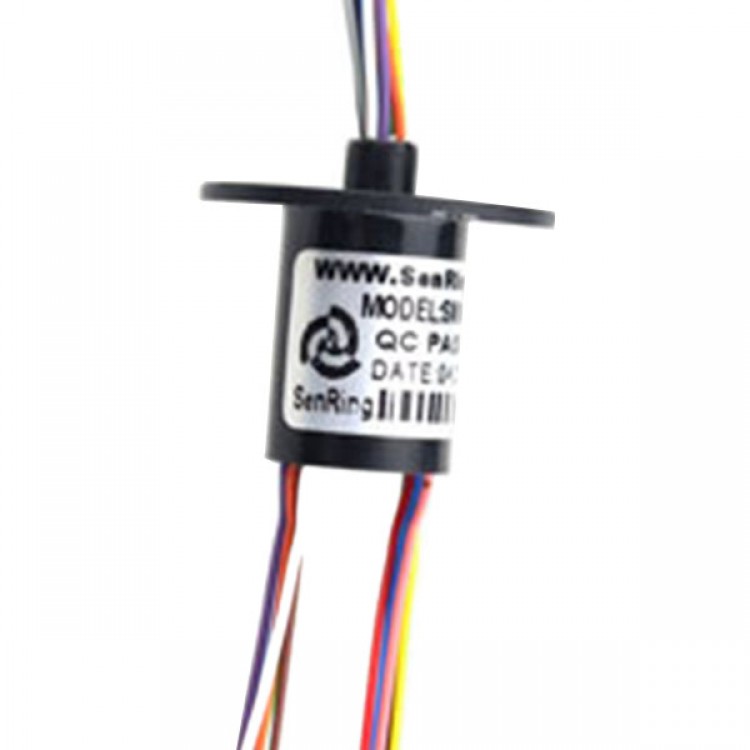

• SenRing Hat Shape Electronic Conductor Slipring 6 Cores External Dia 12mm

SenRing Hat Shape Electronic Conductor Slipring 6 Cores External Dia 12mm

Availability: In stock, usually dispatched in 1 business day

  • Price:$8.56
  • Price in reward points: 86 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.39 $8.22 $7.96 $7.62 Contact US
Quantity:

SenRing Hat Shape Electronic Conductor Slipring 6 Cores External Dia 12mm

Description:

Channel Num 6 Current 2A
Voltage 250 VDC/VAC Max rotation speed 250RPM
Shell material Plastic Torque 0.06N.m+0.03N.m/6 CH
Working hours >20M R Material metal: gold
Noise <10 mohm Touch resistor <20mohm(AWG12#,300mm)
compression strength 500VDC@50Hz

Isolation strength 1000MΩ@600VDC Cable length 250mm
Operating temp -40°C to 85°C Protection level IP51
Shockproof level MIL-SID-810E Working Humidity 10% to 85% RH
Material RoHS authentication CE authentication yes
