Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $13.56 | $13.29 | $12.87 | $12.32 | Contact US |

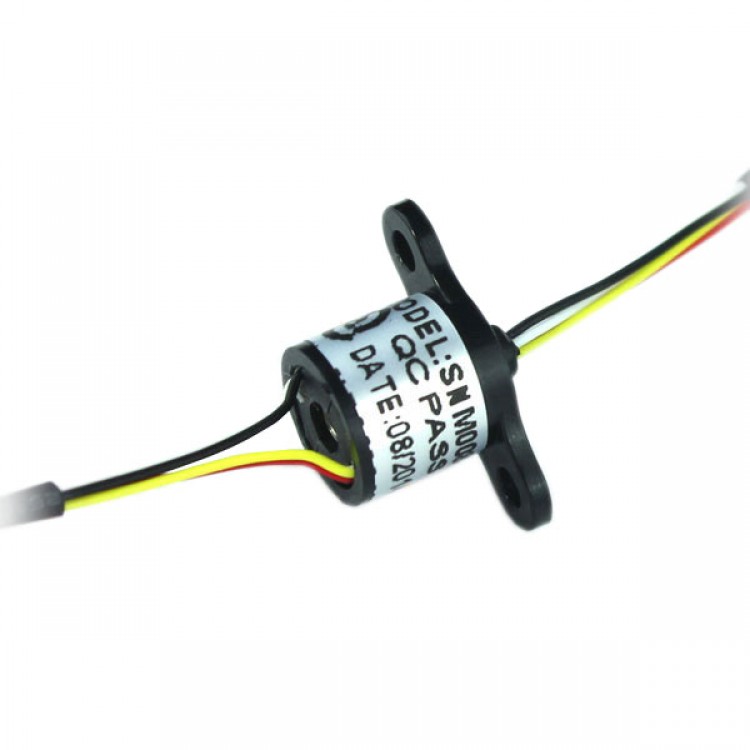

SenRing Slipring Electronic Conductor External Dia 8mm 8 Cores for UAV Drone
Description:
Core | 8 | Current | 1A |
Voltage | 250 VDC/VAC | Max rotation speed | 250RPM |
Shell material | Plastic | Torque | 0.06N.m |
Working hours | >10M R | Material | metal: gold |
Noise | <10 mohm | Touch resistor | <2mohm(AWG12#,300mm) |
compression strength | 500VDC@50Hz |
|
|
Isolation strength | 1000MΩ@600VDC | Cable length | 250mm |
Operating temp | -40°C to 85°C | Protection level | IP51 |
Shockproof level | MIL-SID-810E | Working Humidity | 10% to 85% RH |
Material | RoHS authentication | CE authentication | yes |
