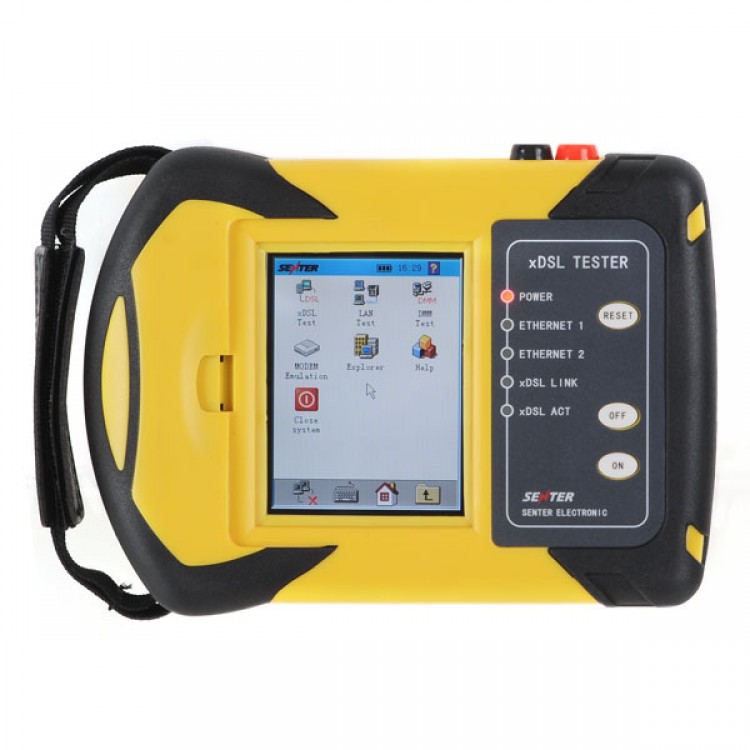

Senter Tester Meter ST330 XDSL Tester LAN DMM Test ADSL ADSL2 ADSL2+ READSL Meter

Senter Tester Meter ST330 XDSL Tester LAN DMM Test ADSL ADSL2 ADSL2+ READSL Meter
Description:
- ST330 is designed for present all kinds of xDSL line including ADSL, ADSL2, ADSL2+, READSL. It not only can test xDSL physical layer parameter, but also can help you to confirm whether your line is proper to provide xDSL service. It also can evaluate your line quality. It also can have PPPoE dial, do IE network page browsing, and emulate user’s PC+ Modem by inside Modem of ST330 to test the connection between user and ISP provider. You can have all kinds of test such as Ping, Ipconfig, Rouge, Tracert after successful dial. ST330 also can emulate the user’s PC to test broadband IP line or have PPPoE dial by user’s Modem to test the connection of IP network and Modem problem or to remove the problem arisen by computer

Features
- CE approval
- Modular platform design
- To identify and adapt the DSL line connect mode automatically
- WINCE display and touching operation for user’s easy operation
- Remote software upgrade
- Link to USB equipment, keyboard, mouse and memory key by USB port
Main Functions
- xDSL Test Physical layer test PPPoE dial and PPPoE dial properties change Network layer test (Ping, Ipconfig, Tracert and Route) IE Webpage browsing test function
- LAN Test LAN port PPPoE Dial and properties change function. Network layer test (Ping, Ipconfig, Tracert and Route). Fixative IP scanning function. Webpage browsing function.
- DMM Test AC/DC voltage Loop resistance Capacitance Insulation
- MODEM Emulation Perform MODEM Emulation function to dial and log on internet to check faults.
- File Management Record browsing File transfer among the tester, memory key and PC
- Help System Software Upgrade Function Set Screen Recalibration

Specification:
- Chip Set: Globespanvirata
- Relevant Standards: ANSI T1.413 issue #2 ITU-T G.992.1 (G.DMT) ITU-T G.992.2 (G.Lite) ITU-T G.992.5 ITU-T G.992.5 Annex L ITU-T G.994.1 (G.hs)
- Physical Layer Test
- ADSL2+ Module:
- Attenuation (dB): 0～63.5
- Noise margin (dB): 0～32
- Up channel speed (Mbps): 0～1.2
- Down channel speed (Mbps): 0～24
- The max test distance: 6.5 km
- DMT sub channel bit number 0～15 State display Signal loss, connection close.
- DSL line up/down maximum rate and capacity ratio DSL line local output power
- DSL line error number (CRC,HEC, FEC,NCD,OCD)
- ADSL2 Module:
- Attenuation (dB): 0～63.5
- Noise margin (dB): 0～32
- Up channel speed (Mbps): 0～1
- Down channel speed (Mbps): 0～8
- DSL line error number (CRC,HEC,FEC,NCD,OCD)
- DSL line local output power DSL line connection mode
- DMM Test DC voltage (V): 0～400 AC voltage (V): 0～400 Loop resistance(Ω): 0～20000 Capacitance (nF): 0～1000 Insulation resistance (MΩ): 0～50
- Other Specifications
- Memory capacity: 20 M
- Display: 240×320 LCD, touch screen,
- Embedded OS, windows interface
- Power Supply System highest power: 7.1W
- Internal: Rechargeable 7.4 V 2700mAH Li-ion battery
- Battery Duration: 8hs (except Modem status)
- Dimensions/Weight: 176mm×130mm×60mm/0.7kg(With battery)
