Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $1,455.16 | $1,425.47 | $1,380.92 | $1,321.53 | Contact US |

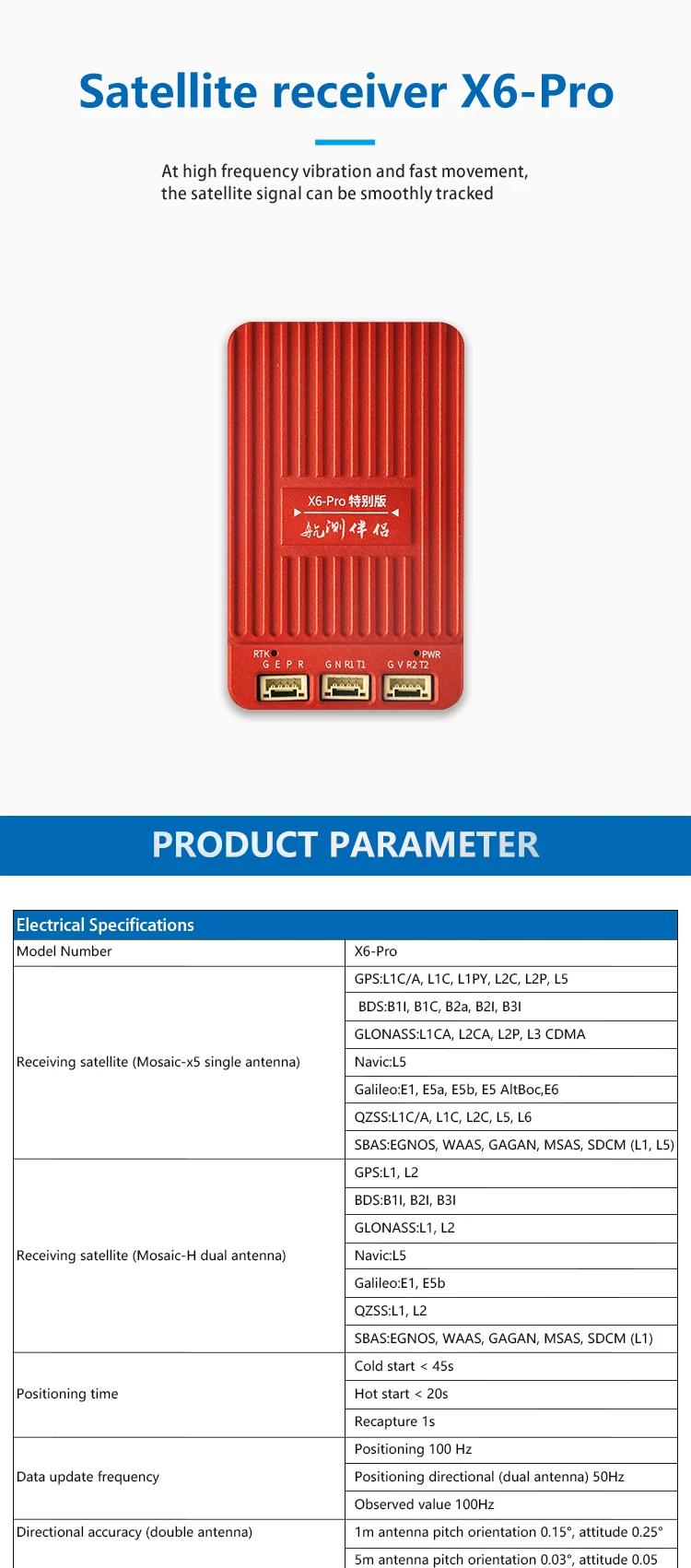

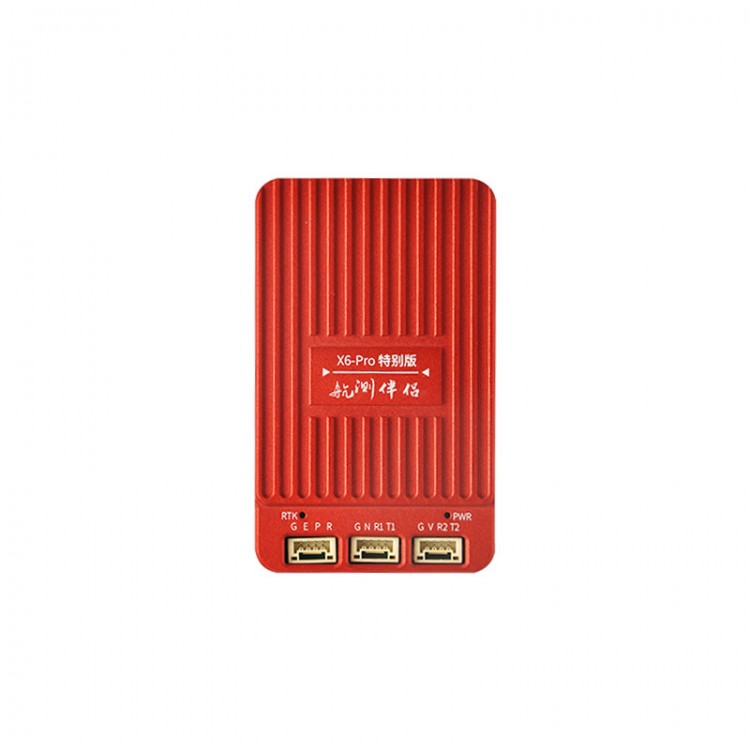

Septentrio Mosaic X6-S1 (Single Antenna) High Precision GNSS Receiver Centimeter-level Positioning GPS/RTK Receiver
Features:
- Using high-performance chips.
- Over 2 million valid correlators.
- 448 hardware channels that can simultaneously track all visible satellite signals.
- Supports a maximum refresh rate of 100Hz, enabling real-time data refresh with ultra-low latency of less than 10 milliseconds, providing users with fast and accurate positioning services.
- Ultra low latency of less than 10 milliseconds.
- During high-frequency vibrations and rapid movements, satellite signals can be smoothly tracked.
- Supports for GPS, GLONASS, BDS, GALILEO, QZSS, NAVIC, SBAS satellites.
- Integrated with TCXO, LNA, and a TF card slot of up to 32GB.

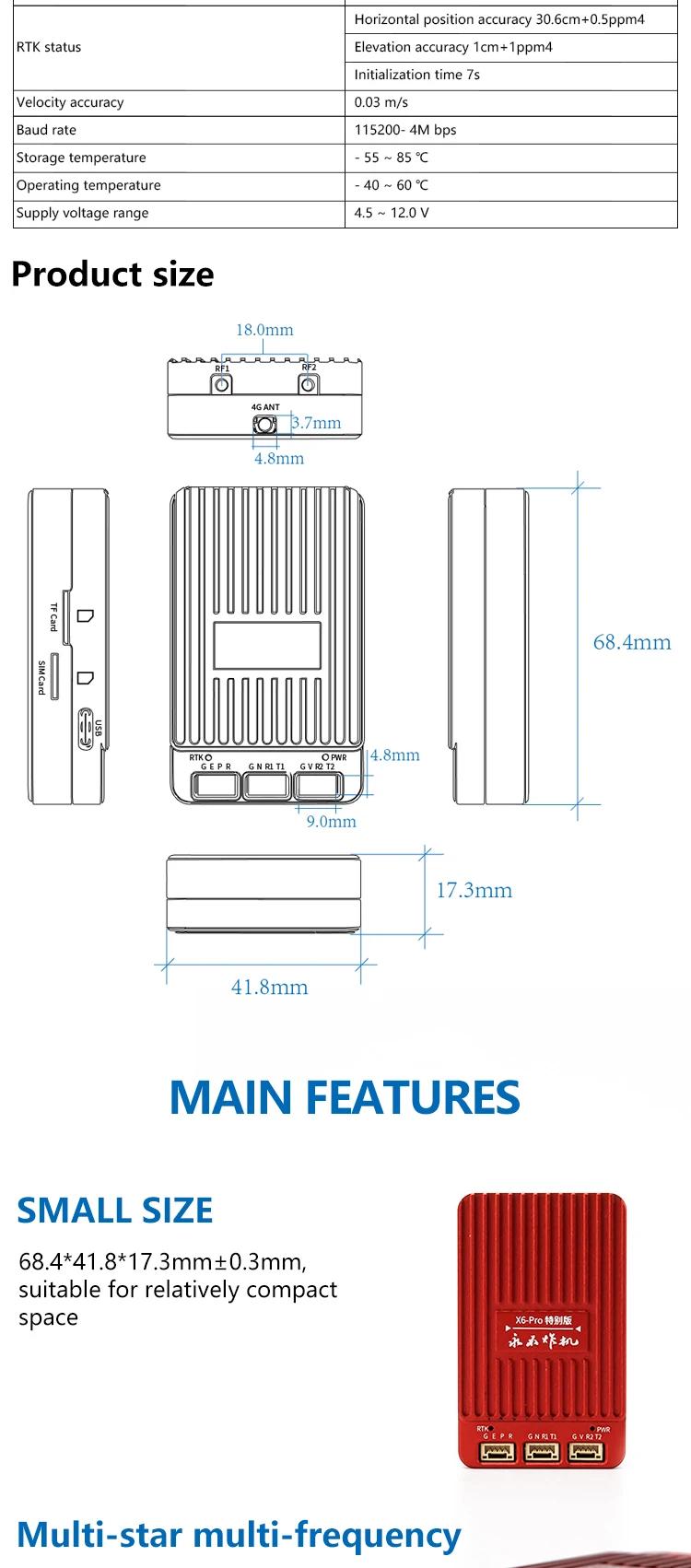

- Compact size (68.4 x 41.8 x 17.3MM ± 0.3MM), suitable for relatively compact spaces.
- Support for standard NMEA 0183, SBF, RINEX, RTCM, CMR/CMR+.

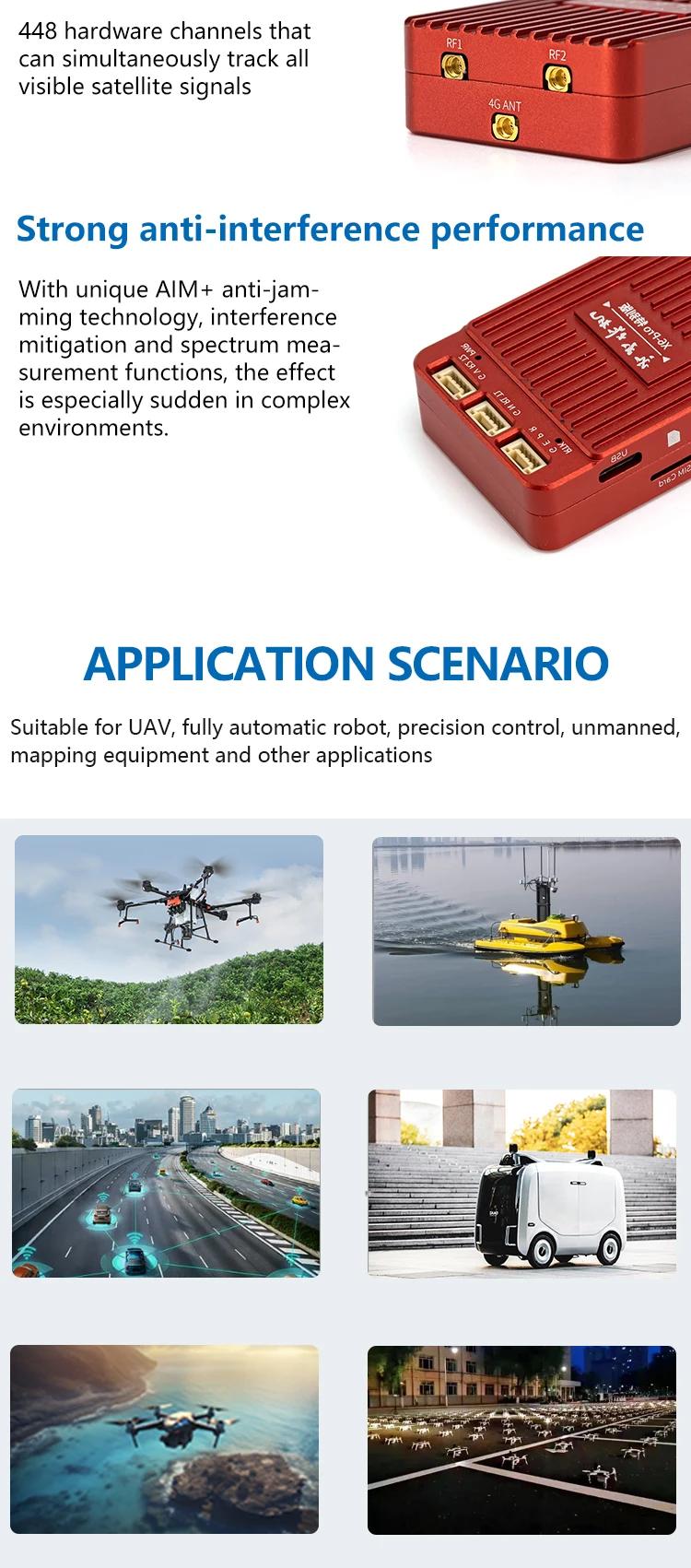

- AIM+ interference monitoring and suppression
- IONO+ ionospheric scintillation suppression
- LOCK+ excellent tracking robustness
- APME+ multi-path suppression technology
- RAIM+ receiver autonomous integrity monitoring
- Equipped with interference indicator, interference mitigation, and spectrum measurement functions.
- Supports high-precision positioning and heading output, with an error of 0.2 degrees.
- Support GNSS navigation
- Support network connection
- Built-in 4G module, embedded with RTK account
- Support for OSNMA anti spoofing
Package Included:
- 1 x GNSS Receiver
