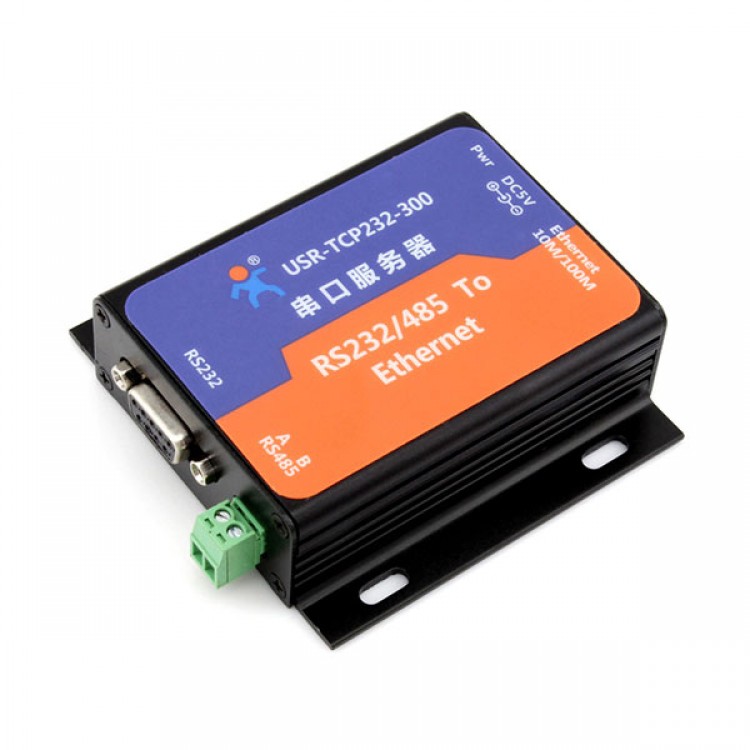

Serial Device Server RS232 RS485 To Ethernet TCP IP Converter USR-TCP232-300

Serial Device Server RS232 RS485 To Ethernet TCP IP Converter USR-TCP232-300

Products:
- USR-TCP232-300
- Serial Device Server - RS232/RS485 to Ethernet converter
- Serial Device Server RS232/RS485 to Ethernet converter is an Equipment for convert TCP or UDP socket data to RS232 or RS485, easy to use,
low power, 32 bits arm on board, high speed , high Stability.
- This is a multifunctional embedded Ethernet serial data conversion device that integrates a TCP / IP protocol stack, the user can easily use it to
network functionality of embedded devices, upgrade the existing serial devices into a network function, saving human and material resources and
development time, make the product faster to market, enhance their competitiveness.
- Can work at TCP Server, TCP Client, UDP and UDP server mode, setup easily via RS232 or RJ45.

Features:
- 100M high speed Ethernet card, 10/100M auto detect interface;
- support AUTO MDI/MDIX, Can use a crossover cable or parallel cable connection;
- RS232 bound rate can set up from 300 to 256000
- RS485 bound rate can set up from 300 to 115200Work mode TCP Server, TCP Client, UDP, UDP Server
- Virtual serial port supported;across the gateway, across switches, routers
- Can work in LAN, also can work on the Internet (external network)
- Working port, destination IP address and port can be easily set up;
- Automatically connection to ensure a reliable network to establish the TCP connection;
- Transmission distance:
RS232,15 meters; RS485,  1000 meters, cable 200 meters (after the switches together through the Internet, no distance limit)

Features:
- 32 bits ARM CPU inside;
- LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
- RS232 x 1: TXD RXD GND;
- RS485 x 1: A (Data+) B (Data-); 120 Ohms Termination Resistance on board.
- network protocol: ETHERNET ARP IP UDP TCP ICMP;
- Software tool: configuration software, TCP/UDP test soft, RS232 debug soft.
- Configuration method: RS232 or via Ethernet, free software available.
- Power : DC 5V / 500mA
- Size (L×W×H): 90×83×25(mm)
- Operating temperature: -25~75°C.
- Save the environment: -40~85°C, 5~95%RH.

Applications:
- Serial device server module for connecting serial industrial automation equipment such as PLC,
sensors, meters, motors, drives, bar code readers and displays and design.
- Serial server module is widely used in attendance, access control systems, Canteen machines, POS systems,
 building control, fire control, the banking system, engine room monitoring, UPS monitoring, power, oil, environmental monitoring,
industrial applications and other areas all need to serial devices Data network management where you can use a serial device server solution.
