Introduction

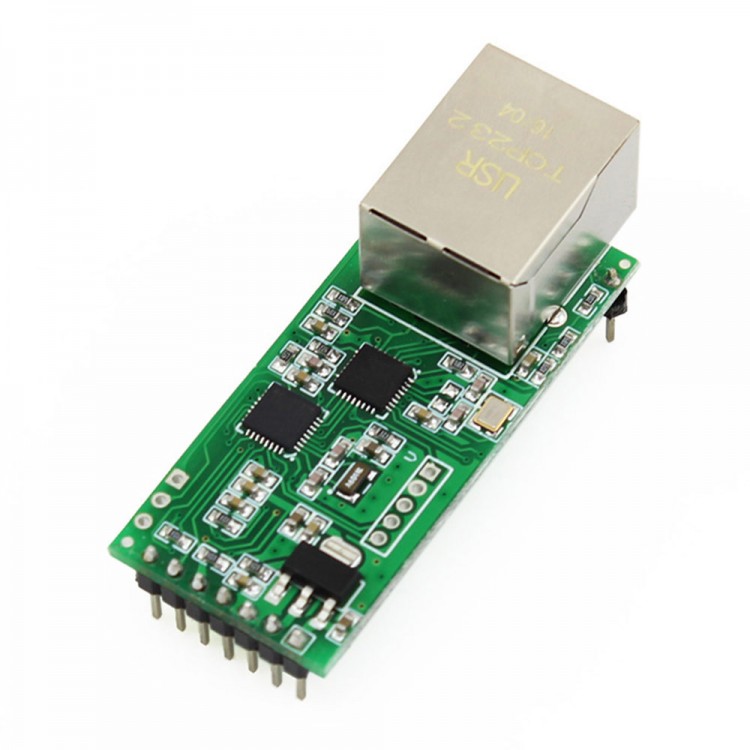

USR-TCP232-T2 is a tiny size serial Ethernet module which can realize data bidirectional transparent transmission between TTL and RJ45 Port. It can also be applied in RS232/ RS485 by level shift circuit.USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed and high efficiency.

Features
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Support DNS function
- Set parameters through webpage and serial AT command
- Upgrade firmware via network
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
- Support virtual serial port and provide corresponding software USR-VCOM
- Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
- User-defined registration package mechanism, check connection status and use as custom packet header
- Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
- The global unique MAC address bought from IEEE, user can define MAC address
- Restore factory default
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
- Support customization

Parameter
- Input Voltage: DC 3.3V/5V
- Current: 150mA
- Size: 55 x 22.6 x 23.1 mm
- Operating Temp:  -25 ~ 75°C
- Storage Temp: -40 ~ 105°C, 5 ~ 95% RH
- Interface: TTL UART

Package List:
- 1 x Module
