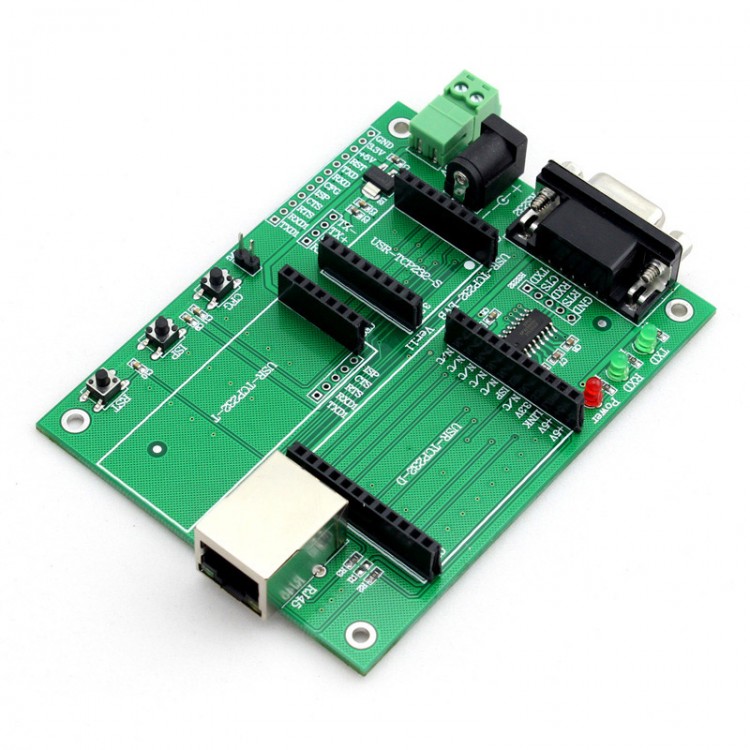

Serial Port to Ethernet Test Board Network to Serial Port Module RJ45 to TTL Network Port TCP232-T2

Serial Port to Ethernet Test Board Network to Serial Port Module RJ45 to TTL Network Port TCP232-T2

Hardware Parameters:
Working voltage: VCC: 3.0~3.6V, VDD: 5.0~7.0V
Working current: 150mA@5V/3.3V
Ethernet port specifications: RJ45, 10/100Mbps, AC-to-direct adaptive
Serial port baud rate: 600-460.8K (bps)
Serial port standard: TTL-3.3V level

Software Parameters:
Network protocol: IP, TCP/UDP, ARP, ICMP, IPV4
IP acquisition method: static IP, DHCP
Domain name resolution: support
User configuration: software configuration, web page configuration, AT command configuration
Simple transparent transmission method: TCP Server/TCP Client, UDP Server/UDP Client
Class RFC2217: support
HTTPD Client: support
TCP Server connection: supports up to 16 channels TCP connections (customizable)
Network cache: transmitting: 6Kbyte; receiving: 4Kbyte
Serial buffer: receive: 800byte
Average transmission delay: <10ms
Supporting software: virtual serial port, transparent cloud, parameter setting software
Packing mechanism: 4 bytes packing time, 400 bytes packing length

Other Parameters:
Certification: CE, FCC
Size: 50.5 x22.6 x 15 (L*W*H)
Working temperature: -25~75℃
Storage temperature: -40~105℃
Working humidity: 5%~95% RH (no condensation)
Storage humidity: 5%~95% RH (no condensation)
Packing: electrostatic foam

Application:
-The serial interface server is designed to connect industrial automation serial devices such as PLCs, sensors, meters, motors, drives, bar code readers and displays.
-The serial port server is widely used in the fields of attendance, access control system, P0S system, building control, fire control, banking system, room monitoring, UPS monitoring, electricity, oil field, environmental monitoring, industrial application and so on.

Package List:
1 x Test Board
