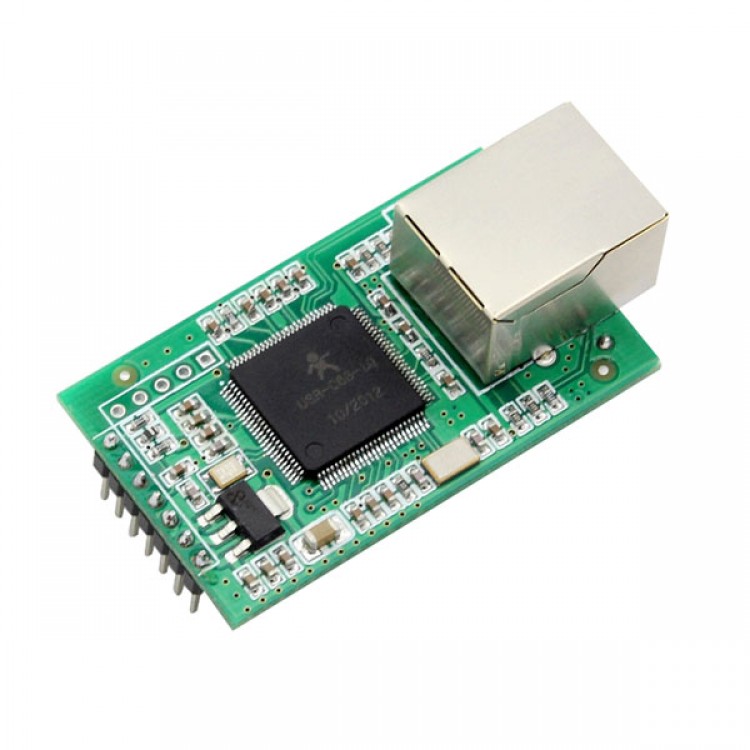

Serial RS232 RS485 To Ethernet TTL Level DHCP Web USR-TCP232-E Good Quality

Serial RS232 RS485 To Ethernet TTL Level DHCP Web USR-TCP232-E Good Quality

Features:
- Cortex-M3 core, industrial-grade operating temperature range, carefully optimized LWIP protocol stack, stable and reliable.
- Two serial ports can be independently set the port and work, work independently, to support the RTS / CTS hardware flow control.
- Auto-MDI/MIDX function, cross straight cable connected to any connection, automatic switching.
- Distinguish port number with serial.
-  Compatible with USR-TCP232-T-pin.
- Supports TCP Server, TCP Client, UDP, UDPServer, HTTPD to Client is a variety of operating modes.
- Support for virtual serial port works, and provide the appropriate software.
- The highest serial port baud rate support 230400.
- Power input 5V 3.3V , simply choose one of them.
- Insert the needle package, small footprint, easy embedded application ? TTL serial level, 3.3V standard, compatible with 5V level, 5V single-chip IO can be connected directly.
- Support for DHCP to automatically obtain IP, you can query network devices via UDP broadcast protocol.
- Setting the protocol parameter For VIP customers, and functions can be integrated into the user's application software.
- Provide the host computer TCP / IP socket programming examples, VB C Delphi Android IOS.
- Built-in Web pages parameter settings can be customized pages.
- You can set through the UDP mode, set the protocol and set the software source code by yourself.
- The Reload button, a button to restore default settings.
- RJ45 status indicators, RJ45 interface built-in isolation transformer, 2KV isolation.
- Purchased from the IEEE global unique MAC address, user-defined MAC address.
 - Support upgrading process through the network.


Package Included:
 - 1x USR-TCP232-E Serial Server RS232 RS485 To Ethernet TTL Level DHCP Web Module.
