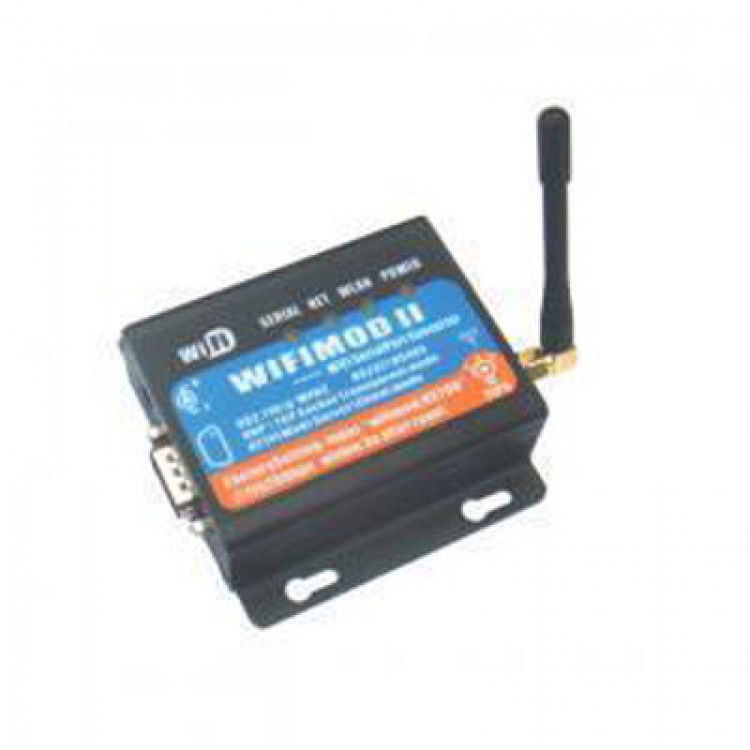

Serial RS232 to Wifi Converter Module and Wifi to RS232 Serial Device Server

Serial RS232 to Wifi Converter Module and Wifi to RS232 Serial Device Server
Product Description
   The converter(WIFI to RS232 or RS232 to WIFI) is a equipment used for serial data to WIFI network conversion and transmission, it can work at TCP Client , UDP, and TCP Server mode for transparent transmission, the converter can also work in web server mode (Sweb) for complex Communication,it is easy to use , Stable and reliable
Features :
- It support AdHoc point to point (no need to use AP), support simple WLAN wireless,   IEEE 802.11b/g,
- Communication via HTTP Post, Special Sweb mode, and strore web in module
- It support for security standards WPA/RSN(WPA2)PSK, WEP64/128;
- support DNS for domain target, Socket work mode: TCP Server, TCP Client , UDP
- Serial band rate is 9600~115200, Data bits and parity can be set
- There is 1M Bytes user flash space for user web page and data
- It support static IP setup , DHCP , AutoIP
- It support browser to upload and download the serial data, Support download user data and documents from serial port, support AJAX
- It can setup all Parameter via HTTP web page, the password for page login for Security.
- The item can work with out wireless router, set up their own networks for other wifi devices (mobile phones or laptops) to access
- The item support the browser's online upgrade, add features and fix Bug
- We can provide examples of procedures TCPIP socket programming and web design SWeb example
　
Characteristics:

- Dimensions: 81mm x 85mm (Without antenna)
- Input Voltage: 4.8v ~ 6V, Typical 5V
- Maximum current: 300MA (54Mbps TX)
- Work Frequency: 2.400---2.494GHZ
- Work channel: 14 Channels
- Receiver sensitivity: 10dBm
- Transmit :14dBm (1/2/5.5/11 Mbps)
           12dBm (6/9/12 Mbps)
Package Content：
- Wifi-to-serial RS232(RS232 to Wifi) server x 1
- serial extension cable (female-female, cross) x 1
- 5V power adapter x 1
- Software and manual  CD x 1
