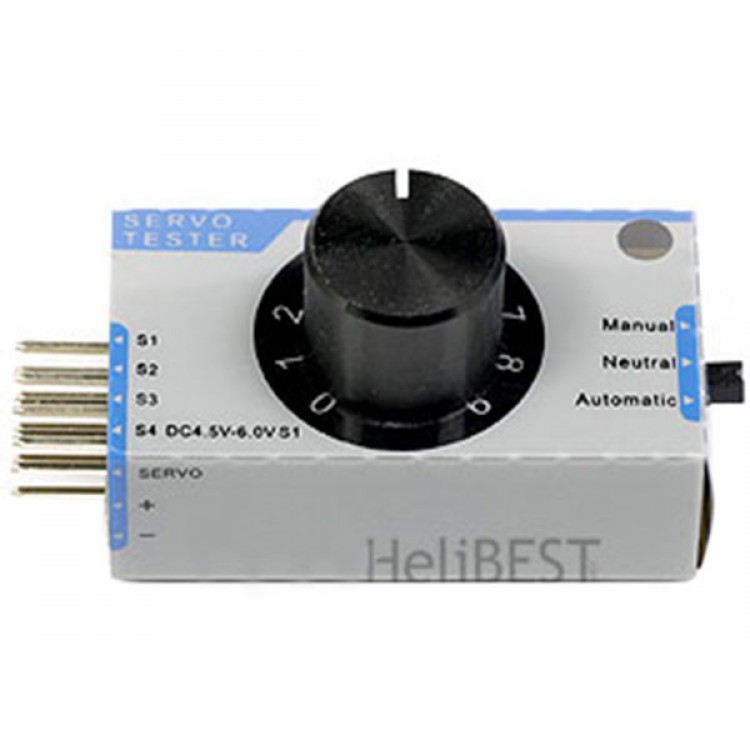

Servo Auto Tester Adjuster Speed Controler ESC Tester for Esky Parts EK2

Product  Description :

- Name:Servo Auto Test Adjuster

- For:ESKY 000504 EK2-0907 RC hobby

- Quantity:1Pc

- 100% Brand New

Features:

- Weight: 8g

- Dimension: 42.5 * 24 * 23.5mm

- Consumption:15mA(Current 5.0V)

- Voltage consumption: DC4.5-5.5V

- Static current:3mA (5.0V) ta=25 C output

- Signal:1.5ms±0.5ms

- Manual pulse width adjustment



Specification:

1.Test device can easily detect  the clearance, jitter and median of all kinds of Servo (server)

2.It can easily connect the ESC and test the working status of the ESC or Motor

3.It can connect three sets of servo or ESC at the same time, use SCM to control with Good stability, high accuracy





Usage:

Power Supply:4-5 pcs of #5 battery,ESC built-in BEC or UBEC TO Provides power to the tester.When you use the ESC with built-in BEC,No additional power supply need,connect the servo or ESC that you want to test to begin testing.



Test Mode:There are hand conditioning pulse, the neutral point output function and automatically adjust the pulse width ,you can  toggle switch to select one of three models to test.when you use manual adjustment ,  the knob can work,you can adjust the Output pulse width or the ESC or control servo Arbitrarily.The Neutral point is used for finding the middle point of the servo.Automatically adjustsment can make the  servo Rotate back and forth.



Notice: when you test the ESC,you can only use the manual mode
