Servo System 57 Two Phases Stepper Motor Stepping Motor Driver Closed Loop Controlling Combo 5A 2N/m High Speed

Servo System 57 Two Phases Stepper Motor Stepping Motor Driver Closed Loop Controlling Combo 5A 2N/m High Speed

Description:
- This is a set of servo control, feedback, dynamic compensation stepper system, can offset diviation motor not stopping at full step position when power on.

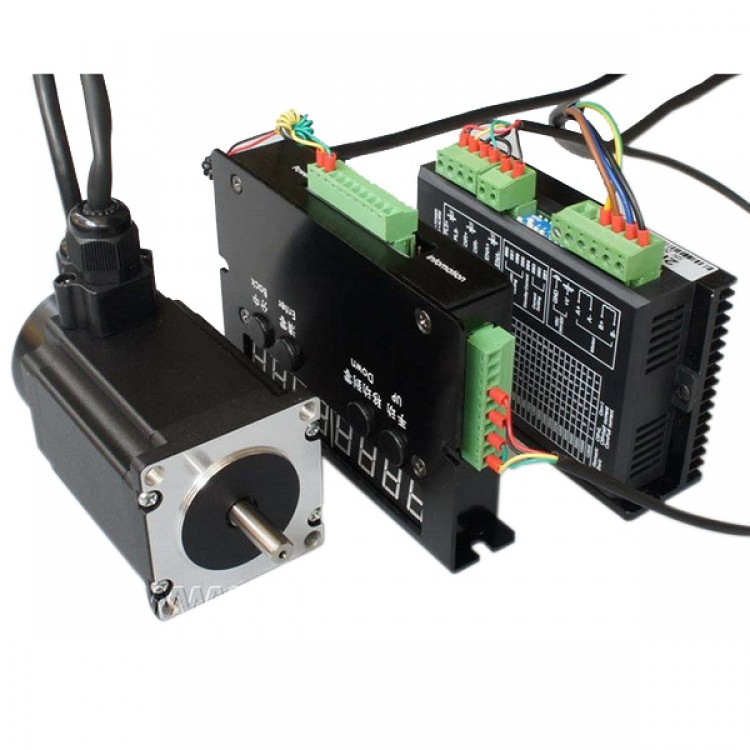

- This package includes encoder stepper motor, stepping closed-loop controller, driver, three pieces
- After connect with line and debug, users can use it by connecting with the power supply and external pulse
- The no-load test can reach at 3000 rpm, under reasonable load, can be more than 1200-1500 r.p.m.above.
- The power of the motor and encoder, default cable shielding line length is 2 meters, if you have different length requirements, please declare and pay the additional line section.
- For convenience installation of the motor, 0.3 meters out of motor line is connnected with aircraft outlet
- Long: 57 x 80high speed
- 4 line, 5A
- Torque: 2N/m, with 400 or 500 OR 1000 wire encoder. Passing through the loop 4 frequency doubling, it can reach at 1600 or 2000 or 4000 pulses. With 2 meters special shielding line and special signal amplification circuit board.
- Driver: model 2M656, DC36-110V, DC25-50V maximum 5.6A (adjustable), high speed, low vibration. There are 2 hex and 5 hex complete subdivision.
