Note: These High Performance Injectors will require ECU Tuning, pls verify the 42lb flow rate meet your requirement.
Product Description:
- These High Impedance fuel injectors are not made by the original equipment manufacturers(OEM)(BOSCH & VDO etc.).They have been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injectors.
- The individual flow characteristics and fuel atomization of above fuel injectors are almost same to or superior to the OEM and will help accelerate response time,save gasoline and improve MPG.
Features:

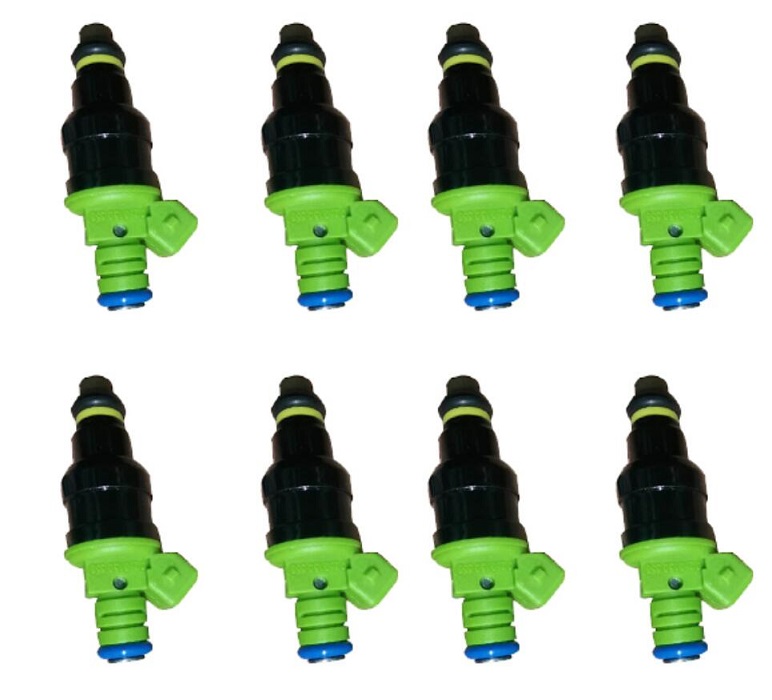

- Quantity: 8 Fuel Injectors
- Condition: 100% BRAND NEW

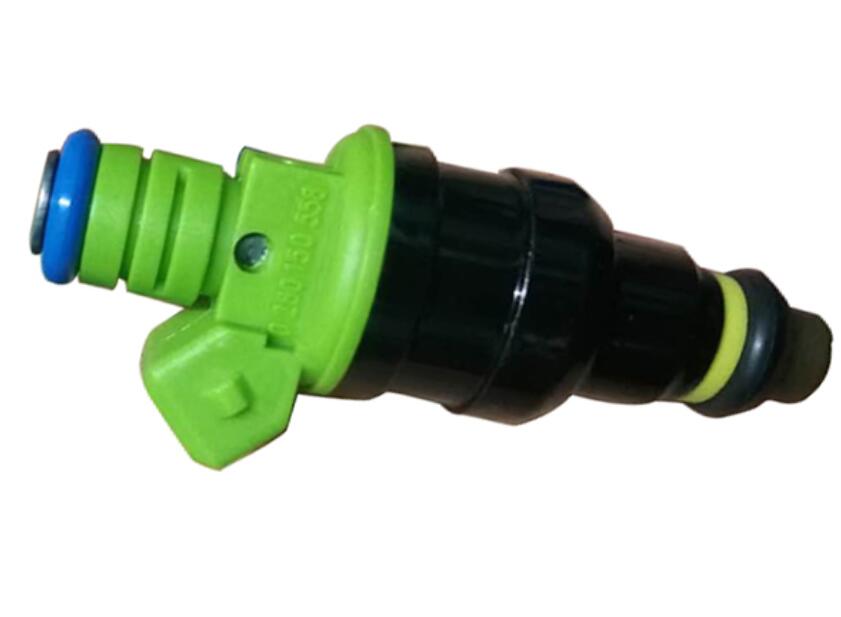

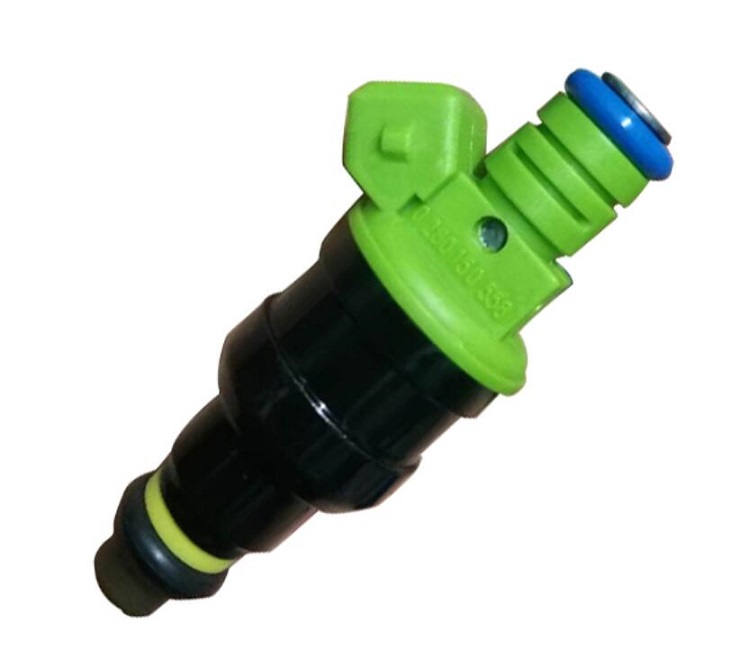

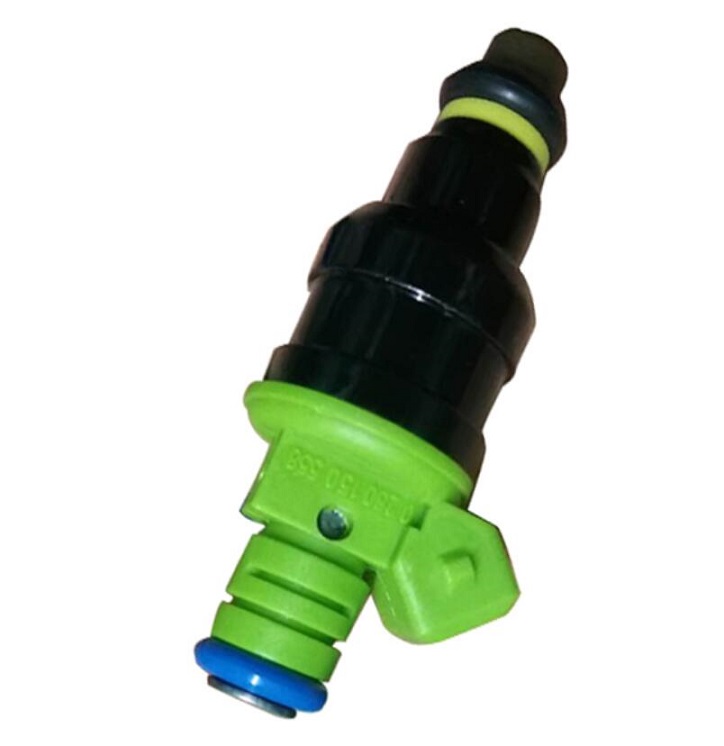

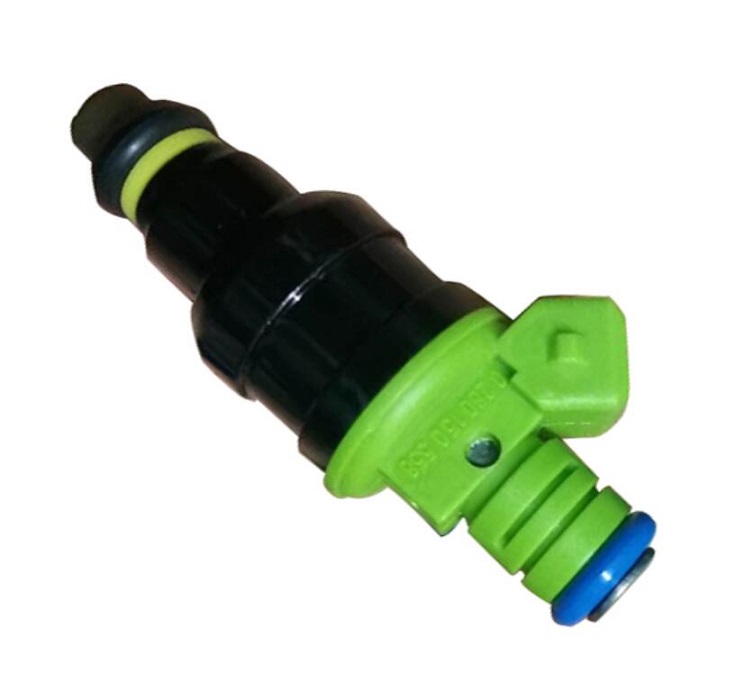

- Design: Bosch GEN III EV1 Style Fuel Injector
- O-Rings Included: Yes,preinstalled
- Injector Design: Metal & composite plastic
- Nozzle Design: 1 hole disc
- Connector Type: EV1
- Filter Design: Basket filter design at inlet
- Spray Pattern: 15 Degree Spray Cone
Specification:
- Coil Resistance: 12 Ohms/High Impedance
- Static Flow Rate: 42 lb/hr = 440 cc/min @ 43.5PSI ( 300kPa )
- Gain: 0.12ms/MG
- Offset: 0.055ms
- Turn on time @ 14VDC: 1.14ms
- Turn off time: 0.85ms @ 300KPa
- Amperage: 1.0 Amps
- Pressure: Min 30PSIG/Max 100PSIG
- Length: 3" (74mm)
- O-Ring Diameter: 14.5mm
Application For Follow Models:
Thes High Impedance( 12 Ohms) injectors will fit all of the following models:
1999-2004 Ford Linghtning
1986-1995 Ford Mustang GT, LX and Cobra 5.0L
1996-2004 Ford Mustang GT
1999/2001 Ford Mustang Cobra (Must change injector plugs)
2003-2004 Ford Munstang Math I (Must change injector plugs)
2003-2004 Ford Mustang Cobra (Must change injector plugs)
1985-2002 Chevrolet Camaro
1985-2004 Chevrolet Corvette
1994-1996 Chevrolet Impala
1985-2002 Pontiac Firebird
2004-2006 Pontiac GTO
1985-2002 Pontiac TransAm
2010-2013 Chevrolet Camaro (Must change injector plugs)
2005-2013 Chevrolet Corvette (Must change injector plugs)
Package List:

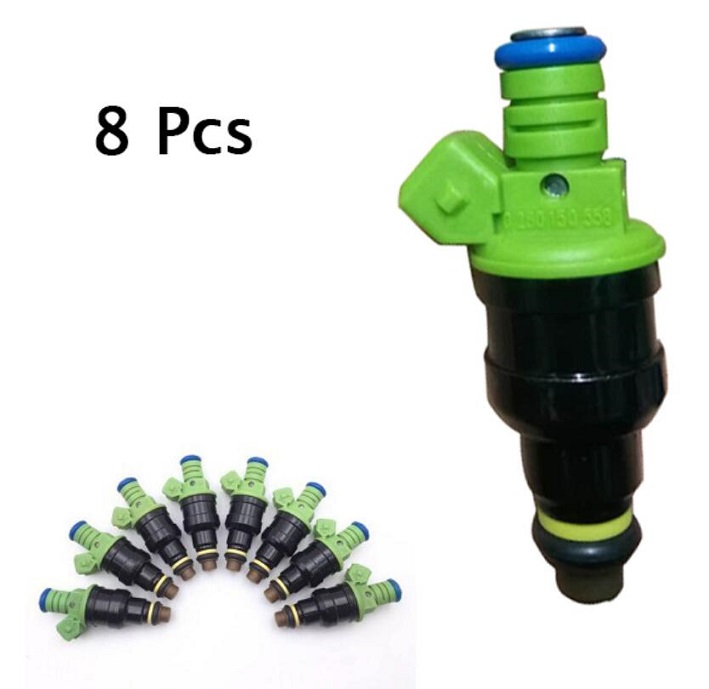

- 8 x 42Ib 440cc EV1 Fuel Injectors
- 1 x User manual
