SF-103 2-2800MHz Frequency Counter Portable Frequency Meter for Analog/DMR Digital Walkie Talkie

SF-103 2-2800MHz Frequency Counter Portable Frequency Meter for Analog/DMR Digital Walkie Talkie

Features:
- Measure the frequency parameters of a continuous carrier signal walkie-talkie with a signal strength indicator
- A tool for maintainers, wireless enthusiasts to test frequency and signal strength
- Portable frequency counter used to count continuous wave signals from two-way radios
- Cover most frequencies of the walkie talkie you want to measure
- Four buttons makes it easy to use and compact size for easy carrying
- Work by TCXO (Temperature Compensate X'tal (crystal) Oscillator); in the range of -45℃ to 65℃, its accuracy can reach ±2 to ±4ppm
- Include very interesting frequency areas like 2m HAM radio, all VHF and UHF
- DMR radio signal frequency counter.
- GUI battery level

Specifications:
- Frequency range: 2MHz-2800MHz
- CTCSS/DCS decoder (must be 132-173/200-260MHz/400-519MHz)
- Frequency counter digital mode for DMR radio
- Work by TCXO (temperature compensated X'tal (crystal) oscillator) 2-2.5ppm
- Frequency response time: 0.2-0.5sec (CTCSS/CDCSS > 0.5-1sec)
- TFT color display 240 x 320; LCD dim level setting
- Built-in lithium-ion battery
- 4 buttons to control
- Automatic shutdown 1-9 minutes
- Rechargeable battery LED indicator
- Net weight: 113g

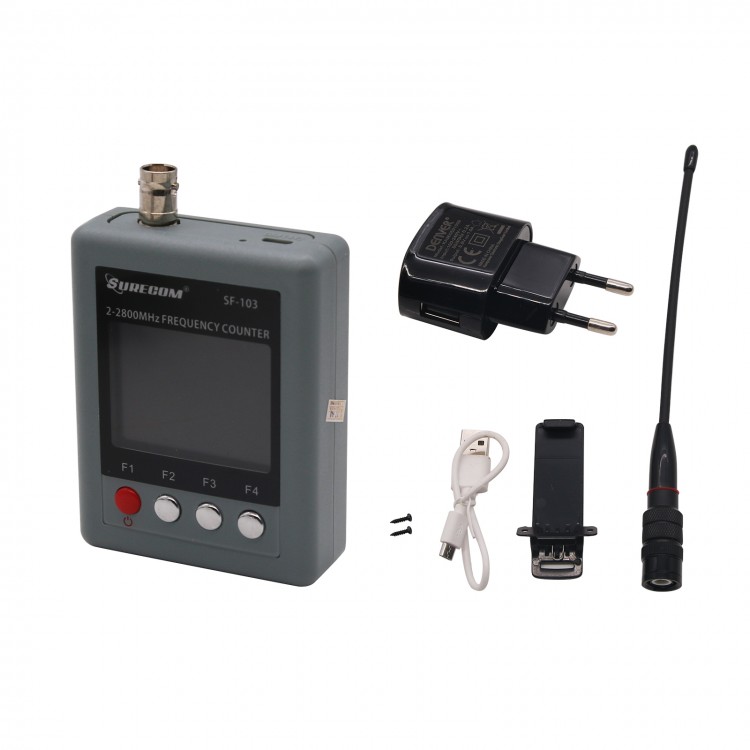

Package Included:
- 1 x SF-103 Frequency Meter
- 1 x VHF UHF Antenna
- 1 x Belt Clip
- 2 x Screws
- 1 x Power Adapter
- 1 x USB Charging Cable
- 1 x Chinese-English User Manual

Attention:
1. Prohibit direct input signal 5Vpp.
2. It is forbidden to directly access the output of the walkie-talkie, which will cause damage to the frequency meter.
