SF-2100C 2 Axis CNC Controller CNC Plasma Controller w/ SF-RF06A Remote Control for Cutting Machines

SF-2100C 2 Axis CNC Controller CNC Plasma Controller w/ SF-RF06A Remote Control for Cutting Machines

Features:
1. SF-2100C cutting machine CNC controller is suitable for all kinds of flame, plasma, high-pressure water jet, laser cutting machines. It is widely used in industries such as metal processing, advertising and stone.
2. The system has a highly reliable design and has the ability to resist plasma interference, lightning strike and surge. Practical flame/plasma cutting process, automatic corner speed control during plasma processing, and height regulator control. Remote operation is possible with a wireless remote control.
3. It has the function of cutting compensation, and detects whether the compensation in the program is reasonable, and makes corresponding reports for users to choose;
4. Break-point recovery: automatic power-off recovery function and break-point automatic memory;
5. Arbitrary selection and perforation point processing function;
6. It has the epitaxial perforation function suitable for thick plates, and the bridging function suitable for thin plates;
7. During rollback, selection, break-point recovery, you can choose the perforation position and other functions, which is very convenient for the user's control. Cutting can be transferred at any time;
8. Using special small line segment processing function, it runs smoothly. It can be widely used in metal cutting, advertising, iron art, etc.;
9. Parts library with 24 kinds of graphics (expandable), including commonly used basic machining parts;
10. Fully compatible with StarCAM nesting software, and compatible with mainstream nesting software such as for IBE (Germany) and FASTCAM;
11. Multi-language operation interface conversion, dynamic graphic display, 1~8 times of graphic enlargement, automatic tracking of moving points. U disk can be used for reading program and timely software upgrade.

Specifications:
1. Processor: using industrial-grade processing chip for ARM;
2. Display: 7" 800*480 color LCD display;
3. Input and output: the system provides 16 photoelectric isolation inputs and 16 photoelectric isolation outputs;
4. Number of linkage axes: 2 axes, which can be expanded to 3 linkage axes;
5. Maximum speed: not less than 24 m/min;
6. Pulse equivalent: flexible adjustment;
7. Storage space: 4G large user program storage capacity and processing program is not limited;
8. Chassis size: 298 x 202 x 65mm/11.7 x 8 x 2.6";
9. Working temperature: 0°C to +40°C; Storage temperature: -20°C to +60°C.

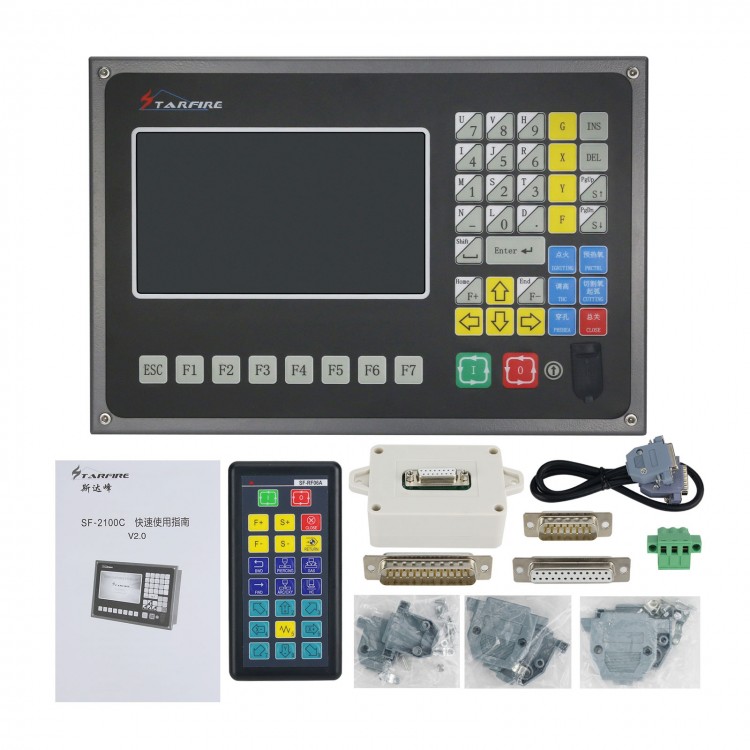

Packaging List:
SF-2100C System:
- 1 x CNC controller
- 1 x 3-pin green power terminal
- 1 x Set of 25-pin input plug with sheath
- 1 x Set of 25-pin output plug with sheath
- 1 x Set of 15-pin plug with sheath
- 1 x User manual

SF-RF06A Remote Control:
- 1 x Wireless remote control
- 1 x Receiver
- 1 x Connecting cable
- 1 x User manual
