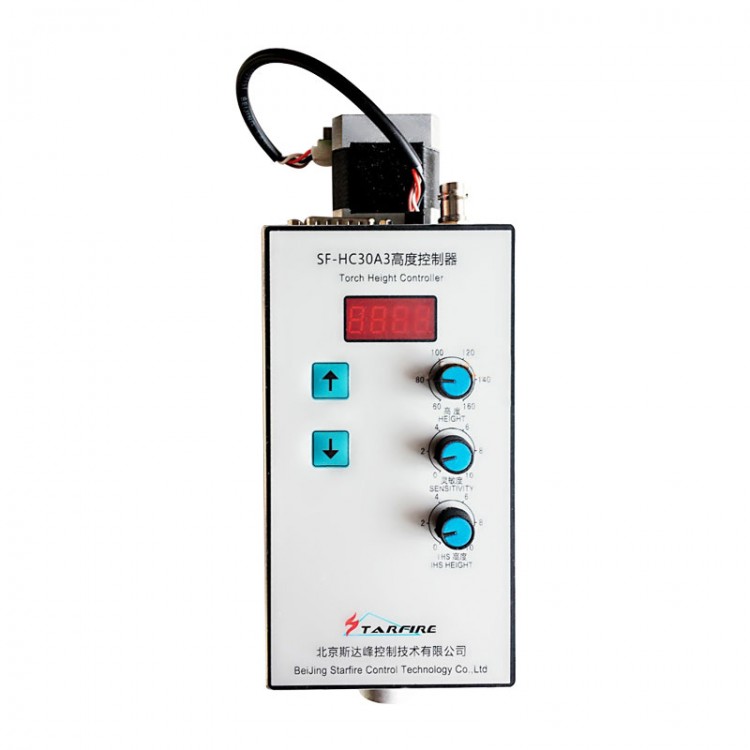

SF-HC30A Automatic Arc Cap Torch Height Controller for Plasma Cutter Machines Flame Cutters THC
Torch Height Controller/CNC plasma torch height Description:
- Stepper motor instead of conventional DC motor, makes it faster and smoother in addition to significantly extended service life.
- Directly displaying the height of cutting nozzle in capacitance height control mode
- Integration of mechanical lifting device and height controller
- Circuit uses SMD technology without any adjustable devices; All digital control technology ensures high product reliability.
- The feature of "one-keystroke height calibration" guarantees that in any circumstances, the user only needs to press one key to calibrate the absolute height measurement and achieve linear height measurement.
- The shell uses tamper-proof, waterproof and moisture-proof aluminum box sealed design, particularly applicable to the severe environment
- The interface is simple and easy to control. It is suitable for any flame cutting and plasma cutting CNC system or using alone.
- Asynchronous communication function enables connection with CNC system and facilitates parameter setting, automatic/manual control, taper angle transition control and data exchange.
Item Specification:
-Input Voltage:DC 24V±2 V
- Rated Current:3 A
- Applicable motor:17/23 HS series of stepper motors
- Manual adjustment range: 0-100 mm
- Automatic height control range:3 -30 mm
- Adjusting speed of automatic height control:3000 mm/min ( 30 °slope )
- Control precision:±0.5 mm
- Dimensions of box body:(155 ×87 ×71) mm
- Total weight of capacitance height control:1.990kg
- Total weight of arc voltage height control:1.645kg
- Detection system:capacitance height detector and arc voltage height detector
Package List:
- 1 x SF-HC30A height controller
- 1 x Elevator
