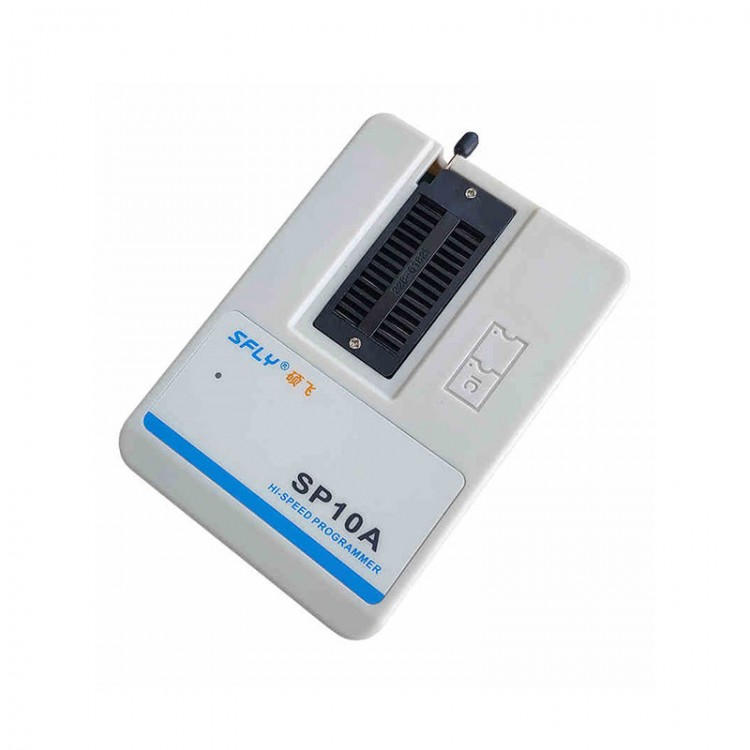

SFLY SP10A High-speed Flash Programmer Eeprom Programmer for SPI FLASH (not for Mass Production)

SFLY SP10A High-speed Flash Programmer Eeprom Programmer for SPI FLASH (not for Mass Production)

Introduction:
SP10 series (SP10A/SP10B/SP10F) programmers are the latest high-speed mass production programmers for SPI FLASH. It is the upgraded version of SP8 series, which can support the high-speed programming of SPI NOR FLASH, I2C/MicroWire and other EEPROMs from domestic and foreign manufacturers.

Hardware Features:
* USB type-c communication interface, no need for external power supply when it is used in USB mode
* Supports USB mode mass-production programming: automatically detects the chip insertion and removal, and automatically starts programming (Note: SP10A does not have this function)
* Supports standalone programming: no need to connect to a computer during programming. Large built-in memory saves the project data, and multiple CRC data validation ensures that the programming data is absolutely accurate (Note: only SP10F has this function)
* 28-pin ZIF socket, universal programming sockets are supported
* Three-color RGB LED indicates the working status, the SP10F can also indicate the success and failure via a buzzer
* Supports poor pin contact detection to effectively improve programming reliability
* Short-circuit/over-current protection function can effectively protect the programmer or chip from accidental damage;
* Programmable voltage design, adjustable range from 3.3V to 5.0V. It can support 3.3V-5V chips
* Provides equipment self-check function
* Thanks to its small size (108mm x 76mm x 21mm), simultaneous use of multiple programmers only takes up a very small work surface

Software Features:
* For Win7/Win8/Win10/Win11
* Supports Chinese and English interface switching
* Supports software upgrade to add new devices
* Supports project file management (the project file saves all programming parameters, including chip model, data file, programming settings, etc.)
* Supports reading and writing of chip additional storage area (OTP area) and configuration area (status register, etc.)
* Supports automatic recognition of 25 series SPI FLASH
* Automatic serial number function (can be used to generate product unique serial number, MAC address, Bluetooth ID, etc.)
* Supports multi-programmer connection: one computer can connect to 8pcs SP10B/SP10F programmers at the same time. And the automatic serial number function is effective in multi-programmer connection mode (Note: SP10A does not have this function)
* Supports log file saving

Note:
* The above functions depend on the product models. For details, please refer to the product parameter table below.
* Programming socket is not included.

Package Included (SP10A):
* 1 x Programmer
* 1 x Type-C data cable
* 1 x Warranty card

Packaging Details:
* Weight: 0.3kg
