SFLY SP20P Offline Programmer Flash Programmer w/ OLED Screen for Programming System SPI NOR FLASH

SFLY SP20P Offline Programmer Flash Programmer w/ OLED Screen for Programming System SPI NOR FLASH

Description:
SP20 series (SP20B/SP20F/ SP20X/SP20P) programmers are the latest high-speed mass production programmers for SPI FLASH. It fully supports the high-speed programming of SPI NOR FLASH, I2C / MicroWire and other EEPROMs from domestic and foreign manufacturers.

Performance Characteristics:
1. Hardware Features:
- USB Type-C communication interface, no need for external power supply when it is used in USB mode;
- Supports USB and standalone mode high-speed mass production programming;
- Built-in large-capacity memory chip saves the engineering data for standalone programming, and multiple CRC data verification ensures that the programming data is absolutely accurate;

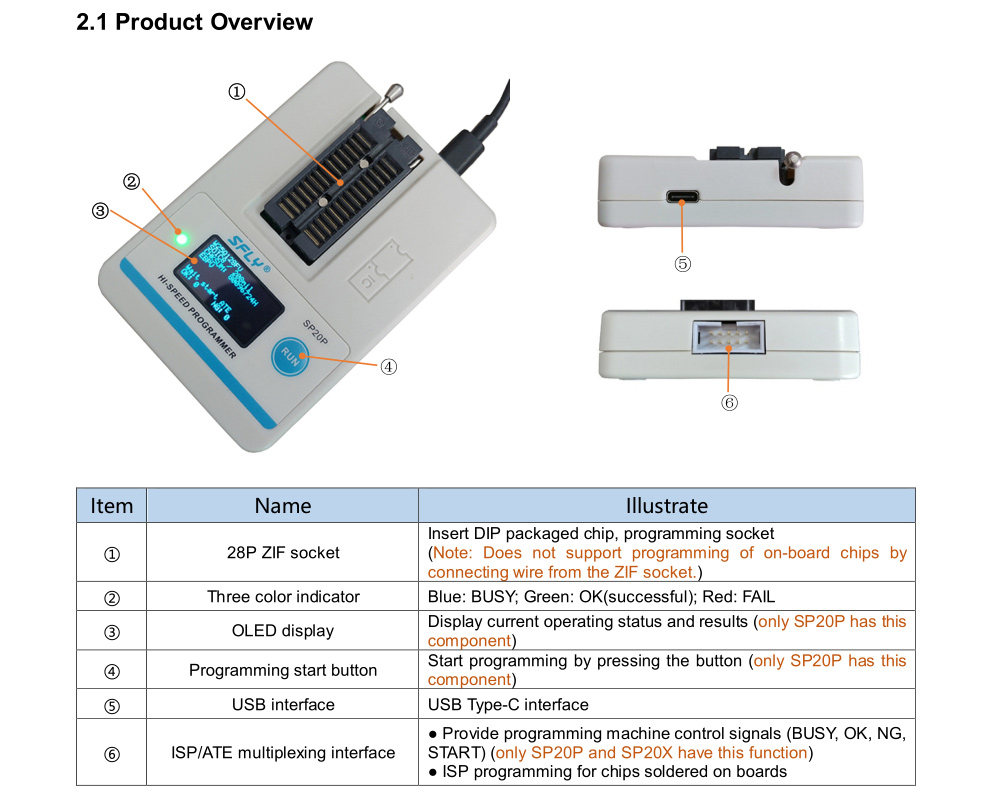

- Replaceable 28-pin ZIF socket can be supported by conventional universal programming bases;
- OLED screen visually displays the current operating information of the programmer (only for SP20P);
- Three-color RGB LED indicates the working status, and the buzzer can prompt the success and failure of the programming;
- Supports poor pin contact detection, effectively improving programming reliability;
- Supports ISP mode programming. It can support on-board programming of some chips;
- Multiple programming startup methods: button startup, chip placement (intelligent detection chip placement and removal, automatic startup programming), ATE control (independent ATE control interface, providing accurate and reliable programming machine control signals such as BUSY, OK, NG, START, extensively support automatic programming equipment of various manufacturers);
- Short circuit / over-current protection function can effectively protect the programmer or chip from accidental damage;
- Programmable voltage design: adjustable range from 1.7V to 5.0V. It can support 1.8V/2.5V/3V/3.3V/5V chips;
- Provide equipment self-check function;
- Due to small size (108x76x21mm), simultaneous programming of multiple machines only takes up a very small work surface;

2. Software Features:
- Supports for Win7/Win8/Win10/Win11;
- Supports switching between Chinese and English;
- Supports software upgrade to add new devices;
- Supports project file management (project file saves all programming parameters, including chip model, data file, programming settings, etc.);
- Supports the reading and writing of additional storage area (OTP area) and configuration area (status register, etc.) of the chip;
- Supports automatic recognition of 25 series SPI FLASH;
- Automatic serial number function (can be used to generate product unique serial number, MAC address, Bluetooth ID, etc.);
- Supports multi-programmer mode connection: one computer can be connected with 8pcs SP20 series programmers for simultaneous programming. The automatic serial number function is active in multi-programmer mode;
- Supports log file saving.

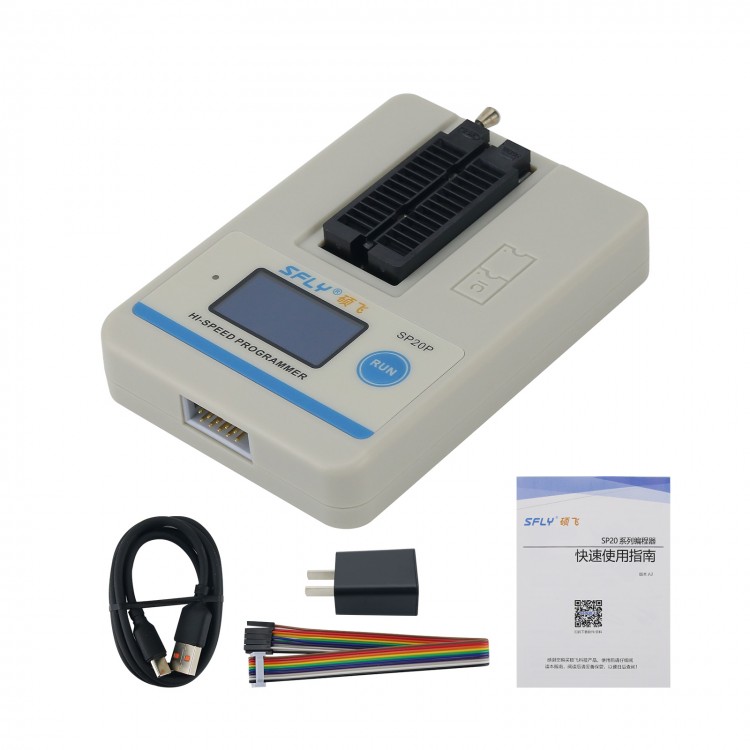

Package Included (SP20P):
- 1 x Programmer
- 1 x Type-c data cable
- 1 x ISP cable
- 1 x 5V/1A power adapter
- 1 x User manual (with warranty card & product quality certificate)

Packaging Details:
- Weight: 0.35kg

Note:

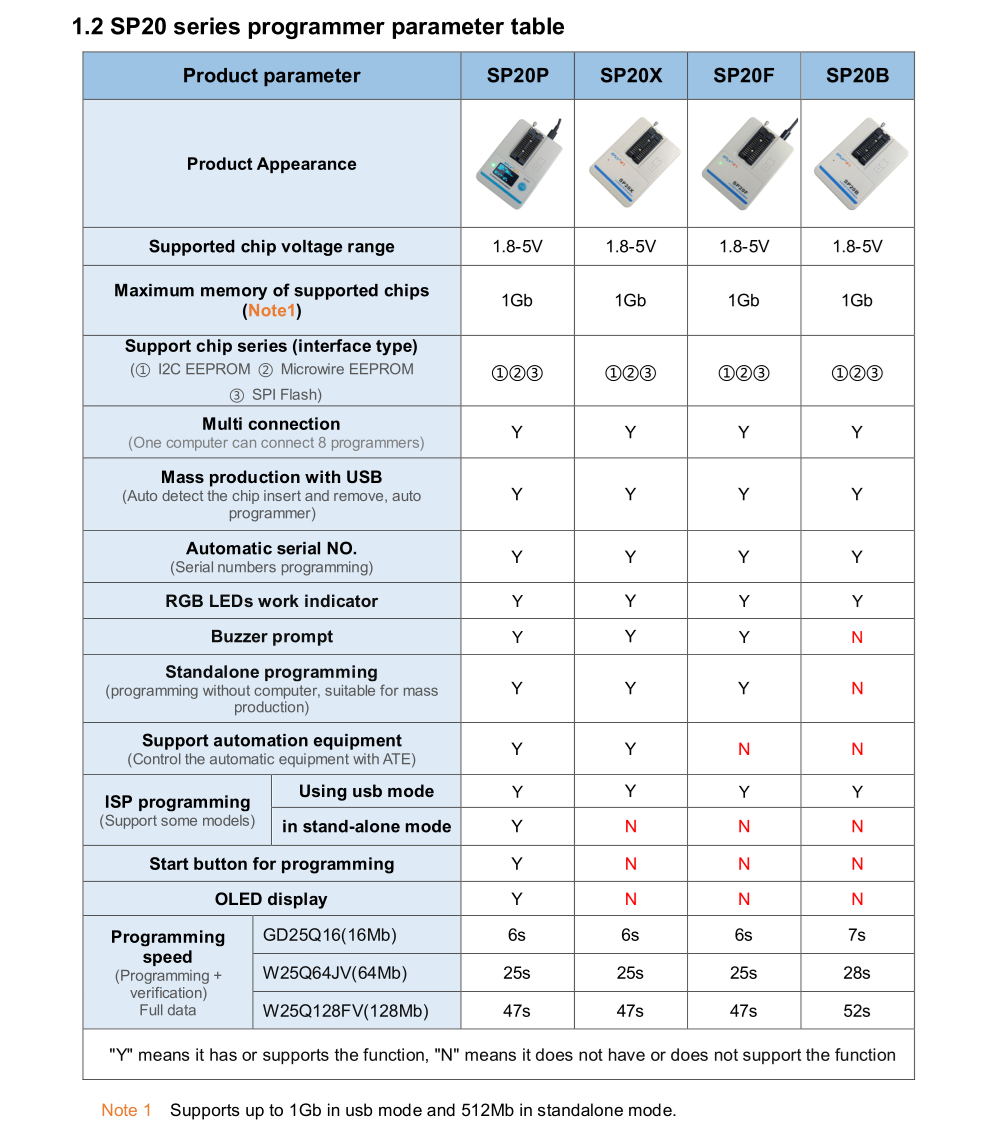

- The above functions depend on the product model. For details, please refer to the product parameter table in section 1.2.
- Programming socket is not included in the package.
