SFM Transmitter 0-50W Adjustable RDS PLL Stereo Radio Broadcast Station Car Wireless Audio System

FM Transmitter 0-50W Adjustable RDS PLL Stereo Radio Broadcast Station Car Wireless Audio System

DESCRIPTION
- Designed for perfect fit.
- High quality 100% brand new.

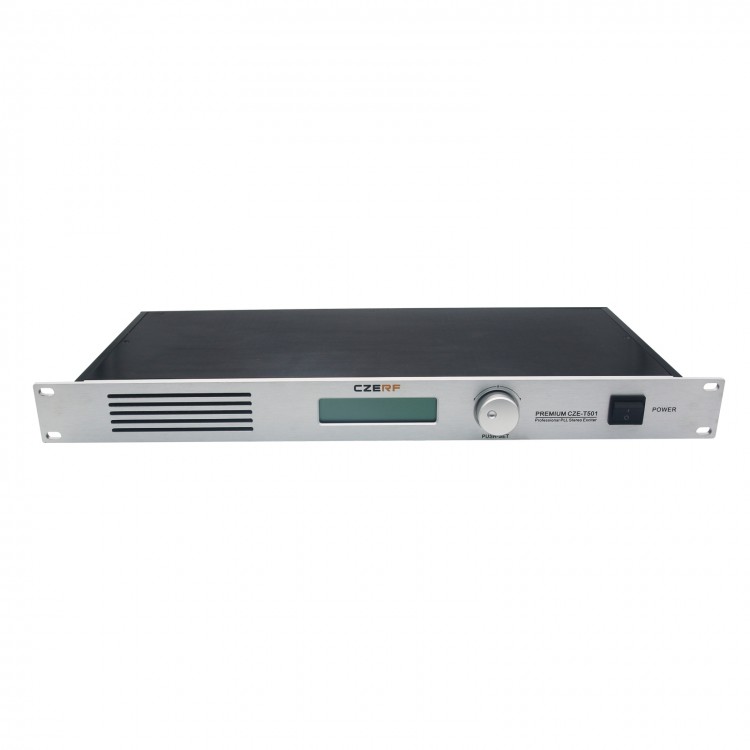

- Brand new CZE-T501 50W FM transmitter is a professional FM transmitter newly released by CZHFM Co.. It’s featured by one button control for all functions. It has - VSWR protection, temperature protection, RDS port, electronic volume adjusting, equipped with low pass filters. It’s applicable in many places, such as stadium, county radio station, community radio station, motel, public square, church, theater etc.

Features:
- 1U-standard chassis.
- Power up to 50 watts.
- Using digital phase-locked loop frequency synthesizer (PLL) technology, ultra-high frequency stability.
- Have the standing wave protection, and overtemperature protection.
- Output power from 0 ~ 50W continuously adjustable.
- Using the power lock feature.
- Show the timely output power and various working status.

Technical Specification:
- Working voltage: 12V.
- Working current: ﹤1A.
- Frequency range: 87~108MHz.
- Frequency stability: ±10PPM.
- Frequency Step value: 100KHz.
- Environment temperature: -10-45 deg C
- Output Impedance: 50Ohm.
- RF output: 0W~50W.
- Spurious and harmonic radiation: ≤－60dB.
- Audio distortion: <0.2%.
- Frequency response: 50Hz~15000Hz.
- Stereo Separation: ≥35 dB.
- Input level: ≤15 dBV.
- Modulation frequency deviation: ±75KHZ.
- Signal-to-noise ratio: ≥70dB.
- Machine size: 210mm (L) * 175mm (W) * 45mm (H).

Note:
- Make sure the antenna or the Load can be ground connected to transmitter.
- The power supply voltage must be within the allowed range.
- Make sure the fan ventilation is good.

Package includes
- 1 x 0~50W FM Transmitter.
- 1 x AC Cord.
