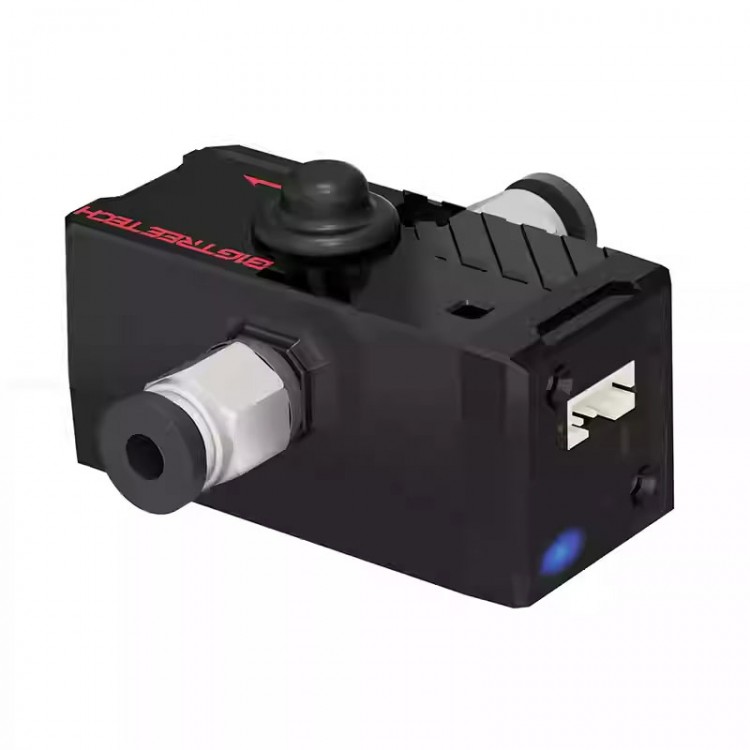

SFS V2.0 Smart Filament Sensor Filament Runout Sensor 3D Printer Parts Supports 1.75mm Filaments

SFS V2.0 Smart Filament Sensor Filament Runout Sensor 3D Printer Parts Supports 1.75mm Filaments

Features:
4 Detection Functions
* SFS V2.0 enables real-time monitoring of the entire printing process. When it detects a clogged nozzle, a broken filament, a filament tangled or an extruder failure, it will immediately send a fault alarm through the screen and automatically pause printing to avoid resource loss.

Real-time Status Indication
* An indicator light makes it easy for users to know the status of the filament.
* When your printer is working properly and the filament is being squeezed out, the blue indicator is flashing. This indicates that the printing is going smoothly.
* Filament run-out/breakage: Red light will stay on to alert the user to pay attention and dispose of the filament immediately.
* Other anomalies: When the nozzle is clogged, the extruder is faulty or the filament is winding, the blue light will stop flashing and stay on or off.

Supported Firmware
* It is for RepRap RRF, Klipper and Marlin.

Bi-directional Feeding
* There is no need to distinguish between the inlet and outlet of filaments, and it allows for quick and easy installation and flexible placement to maximize space utilization.

Photoelectric Sensing Technology Makes the Detection More Accurate
* The theoretical detection length is 2.88mm.

Easy to Use & Compatible
* With a push button for infeed and outfeed. It is easy and convenient to use.

3 Screw Holes
* There are 3 screw holes on the back, which is convenient for users to install and fix with printed parts (Link to download files for the bracket model: https://github.com/bigtreetech/smart-filament-detection-module/tree/master).

Smaller Size and Lighter weight
* The module weighs only 36g. It improves installation and space utilization, and does not overburden the proximity extruder, thus maintaining the speed and accuracy of printing.

Widely Compatible
* Compatible with motherboards with available I/O ports (limit switches, consumables detection, BLTouch, inductive sensors, etc.).
* Compatible with short-range/long-range extruders.

Unique Shape and Excellent Performance
* SFS V2.0 has been carefully designed with a unique shape that combines beauty and practicality to add joy to your 3D printing process.

Specifications:
- Detectable filaments: All 1.75mm filaments
- Rated voltage: 3.3V-5V
- Operating humidity: 10% to 90%

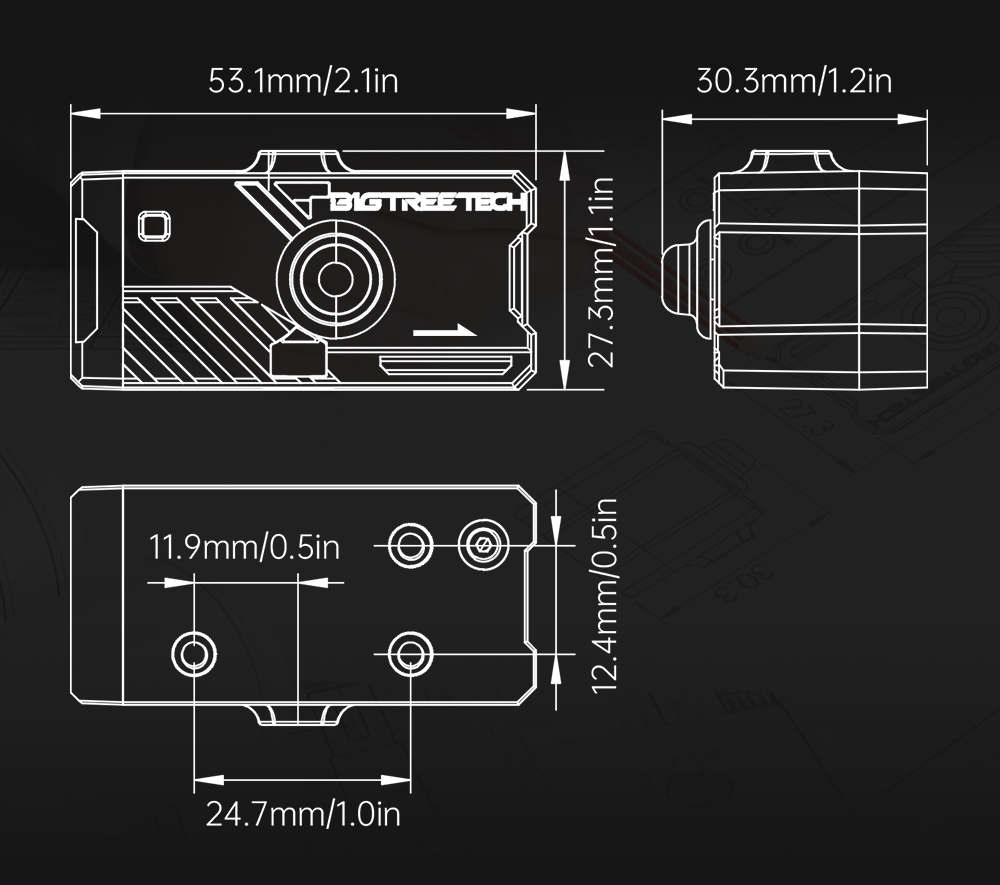

- Hole spacing for fixing: 12.4x24.7mm
- Detection length: 2.88mm (theoretical detection length. It may need to be adjusted)
- Operating temperature: -10 to 50°C
- Dimensions: 53.1x30.3x27.3mm
- Weight: 36g

Package Included:
- 1 x SFS V2.0
- 1 x User manual
- 2 x PTFE tubes (I.D.2xO.D.4x30 mm)
- 1 x 100cm connection cable
- 2 x PC4-M6 connectors
- 2 x Pairs of collets and clips
- 3 x M3x6 socket head cap screws

Packaging Details:
- Weight: 0.16kg
