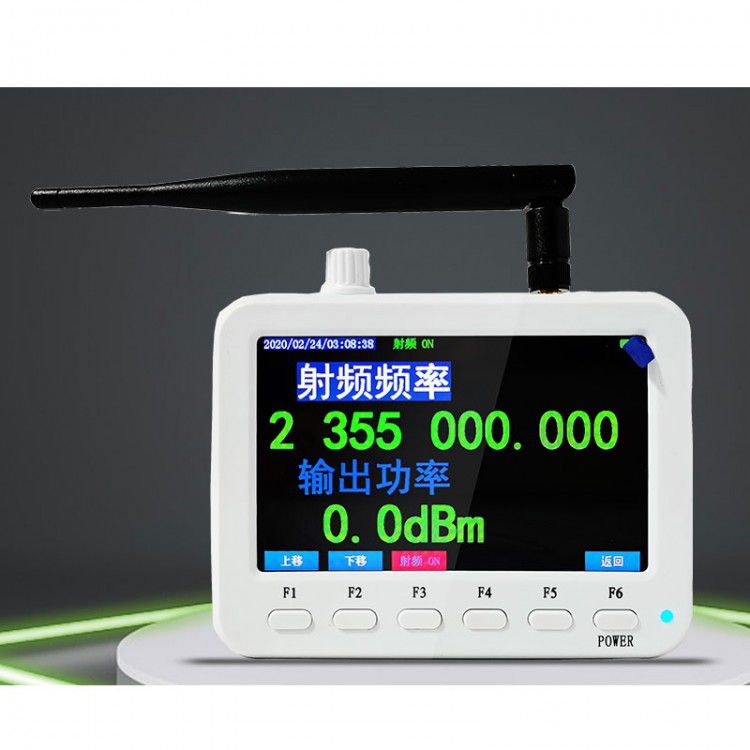

SG-7200 18MHz-7.2GHz Handheld Portable RF Signal Source -45dBm~+13dBm Adjustable Signal Generator

SG-7200 18MHz-7.2GHz Handheld Portable RF Signal Source -45dBm~+13dBm Adjustable Signal Generator

Release Note:
- Version with the AT suffix, indicating that the instrument can be remotely controlled and spectrum data can be caught through the USB port of the PC (with a USB to TTL serial port module for testing); The internal output of the instrument is a TTL level serial port.
- SG3000PRO signal frequency range is 25MHz ~ 3GHz, power dynamic range is -51.5dBm ~ 10dBm.
- SG6000 series signal frequency range is 18MHz ~ 6GHz, power dynamic range is -45dBm ~ +13dBm.
- SG7200 series signal frequency range is 18MHz ~ 7.2GHz, power dynamic range is -45dBm ~ +13dBm.

Feature:
- Its frequency and power are adjustable. It can be used to test radio frequency amplifiers, switches, filters, interference, etc. And it can also be used for wireless communication and radio frequency circuit research and development.

Main Functions:
- CW and sweep frequency

Recommended Application:
- It can be used in research and development of radio frequency circuit such as radio frequency amplifier test, RF transceiver test, filter test, etc., which can effectively improve work efficiency, reduce carrying burden, and improve the quality of works.

Technical Parameters:
Frequency:
- Frequency range: 18MHz to 7.2GHz
- Frequency resolution: 1Hz (typical value)
- Frequency precision: < 0.5ppm

Power:
- Power: -45dBm to +13dBm
- Power resolution: 0.1dBm
- Power precision:
Absolutely guaranteed precision: ±1dBm (10MHz-3GHz typical value: ±0.3dBm; 3GHz above typical value: ±0.5dBm)

Wavebands:
- Band 1: f ≤ 23.4375MHz
- Band 2: 23.4375MHz <f ≤ 46.875MHz
- Band 3: 46.875MHz <f ≤ 93.75MHz
- Band 4: 93.75MHz <f ≤ 187.5MHz
- Band 5: 187.5MHz <f ≤ 375MHz
- Band 6: 375MHz <f ≤ 750MHz
- Band 7: 750MHz <f ≤ 1500MHz
- Band 8: 1500MHz <f ≤ 3000MHz
- Band 9: 3000MHz <f ≤ 6000MHz
- Band 10: 6000MHz <f ≤ 12000MHz

Sweep Frequency:
- Scan mode: step scan (equal interval frequency step)
- Scan mode: continuous
- Scan range: within the frequency range of the instrument
- Step change: linear
- Dwell time: 20ms to 100s

Spectral Purity:
- Harmonics: 25MHz ≤ f ≤ 500MHz, output level ≤ +0dBm; 500MHz ≤ f ≤ 1000MHz, output level ≤ +0dBm; 1000MHz ≤ f ≤ 2000MHz, output level ≤ +0dBm; 2000MHz ≤ f ≤ 3000MHz, Output level ≤ +0dBm
- Subharmonics: 25MHz ≤ f ≤ 500MHz; 500MHz ≤ f ≤ 1000MHz; 1000MHz ≤ f ≤ 2000MHz; 2000MHz ≤ f ≤ 3000MHz
- Non-harmonic: 25MHz ≤ f ≤ 500MHz; 500MHz ≤ f ≤ 1000MHz; 1000MHz ≤ f ≤ 2000MHz; 2000MHz ≤ f ≤ 3000MHz
- Single sideband phase noise: f = 100MHz; f = 1GHz; f = 3GHz; f = 6GHz

General Technical Specifications:
Display:
- Type: TFT LCD
- Resolution: 800x480
- Screen size: 5"

Power Supply:
- Battery capacity: 4800mAh (typical)
- Battery type: 2170 lithium battery
- Charging time: 2～3 hours
- Time duration: 4～5 hours

Size:
- Dimensions: 135 x 101 x 30mm/5.3 x 4 x 1.2" (excluding the sizes of knob and antenna)

Environment:
- Working temperature: -20 to 45℃
- Storage temperature: -20 to 70℃
- RF interface: SMA-K
- Built-in RTC clock: support

Interface:
- RF interface: SMA-K
- Charging interface: Micro USB interface

2.4G Omnidirectional Antenna:
- Frequency range.: 2.4-2.5 GHz
- Standing wave ratio: ≤1.5
- Gain: 6dBi
- Characteristic impedance: 50ohms
- Interface: SMA-J

5V Power Adapter:
- 5V 2A

Package Included:
- 1 x Signal Generator Host
- 1 x Charger (Power Adapter)
- 1 x 2.4GHz Antenna
- 1 x User Manual

Acceptance of the Instrument:
- Please check whether the items are complete according to the above list and whether there is any appearance damage. Pick up the signal source host, check whether the screws are firm, and whether there is any abnormal noise when shaking.
- If no abnormality is found in the general inspection, the charger should be connected to check whether the power-on is normal. If the battery has been installed, directly press the power switch (POWER, PWR) for 0.5 seconds to start the inspection.

Safety Precautions:
- It is not a consumer product, and users must be a professional or with professional knowledge.
