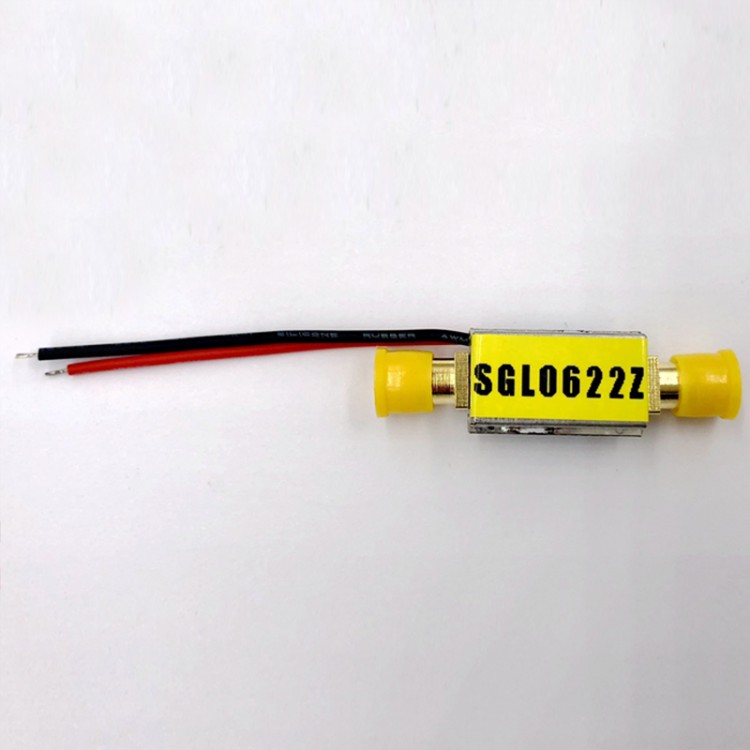

SGL0622Z Low Noise RF Amplifier 5-4000MHz 32DB SMA Female Input + SMA Femal Output
Description:
The SGL0622Z is a high performance 5 MHz to 4000 MHz low power high gain and fully internally matched SiGe LNA designed for 2.7V to 3.6V operation. The application circuit is the simplest of the SGL LNA series. Only four to five external components are required to achieve 28.5 dB gain and a noise figure of 1.5 dB at 1.575 GHz which results in a lower bill of material cost. The SGL0622Z is an ideal GPS LNA for portable applications due to its very small footprint minimal applications circuit and low operating voltage range.
Specifications:
- Power Supply: 3.3V (15mA)
- Gain: 32DB@1GHz
- Overall Dimensions: 40 x 12 x 10mm (L*W*H) (Including the size of SMA connectors)
- Dimensions: 20 x 12 x 6mm (L*W*H) (Excluding the size of SMA connectors)
- Noise Figure: Typical 1.4dB@1.575MHz
- P1dB=6dB@1.575MHz
- Operating Frequency: 5-4000MHz
- Input & Output Impedance: 50Ω
Package Included:
- 1 x Low Noise RF Amplifier
Tested Gain:
