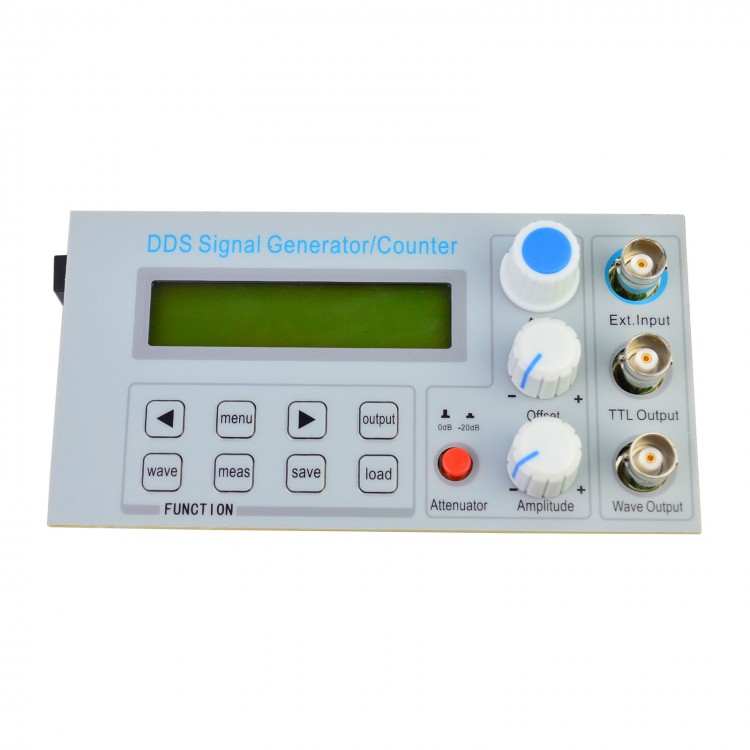

SGP1008S DDS Signal Generator Direct Digital Synthesis Function Counter 8MHz Frequency Meter

SGP1008S DDS Signal Generator Direct Digital Synthesis Function Counter 8MHz Frequency Meter

User manual: Click here

Introduction of the instrument
This manual applies to each mode of SGP10xxS series Direct Digital Synthesis (DDS) Signal Generator. In this series, the last two digits “xx” represent the upper limit frequency value (MHz) of each mode.

SGP10xxS series use direct digital synthesis (DDS) technology and FPGA design. With wide voltage power supply (DC9V-DC40V), it can output Sine wave, Square wave (Duty cycle adjustable from 1% to 99%) and Triangle wave (include sawtooth wave). Maximum effective output is greater than 10Vpp with resolution of 0.01Hz (10mHz). Output amplitude and DC offset can be adjusted continuously. It has two sweep functions, linear sweep and logarithmic sweep. Both the sweep range and the sweep time can be set up optionally. Meanwhile, it integrates other multiple functions into one, including synchronized TTL output, exterior frequency measuring and counter function. It has the advantages of convenient operation, high stability of the signal, one-key operation, BNC port output, output amplitude one-key Attenuation, Dual-channel TTL electric level differentially output, Embedded panel mounting structure, easy integration with customer products etc..

It's the ideal instrument for electronic enthusiasts, laboratories, production lines, teaching and scientific researchers. It can also be used as supporting module for industrial equipment. Recently, it has already widely used in teaching instruments and industrial control equipments. It is a highly cost-effective product!

It has excellent technical indexes and function features:
- Compact size, multiple functions, easy to carry.
- Wide voltage DC power supply (DC9V-DC40V).
- Embedded panel mounting structure, easy to integrate with customer products.
- High frequency accuracy: ±5×10-6
- High resolution: 10 mHz
- All range continuously adjustable, digital setting.
- High waveform accuracy: The output waveform synthesis by calculating function.
- One-key controlled signal output.
- 3.3V TTL electric level output.
- Several different waveforms: Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave).
- Sweep function: Linear sweep, Logarithmic sweep. Starting and stop points can be set optionally.
- Save function: 10 sets of parameters defined by the users can be saved and loaded anytime.
- Operation mode: Button controlled, LCD display, digital setting, knob adjusted continuously.
- Output mode: Standard BNC port output.
- Highly reliable: Large scale integrated circuit, Surface mounting technology, reliable and durable.
- Frequency measurement: Frequency of internal / external signal can be measured through built-in 60MHz frequency meter.

Main technology indexes
- Output waveforms: Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave)
- Output amplitude: ≥10Vp-p (signal output, no load) (MAX)    About 0.1Vp-p (MIN)
- Output impedance: 51Ω±10%(signal output)
- DC offset: ±3V(no load)
- Frequency range: 0.01Hz ~ 8MHz
- Resolution : 0.01Hz(10mHz)
- Frequency accuracy : ±5×10－6
- Frequency Stability:  ±2×10－6/3 Hours
- Sine wave distortion: ≤0.8% (reference frequency is 1kHz)
- Triangle linearity : ≥98%  (0.01Hz~10kHz)
- Rise and fall time of square wave : ≤100ns
- Square Wave Duty range: 1%~99%(digital control mode)

TTL Output  function
- Frequency range : 0.01Hz ~ 8MHz
- Amplitude :  >3Vp-p
- Fan Out: >20 TTL loads

COUNTER  function
- Counter Range:  0-4294967295
- Frequency Meter Range: 1Hz~60MHz
- Input Voltage Range: 0.5Vp-p~20Vp-p

SWEEP  function
- Sweep mode:  Linear sweep, Logarithmic sweep
- Frequency setting range: 0.01Hz ~ 8MHz
- Sweep range :  fM1 (pre-set) to fM2 (pre-set)
- Sweep time: 1s~99s

Others
- Display: LCD1602 in English
- Save and Load Parameter: M0-M9(M0: default load)

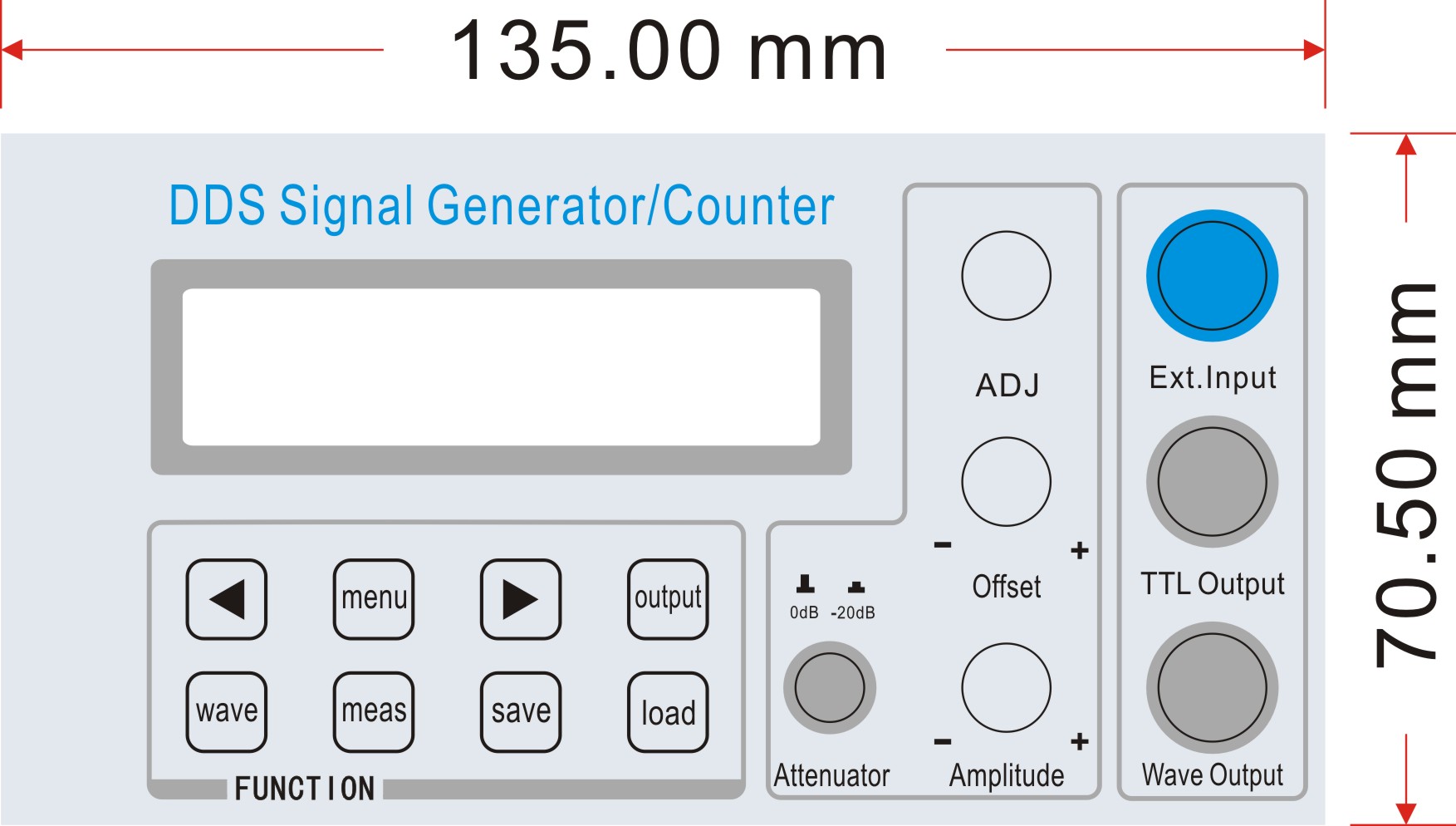

- Size: 135mm (Length)×65 mm(Width)×35mm(Height)
- Buzzer warning tone: Can be turned On/Off by setting
- Production technology: Surface mounting technology, large scale integrated circuit, reliable and durable
- Operation feature:  Button-controlled, Knob-adjusted continuously
- Conditions requirement: Temp: 0~40 degree C
- Humidity: <80%

Package Contents:
- DDS function generator / counter * 1 set
- DC 12V Power Supply * 1 pc
- Q9 cable * 1 pc
- User manual *
