SGP1010S DDS Function Signal Generator Digital Synthesis Sine Square Wave Frequency Counter 10MHz

SGP1010S DDS Function Signal Generator Digital Synthesis Sine Square Wave Frequency Counter 10MHz

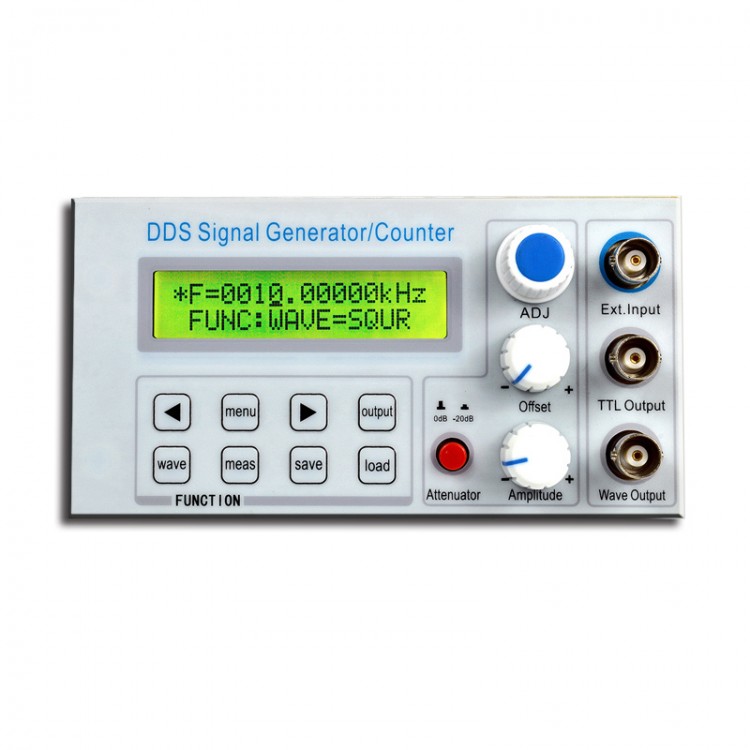

Description:
SGP10xxS series use direct digital synthesis (DDS) technology and FPGA design. With wide voltage power supply (DC 9V-DC 40V), it can output sine wave, square wave (duty cycle adjustable from 1% to 99%), triangle wave, sawtooth wave, etc. various function waveform. The maximum effective output is greater than 10Vpp, frequency ranges from 0.01Hz to 2MHz (optional 5MHz, 8MHz, 10MHz) and the resolution is 10MHz. It also has TTL synchronous output and multiple functions such as counter and 60MHz frequency meter. It is easy to use with high signal stability, the output signal can adjust the amplitude and DC offset. And it also has a frequency sweep function. It supports linear sweep and logarithmic sweep, and the sweep frequency range and sweep time can be set arbitrarily.It's the ideal instrument for electronic enthusiasts, laboratories, production lines, teaching and scientific researchers. It can also be used as supporting module for industrial equipment.

Features:
◆ Compact size, multiple functions, easy to carry.
◆ High Frequency Accuracy: The frequency accuracy can reach the order of 10-6.
◆ High Frequency Resolution: Full range frequency resolution 10MHz.
◆ No Range Limitation: Direct digital settings are available for full range frequency.
◆ High Waveform Accuracy: the output waveform is synthesized by the calculated value of the function, with high waveform accuracy and low distortion
◆ Various Waveform: sine, square wave, triangle wave, sawtooth wave
◆ Scanning Characteristics: with frequency scanning function, arbitrary setting of scanning start and end points.
◆ Storage Characteristics: It can store 10 sets of instrument state parameters set by users, which can be recalled at any time.
◆ Operation Mode: All button operation, LCD1602 LCD English display, direct digital setting or continuous adjustment of knob.
◆ High Reliability: Large-scale integrated circuits, surface mount technology, high reliability and long service life.
◆ Frequency Measurement: with 60MHz frequency meter function to measure the frequency of internal/external signals.

Specification:
Wave Frequency Range:
Sine wave: 0Hz-10MHz
Square wave: 0Hz-2MHz
Triangle wave: 0Hz-2MHz
Other wave: 0Hz-2MHz

Signal Output:
Output channel: 1 channel main waveform output 1 channel main waveform synchronized TTL level output
Output waveform: sine wave, square wave (duty cycle adjustable), triangle wave, sawtooth wave
Output amplitude: ≥10Vp-p (no load)
Output impedance: 51Ω±10%
DC offset: ±3V
Frequency resolution : 0.01Hz(10MHZ)
Frequency accuracy : ±5x10-6
Frequency stability:  ±2x10-6/3 hours
Sine wave distortion: ≤0.8% (reference frequency is 1kHz)
Triangle linearity : ≥98% (0.01Hz~10kHz)
Rise and fall time of square wave : ≤100ns
Square Wave Duty range: 1%~99%

TTL Output:
Amplitude: >3Vp-p
Fan Out: >20 TTL load
TTL level rise and fall time: ≤20ns

Frequency Counter Function:
Counter range: 0-4294967295
Frequency meter range: 1Hz~60MHz
Input voltage range: 1Vp-p~20Vp-p

Scanning Function:
Scan mode: linear scan, logarithmic can
Frequency setting range: start point and end point can be arbitrarily sett
Scan range: M1 preset frequency ~ M2 preset frequency
Scan time: 1s~99s/step

Others:
Display mode: LCD1602 in English
Save and load parameter: M0-M9(M0: default load)
Buzzer warning function: can be turned On/Off by setting
Power supply: DC 9V to D C36V wide voltage power supply
Production technology: surface mounting technology, large scale integrated circuit, reliable and durable
Operation feature: button-controlled, knob-adjusted continuously
Conditions requirement: temperature: 0~40℃; humidity: <80%
Size: 135mm (length)x70mm(width)x35mm(height)

Package List:
-1 x Signal Generator
-1 x Q9 Clip Cable
-1 x Power Adapter (optional)
