SH73 BC2 Kit Intelligent Portable Soldering Iron Constant Temperature Welding Machine DC12-24V 65W with OLED

SH73 BC2 Kit Intelligent Portable Soldering Iron Constant Temperature Welding Machine DC12-24V 65W with OLED

Features:
- The SH73 intelligent electric soldering iron is small and lightweight, with a size of 177x16x16mm. The handle adopts a raised anti slip design.
- Fast heating, with 24V3A power supply, it only takes 7 seconds for room temperature to reach 300℃.
- Equipped with an intelligent controller, the soldering iron can achieve constant temperature rise and fall, achieving stable operation within a wide temperature range.
- The integrated heating core is easy to install and equipped with multiple model options to meet different work needs.
- Reserve a ground wire interface, and there is no need to worry about welding sensitive components.
- 0.69-inch OLED display screen can present the working temperature to users, making it more intuitive and convenient for welding various components with different requirements. Automatically switch the display direction based on gestures, allowing for intuitive display of the screen content whether used with the left or right hand. Free switching between Chinese and English display.
- Automatic sleep function/standby function, sleep temperature, sleep time/standby time can be set. Adapted to different application scenarios, it can save energy, avoid dry burning, and extend the lifespan of the soldering iron head.

Specification:
- Power: 65W
- Power dupply interface: 5.5 x 2.5mm
- Working voltage: DC 12 - 24V
- Working current: >= 2A
- Working temperature range: 100 - 400℃
- Control handle size: 110 x 16 x 15mm
- Welding nozzle size: 115 x 5.5mm
- Net weight: 30g (different according to the soldering iron tip)
- Packaging size: 165 x 85 x 22mm
- Packaging weight: 73g

Adjustable Function:
- Sleep temperature: 200℃ (setting range: 100 - 400℃)
- Sleep time: 180s (setting range: 60 - 999s)
- Standby time: 300s (setting range: 120 - 999s)
- Working temperature: 300℃ (adjustable range: 100 - 400℃)
- Temperature step: 10℃ (adjustable range: 1-5-10-25℃)

Power Supply Voltage and Current Reference:
- 12V: >=1.5A, 18W
- 16V: >=2A, 32W
- 19V: >=2.1A, 40W
- 24V: >=2.7A, 65W

Package Included:
- 1 x Handle

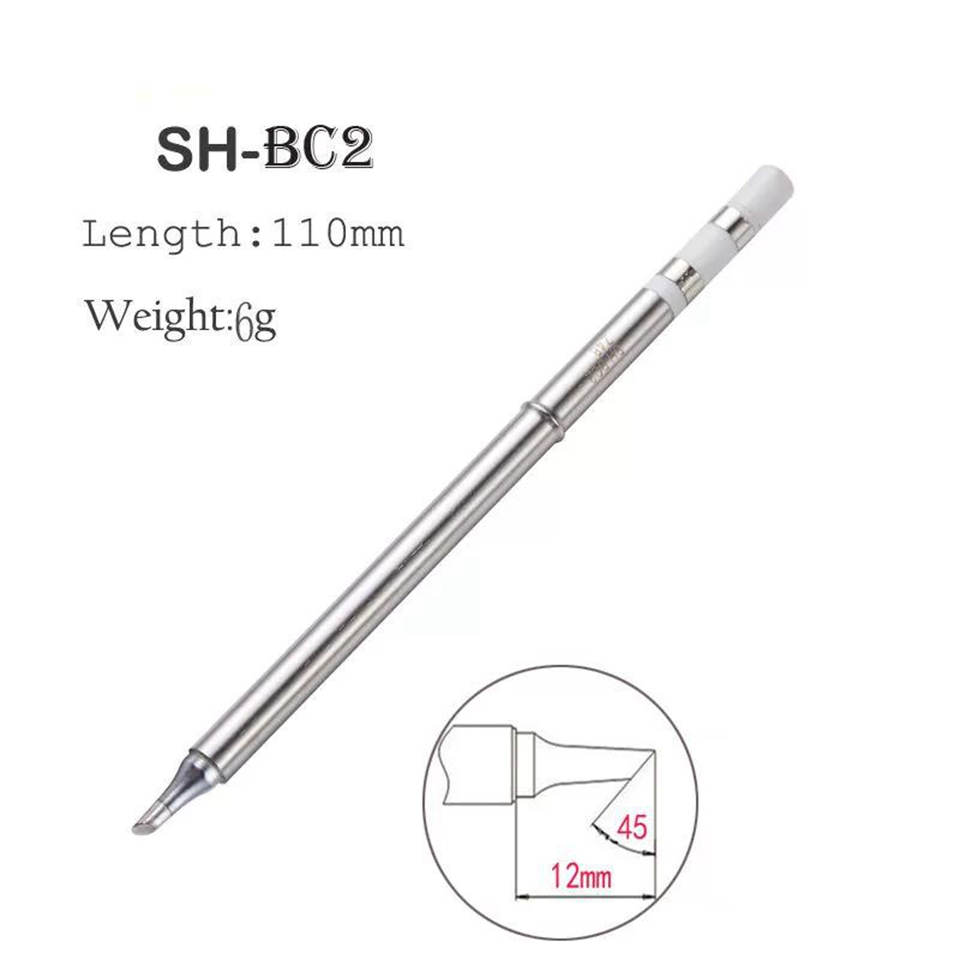

- 1 x BC2 Tip
- 1 x User Manual
