| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $783.02 | $767.04 | $743.07 | $711.11 | Contact US |
Description:

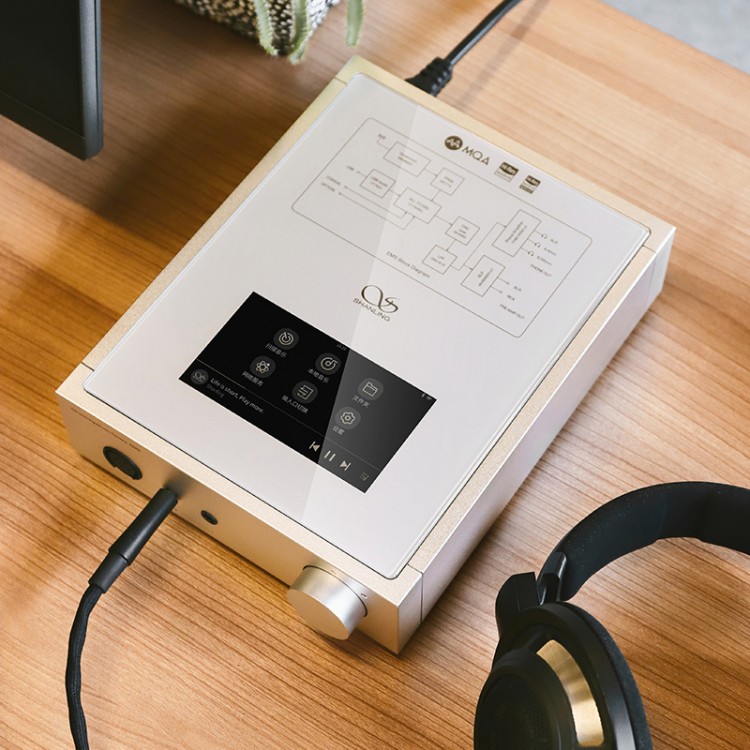

- EM5 is part of our new desktop line, build around the same streaming player we introduced with the M30.
-
EM5 was designed as a DAC/AMP for high-end headphones, with a range of
different connectors, including balanced XLR and 4.4mm. It can also be
used as a DAC and pre-amplifier when combined with a separate power
amplifier or active speakers.
Specification
- Brand: SHANLING
- Model: EM5
- System: Closed Customized Android, with build-in streaming apps
- Display: Touch 4.7-inch HD
- Power supply: Separated power for analog and digital section
- Analog: Low noise Toroidal transformer
- Digital: Switching power supply
- Analog circuit:
- AKM AK4493 DAC
- OPA2211 as low pass filter*
- 2X TPA6120A2 for headphone output
- 2X Muse8920 for pre-amp output
- 3rd Generation FPGA
- CPAF Filter technology
- KDS Crystal oscillator
- Panasonic Tantalum capacitors
Features:
- Headphone Outputs: 6.35mm single ended, 4.4mm & 4pin XLR Balanced
- Pre-amp outputs: RCA & XLR Outputs-
- Digital input: USB, Coaxial, optical, LAN and external driver USB slot
- Digital output: Coaxial & Optical
- Output power:
- Wireless connection:
- Wifi 2.4 & 5G
- Support DLNA and AIrplay
- Two-way Bluetooth 4.2, with LDAC support
Audio support:
PCM 32/384
DSD256 native, DSD512 software
8x MQA
*Note: Due to printing error, some units of EM5 show OPA1612 in their diagram. Actual component used is OPA2211
