• SHL-10A-5609# 21-135X 2K Digital Microscope Video Microscope (w/ 10" Screen) for PCB Circuit Boards

SHL-10A-5609# 21-135X 2K Digital Microscope Video Microscope (w/ 10" Screen) for PCB Circuit Boards

Availability: In stock, usually dispatched in 1 business day

  • Price:$513.04
  • Price in reward points: 5130 Reward Points: 51
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $502.78 $492.52 $477.13 $456.61 Contact US
Quantity:

SHL-10A-5609# 21-135X 2K Digital Microscope Video Microscope (w/ 10" Screen) for PCB Circuit Boards

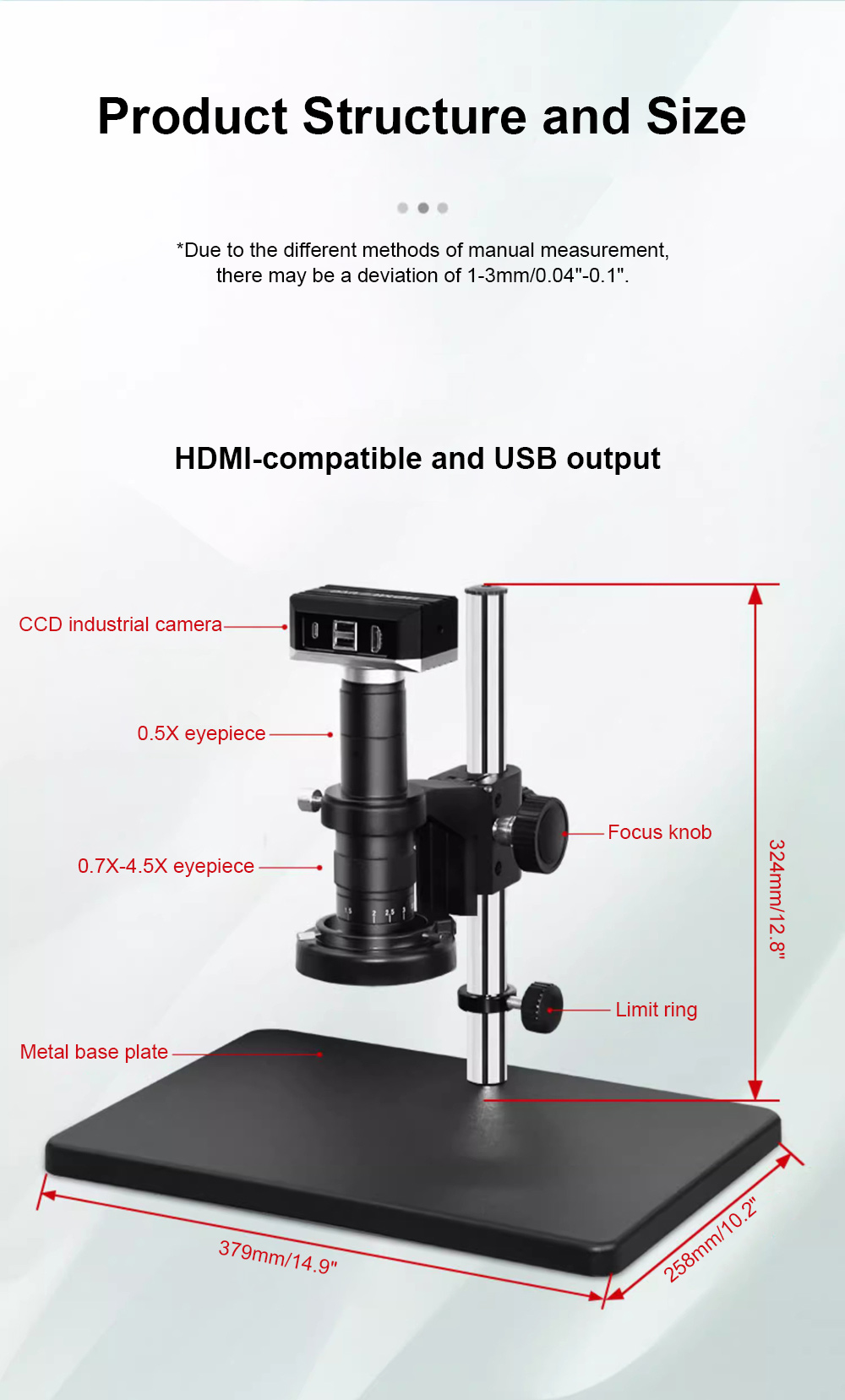

Features:

* 2K HD industrial video microscope: For taking photos, recording videos, taking professional measurements and exporting data. There are 8 sets of crosshairs.
* 21-135X continuous magnification: The brightness of LED lights is adjustable. The lens standard is 0.7X-4.5X adjustable, and the electron-optical magnification is 21-135X continuously adjustable. Therefore, this digital microscope has a wide range of applications.
* Signal output: It supports HDMI-compatible and USB output.
* Built-in measuring system: The microscope can be connected to a computer or used without a computer. It can be connected to PC software through a USB port, and can be used for measuring, photographing, video recording and storage. Measurement tools include straight line, broken line, rectangle, irregular polygon, circle, three-point fixed circle, arc, angle, point line distance, reticle, and parallel line.
* Precision measurement system: With the built-in system, the microscope can be connected to a monitor and used for measurements without the need for a PC! A variety of measurement tools are built-in, which can measure length, width, circular diameter, radius and area, arc, angle, rectangle, polygon, concentric circle, point line distance and so on.
* 2K HD industrial measurement camera: High-end sensor for SONY ensures precise measurements with clear and natural colors.
* High-definition parfocal lens: No need to adjust the focal length thanks to 21X-135X continuous zoom. Easy to use.
* Aluminum alloy bracket: The industrial-grade aluminum alloy material makes it more stable and harder.
* Widely used: Suitable for hardware processing industry, new energy industry, SMT industry, semiconductor industry, jewelry and antique identification, factory assembly line quality inspection, biological observation, medical research, etc.

Specifications:
* Pixels: 2K
* Interface: HDMI-compatible + USB output
* Accuracy: 0.001mm
* Resolution: 1920x1080
* Optical magnification: 0.7-4.5X continuous zoom
* Electron magnification: 21-135X adjustable
* Function: Photo/Video/Precision Measurement/Storage/Crosshair/Grid Line/Color/Black & White/Concentric Circles/Automatic Edge Finding/Strong Light Suppression to Eliminate Reflections/Computer Connection/Powerful

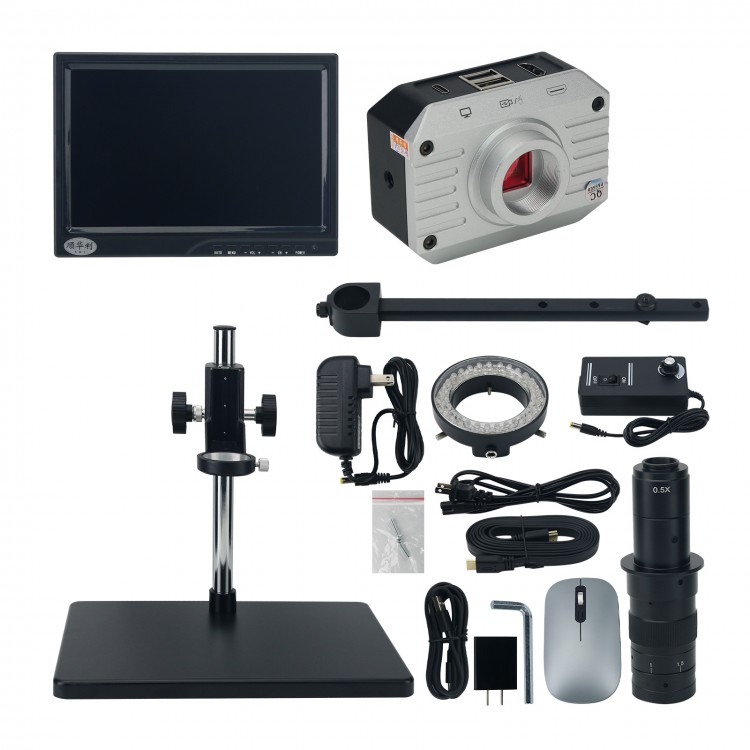

Package Included:

* 1 x Set of Microscope w/ 10" Screen

Packaging Details:
* Weight: 10kg
