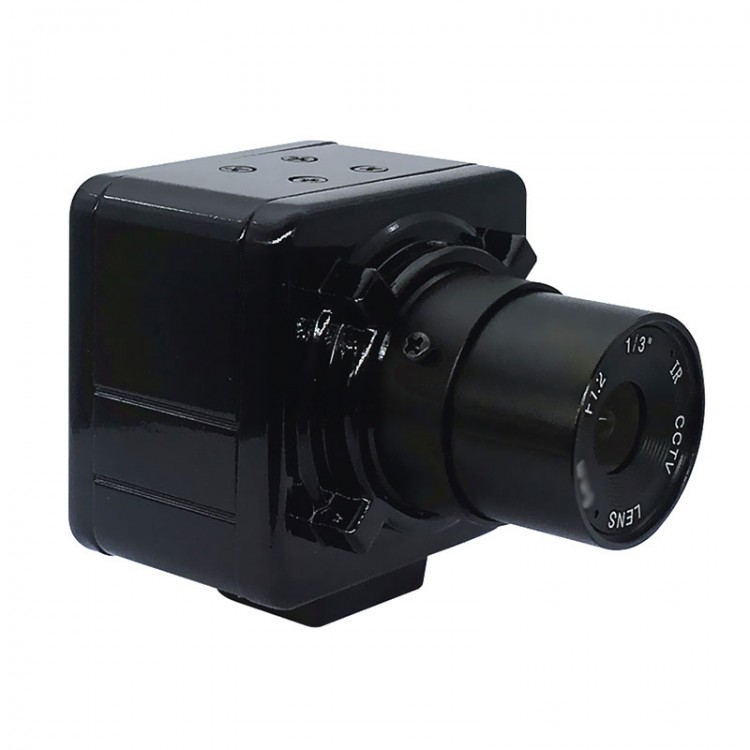

SHL-200W 2MP HD CCD Industrial Camera Driver-Free with Measurement Function (4mm Focal Length)
Features:
* High-speed USB2.0 interface, with speed up to 480Mb/s
* 1/3-inch progressive scan image sensor with 2 million pixels in hardware
* Good color reproduction at different color temperatures
* Brightness, contrast, saturation, sharpness and gamma value can be adjusted by software
* Automatic white balance and automatic exposure
* Supports Windows and related operating systems that support UVC architecture
* The maximum resolution is 1600*1200
* Main functions: image display, taking photos, video recording, measurement, etc.
Product Parameters:
* Sensor: 1/3" 2MP color CMOS
* Resolution and frame rate: MJPG: 640*480, 800*600 at 30fps, 1600*1200, 1280*960 at 15fps; YUY2: 640*480 at 30fps, 800*600 at 20fps, 1280*960, 1600*1200 at 5fps
* Pixel: 2.8μm x 2.8μm
* Sensitivity: 0°C~50°C 1.8V/lux-sec at 550nm
* Signal-to-noise ratio: 42.3dB
* Formats: YUY2 and MJPG
S-EYE Imaging Software:
S-EYE is a dynamic image processing software developed for camera imaging. It has the following features:
* Supports a variety of cameras. You can switch and use cameras at any time.
* The image preview is rendered by GPU. It supports high-resolution and high-frame-rate dynamic image display.
* Supports dynamic image measurement function.
* It is simple and convenient to operate the software interface.
Package Included:
* 1 x Set of Industrial Camera
Packaging Details:
* Weight: 0.3kg
