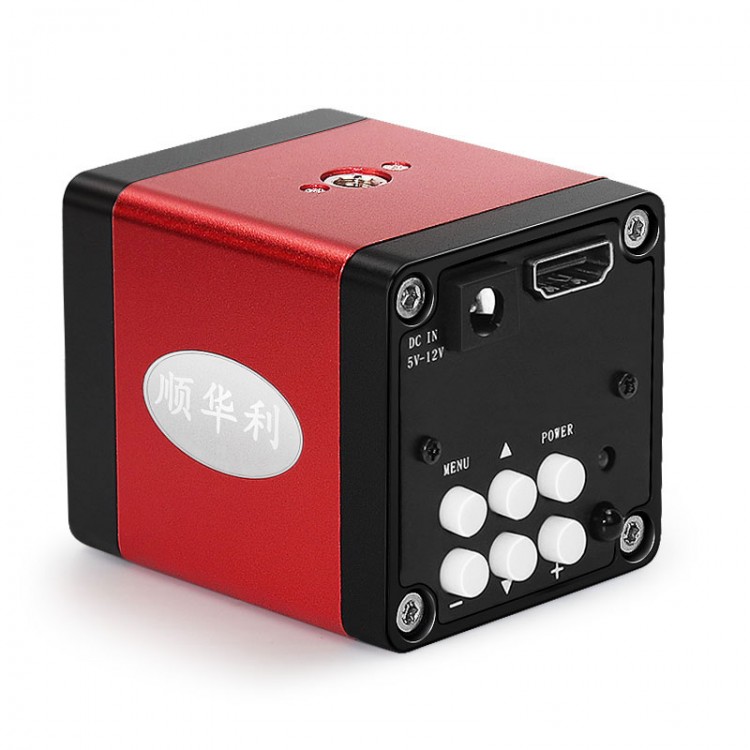

SHL-236-2# Red 2MP 1080P Industrial Camera Microscope Camera Color CCD w/ HDMI-compatible Interface

SHL-236-2# Red 2MP 1080P Industrial Camera Microscope Camera Color CCD w/ HDMI-compatible Interface

Features:
- With a 2MP back-illuminated CMOS image sensor
- A 1/3-inch image sensor
- HDMI-compatible 1080P 60 fps image output
- Supports manual exposure, automatic exposure and one-key exposure. Exposure compensation value can be adjusted
- Supports manual/automatic white balance/one-key white balance. Red, green and blue are adjustable
- Provides 8 line drawing functions. The color, thickness, and position of the lines can be adjusted
- Shows/closes the center crosshairs
- Supports Chinese and English menu languages (English by default)
- Saves the setting parameters when it is turned off
- Can be used to observe circuit boards, insects, banknotes and textiles

Specifications:
- Model: SHL-236-2#
- Sensor: 1/3-inch 2MP CMOS sensor for Sony
- Pixel size: 2.8μm x 2.8μm
- HDMI-compatible output: 1920*1080/60FPS
- Lens mount: C/CS
- Exposure: Automatic/manual/one-key exposure
- Exposure compensation: Supported
- White balance: Automatic/manual/one-key white balance and adjustable RGB
- Mirror image: Supported
- Input voltage: DC 5V-12V
- Line: Supports 8 straight lines, with adjustable color, thickness and position
- Center line: Supported
- Menu language: English/Chinese
- Remote control: Supported
- Net weight: 140g/0.3lb
- Product dimensions: 49mm x 49mm x 59mm/1.9" x 1.9" x 2.3"
- Material: Metal
- Band: 650NM
- Function: Built-in 8 groups of reticles with adjustable position
- Video recording: Not supported

Package Included:
- 1 x Set of Industrial Camera

Packaging Details:
- Weight: 0.45kg
- Packaging size: 145*130*70mm

Note:
- This product is not a biological microscope, so it cannot be used to observe sperm, cells, bacteria, mites and other microorganisms.
