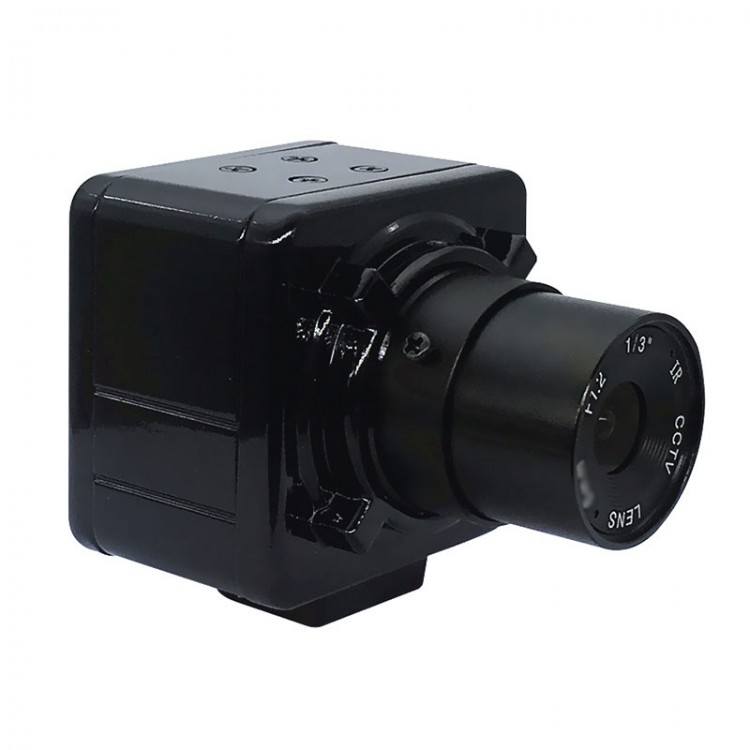

SHL-500W 5MP HD Color USB Industrial Camera CCD Microscope Electronic Eyepiece (4mm Focal Length)

SHL-500W 5MP HD Color USB Industrial Camera CCD Microscope Electronic Eyepiece (4mm Focal Length)

Specifications:
* Model number: SHL-500W
* Lens size: 1/2.5"
* Pixel size: 2.2μmx2.2μm
* Maximum effective pixels: Full HD 2592(H)X1944(V)
* Output image format: MJPEG / YUY2 (YUYV)
* Supported resolutions: 2592X1944 at 30fps/2048X1536 at 30fps/1600X1200 at 30fps/1280X800 at 30fps/ 1024X768 at 30fps/800X600 at 30fps/640X480 at 30fps/320X240 at 30fps/160X120 at 30fps
* Spectral range: 400nm-1030nm
* Filter: 650nm low-pass filter
* Shutter type: Electronic rolling shutter / frame exposure
* USB protocol: USB2.0 HS/FS
* Interface type: USB2.0 high speed
* Supported OTG protocol: USB2.0 OTG
* Supported driverless protocol: USB Video Class (UVC)
* Automatic exposure control (AEC): Supported
* Automatic white balance: Supported
* Automatic gain control (AGC): Supported
* Adjustable parameters: Brightness, contrast, color saturation, hue, sharpness, gamma, white balance, backlight contrast, and exposure
* Operating voltage: DC 5V
* Operating current: 120mA~220mA
* Operating temperature: 0 to 60°C
* Storage temperature: -20 to 75°C
* Cable length: 2m/6.6ft (cable length can be customized)

Supported Systems:
* For WinXP/Vista/Win7/Win8/Win10
* For Linux with UVC (above Linux-2.6.26)
* For MAC-OS X 10.4.8 or later
* For Wince with UVC
* For Android 4.0 or above with UVC

Supported Vision Software:
* For Halcon, Labview and Matlab

S-EYE Imaging Software:
S-EYE is a dynamic image processing software developed for camera imaging. It has the following features:
* Supports a variety of cameras. You can switch and use cameras at any time.
* The image preview is rendered by GPU. It supports high-resolution and high-frame-rate dynamic image display.
* Supports dynamic image measurement function.
* It is simple and convenient to operate the software interface.

Package Included:
* 1 x Industrial Camera
* 1 x Lens Cover
* 1 x USB Cable

Packaging Details:
* Weight: 0.3kg
