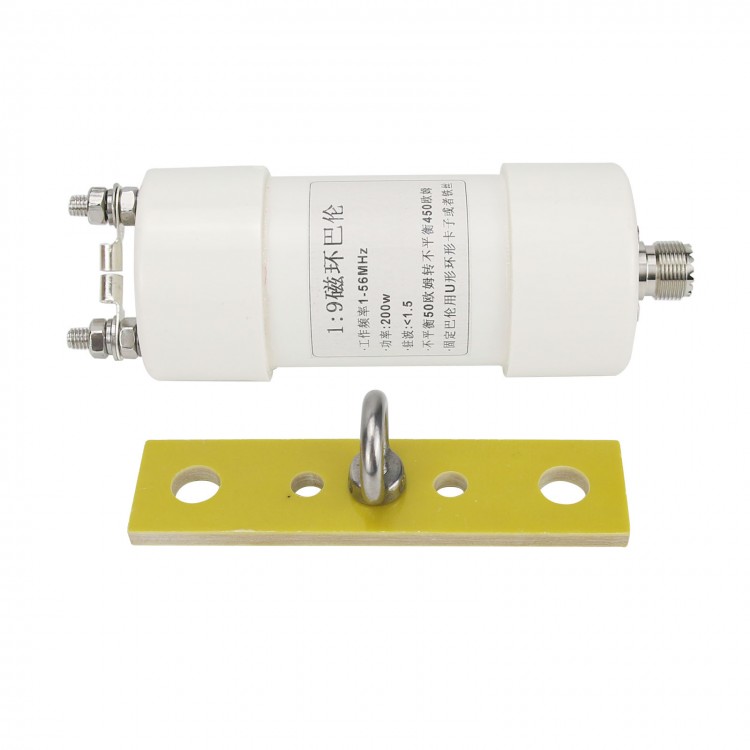

Shortwave 1:9 Balun 200W 1-56MHz Shortwave Antenna Balun 1:9 Input 50Ω To Output 450Ω
Specifications:
1. Conversion Ratio: 1:9
2. Input Impedance: 50 ohms (unbalanced)
3. Output Impedance: 450 ohms (unbalanced). Suitable for long-line shortwave antenna
4. Frequency Range: 1-56MHz
5. Standing Wave: Less than 1.5
6. Withstanding Power: 200W
7. Dimensions: Outer Diameter 57x175mm
8. Weight: 360g
9. With epoxy resin plate, 304 stainless steel ring and copper holes for connecting to 2pcs oscillators
10. Waterproof measures have been taken for the balun. Waterproof measures should be taken between block M and your cable connector.
Package Included:
- 1 x 1:9 Balun
Note: If you need larger powers and other conversion ratios, please contact us.
