Shortwave Radio Transceiver HF with IF Output All Bands Covering SSB CW AM FM RTTY PSK XIEGU X5105
Features:
➤ Great Hardware: Xiegu X5105 is equipped with a 3.6 inch large LCD screen and 3800mAh capacity. Its duration time is 6 to 8 hours, which enables longer outdoor operation time.
➤ Built in ATU for quick and easy outdoor operations.
➤ All Bands Covering: Covering all modes of HF, 50MHz band. (SSB/CW/AM/FM/RTTY/PSK).
➤ Smart Electricity Management: The maximum output power is up to 5W. It can work in the range of 9-15V, featuring lower standby current for longer working time.
➤ Compact Size: Small in size 160 x 160 x 46mml; light equipment weighs about 0.94kg.
Basic Specifications:
- Frequency Range:
Receiving: 0.5MHz~29.7MHz; 50.000MHZ~54.000MHz
Transmitting: 1.8MHZ-54MHz (Amateur band only)
- Operating Modes: A1A, A3E, J3E, F3E
- Number of Channels Stored: 100
- Antenna Impedance: 50Ω (Unbalanced)
- Power Supply: DC 9.0V~15.0V
- Operating Temperature: -10℃ to 50℃
- Frequency Stability: ± 2ppm after turn on the radio for 40 minutes
- Current: Receiving: 500mA Max.; Transmitting: 2.5A Max.
- Dimension: 160 x 100 x 46mm (Not including the size of protrusion)
- Weight: 0.94kg
Parameters of Receiver Unit:
- Receiver Structure: double conversion superheterodyne + digital baseband processing
- IF Frequency: 70.455MHz/10.695MHz
- Receiver Sensitivity:
SSB/CW/FM AM
0.5~1.79MHz 10uV
1.8~27.999MHz 0.25uV 2uV
28~30MHz 0.25uV 2uV
50~54MHz 0.25uV 2uV
- Selectivity:
SSB -6dB: 2.4kHz/-60dB: 4.6kHz
CW -6dB: 500Hz/-60dB: 2000Hz
AM -6dB: 6.0kHz/-60dB: 25.0kHz
FM -6dB: 12.0kHz/-60dB: 25.0kHz
- Image Rejection: 70dB
- IF Suppression: 60dB
- Audio Output: 0.6W (4Ω, ≤10% THD)
Parameters of Transmitter Unit:
- Transmitter Power:
SSB/CW/FM AM
HF/50MHz ≥4.5W 1.5W
- Modulation Modes: SSB balanced modulation/AM low level amplitude modulation/FM Variable reactance
- Spurious Suppression: ≥45dB
- Carrier Suppression: ≥40dB
- Sideband Suppression: ≥50dB
- SSB Frequency Response Range: 300Hz ~ 2700Hz (-6dB)
- FM Maximum Frequency Offset: ±5kHz
- Microphone Impedance: 200 ~ 10kΩ (conventional: 600Ω)
- Antenna Tuner Storage: Store one point every 100kHz interval
- First Tuning Time for Antenna Tuner: ≤10s
- Read Tuning Time: ≤2s

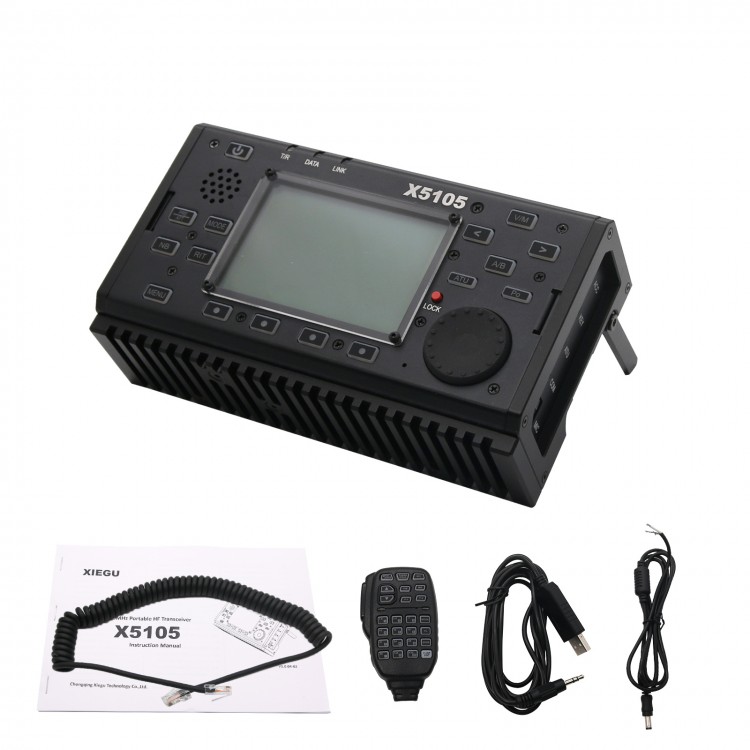

Package Included:
- 1 x Xiegu X5105 Transceiver
- 1 x User Manual
