Description:

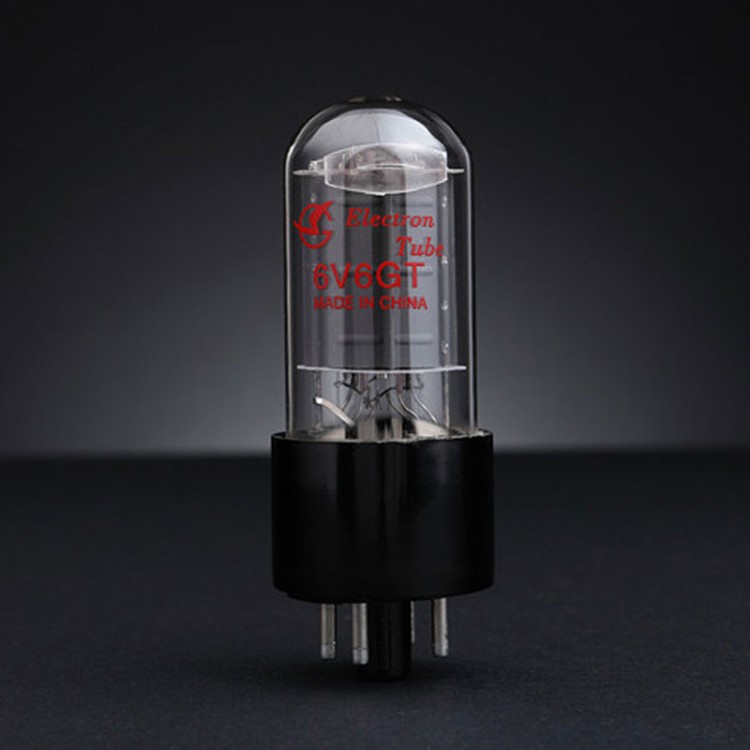

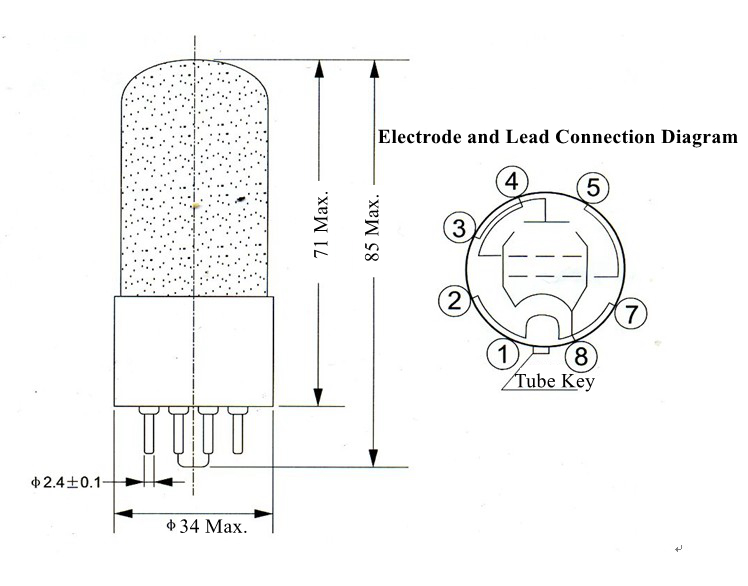

The beam power tetrode 6V6GT is a glass-clad octo-pin tube with an anode limit dissipation power of 12W, which is used for A1 and AB1 power amplification.

6V6GT is similar to 6P6P and can be used interchangeably.

Hot Wire Heating:
UH …………………………6.3 V
IH…………………………0.45 A

Interelectrode Capacitance:
Input capacitance……………………9 2.6 PF
Output capacitance……………………0.7 0.7 PF
Trans-circuit capacitance……………………4 3.8 PF

Recommended Working Status (reference value):
Single tube A1 class amplification limit rating
Anode voltage……………………315 V
Second grid voltage………………285 V
Anode dissipation power………………12 W
Second grid dissipation power..................2 W
Voltage between the cathodes of the heating wire …………±100 V
First grid resistance
Fixed bias……………………0.1 MΩ
Self-bias voltage……………………0.5 MΩ
Working status
Ua……………………180 250 315 V
Ug2……………………180 250 225 V
-Ug1……………………8.5 12.5 13 V
üg(pk)………………8.5 12.5 13 V
Ia(0)……………………29 45 34 mA
Ia(max.sig)…………30 47 35 mA
Ig2(0) ………………3 4.5 2.2 mA
Ig2(max.sig) ………4 7 6 mA
ri……………………50 50 80 kΩ
Gm……………………3.7 4.1 3.75 mA/V
RL……………………5.5 5 8.5 kΩ
Pont……………………2 4.5 5.5 W
Dtot……………………8 8 12%

Push-pull Class AB1 Amplification:
Working status (two-pipe value)
Ua…………………………250 250 V
Ug2……………………250 285 V
-Ug1……………………15 19 V
üg(g1-g1.pk)………………30 38 V
Ia(0)…………………………70 70 mA
Ia(max.sig)………………79 92 mA
Ig2(0) ……………………5 4 mA
Ig2(max.sig) ……………13 13.5 mA
ri…………………………60 70 kΩ
Gm…………………………3.7 3.6 mA/V
RL……………………10 8 kΩ
Pout…………………………10 14 W
Dtot…………………………5 3.5%

Package Included:
- 1 x Electron Tube
