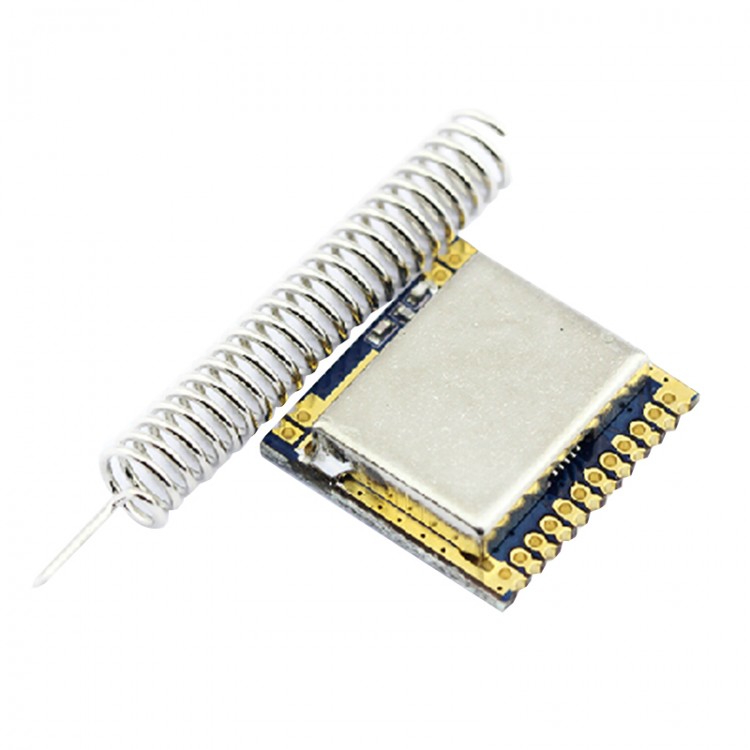

SI4463-SMT Wireless Transceiver Module With Springs Antenna

SI4463-SMT Wireless Transceiver Module With Springs Antenna

Description:
- XL4463-SMT wireless module using Silicon Labs' Si4463 B1 version, is well-designed chip. It is a complete, compact, low-power wireless transceiver module. Si4463 is a high performance low current 433MHz transceiver and it is one of EZRadioPRO series Module, including the complete transmitter and receiver. Maximum sensitivity is-126dBm, the maximum output power: +20 dBm, support (G) FSK, 4 (G) FSK, (G) MSK, OOK and ASK modulation, the data rate range: 100bps ~ 1Mbps, Operating voltage: 1.8V ~ 3.6 V, shutdown current: 30nA, standby current: 50nA. Si4463 has a narrow band and a better applications and licensing phase noise , with blocking and select properties.

Feature:
- Module device uses high-frequency specifications inductor-capacitor, crystal 10ppm high precision specifications ensure that the module wireless features are adequately represented.
- All modules have been professional equipment testing, consistency and stability of the modules are fully protected.
- SPI interface, small size dimensions, stamp holes convenient interface, embedded design, the full expansion of distance
- With a shield, better anti-interference performance

Specification:
- Frequency range :410-440M (antenna matching optimum range, the domestic is free ISM band)
- Sensitivity: up to-126dBm (0.5Kbps)
- The maximum output power of the wireless transmitter: 20dBm (1.2Kbps, 433M)
- The data transfer rate :0.1-1Mbps
- The modulation mode: FSK, GFSK, 4GFSK and OOK
- Power :1.8-3 .6 V
- Low consumption in power-down mode is 30nA (4.21ms), in the standby mode 50nA;
- Receive current 10/13mA, the maximum emission current 85mA.
- The digital received signal strength indicator (RSSI)
- Timed wake-up function, wireless wake-up function (WUT)
- And antenna matching and bi-directional switch control
- Can be configured packet structure
- The former synchronization signal detection
- 64-byte receive data register (FIFO)
- On-chip integration of low battery detection
- On-chip temperature sensor and 8 Analog to Digital Converter
- The working temperature range: -40 ~ 80 ° C (temperature characteristics and product consistency is much better!)
- Integrated voltage regulator
- Fast wake-up and frequency hopping function
- Power-on reset function
- Built-in crystal error adjustment function
- The chip automatically calculate and check CRC-16, and supports three 16-bit CRC polynomial

Package Listing:
- XL4463-SMT wireless module * 2
- Silver 433M antenna * 2
- Reference program information package sent directly after purchase online or send email
