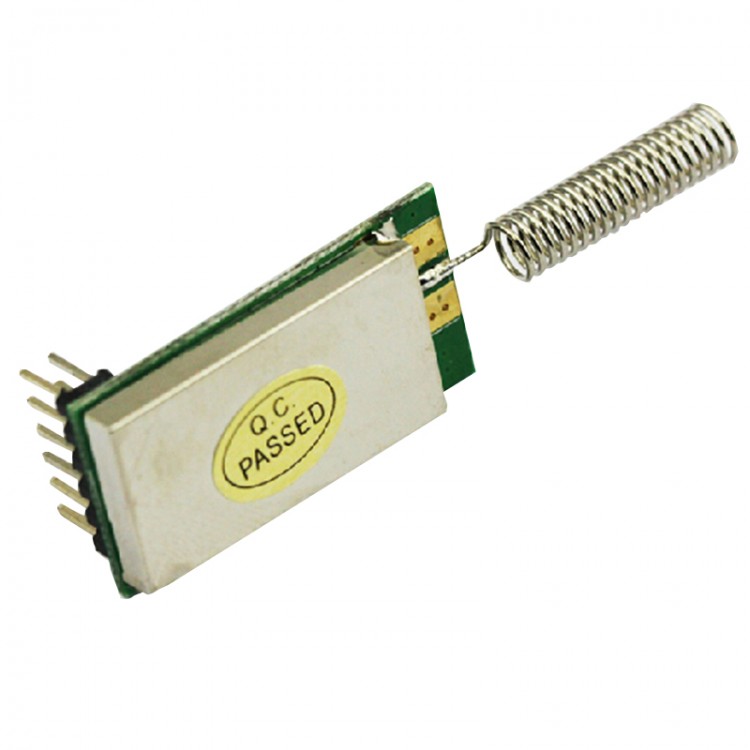

SI4463 Wireless Transceiver Module With SMA Antenna 410-440M 2000M

SI4463 Wireless Transceiver Module With SMA Antenna 410-440M 2000M

Description:
- XL4463-SMT wireless module using Silicon Labs' Si4463 B1 version, is well-designed chip. It is a complete, compact, low-power wireless transceiver module. Si4463 is a high performance low current 433MHz transceiver and it is one of EZRadioPRO series Module, including the complete transmitter and receiver. Maximum sensitivity is-126dBm, the maximum output power: +20 dBm, support (G) FSK, 4 (G) FSK, (G) MSK, OOK and ASK modulation, the data rate range: 100bps ~ 1Mbps, Operating voltage: 1.8V ~ 3.6 V, shutdown current: 30nA, standby current: 50nA. Si4463 has a narrow band and a better applications and licensing phase noise , with blocking and select properties.

Feature:
Module device uses high-frequency specifications inductor-capacitor, crystal 10ppm high precision specifications ensure that the module wireless features are adequately represented.
All modules have been professional equipment testing, consistency and stability of the modules are fully protected.
SPI interface, 2.54mm double pin, convenient interface, embedded design.
SMA antenna interface, easy to match a variety of SMA interface antenna fully extended distances
With a shield, better anti-interference performance

Specification:
- frequency range :410-440M (antenna matching optimum range, the domestic is free ISM band)
- Sensitivity: up to-126dBm (0.5Kbps)
- the maximum output power of the wireless transmitter: 20dBm (1.2Kbps, 433M)
- the data transfer rate :0.1-1Mbps
- the modulation mode: FSK, GFSK, 4GFSK and OOK
- power :1.8-3 .6 V
- low consumption in power-down mode is 30nA (4.21ms), in the standby mode 50nA;
- Receive current 10/13mA, the maximum emission current 85mA.
- the digital received signal strength indicator (RSSI)
- timed wake-up function, wireless wake-up function (WUT)
-and antenna matching and bi-directional switch control
- can be configured packet structure
- the former synchronization signal detection
- 64-byte receive data register (FIFO)
- on-chip integration of low battery detection
- on-chip temperature sensor and 8 Analog to Digital Converter
- the working temperature range: -40 ~ 80 °C (temperature characteristics and product consistency is much better!)
- integrated voltage regulator
- fast wake-up and frequency hopping function
- power-on reset function
- built-in crystal error adjustment function
- the chip automatically calculate and check CRC-16, and supports three 16-bit CRC polynomial

Package Listing:
- XL4463-DO1S wireless module * 1
- SMA Interface 433M antenna * 1
- Reference program information package sent directly after purchase online or send email
