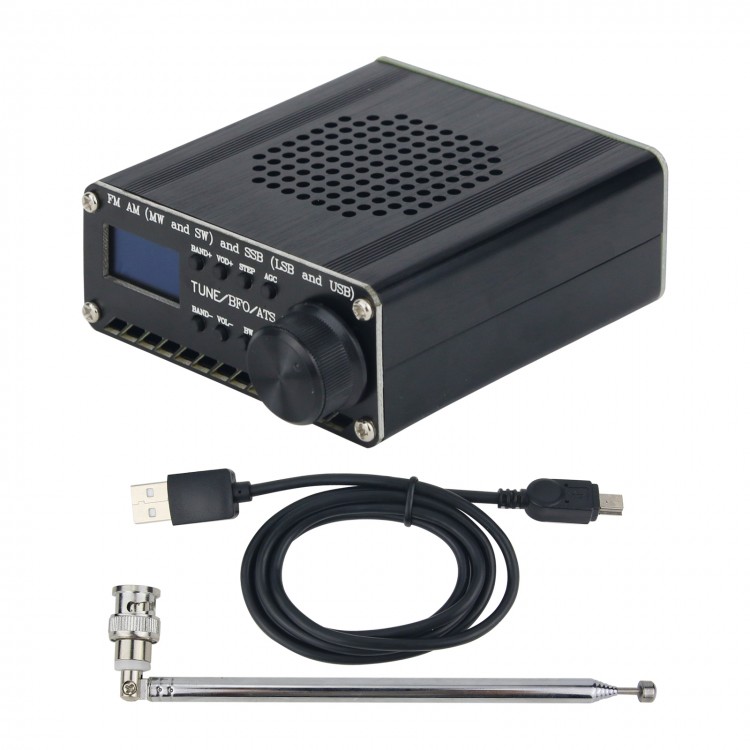

SI4732 All Band Radio Receiver FM AM (MW And SW) SSB (LSB And USB) w/ Shell Antenna Built-in Battery
Attention:
It is forbidden to squeeze the knob vigorously, otherwise it is easy to damage the encoder.
Electrical Parameters:
- Use a 3.6v lithium battery
- Support USB charging
- Audio output supports headset 3.5MM
- Support 8-ohm speaker 1W output
- FM supports earphone antenna
- Antenna interface uses BNC
- The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible
- Size: 88*88*38mm
Features of This Sketch:
1) FM, AM (MW and SW) and SSB (LSB and USB);
2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz;
3) 22 commercial and ham radio bands pre-configured;
4) BFO Control;
5) Frequency step switch (1, 5 and 10KHz).
Attention:
- If you modify the parameters, please refer to the actual product.
Package Included:
- 1 x Set of Radio Receiver
Note:
- It is assembled and ready to use.
