Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $28.01 | $27.44 | $26.58 | $25.44 | Contact US |
Specifications:
- Power supply voltage: + 5V
- Output frequency F0 = F1 = 2.5K to 200MHz F2 and F1 share a phase-locked loop, configurable frequency division ratio
- Output interface: SMA female
- Configurable minimum step: 1Hz (with STM32 + 1.3 inch TFT)
- Size: length * width = 5 * 5CM (excluding SMA protruding from the right) Height: 2.2CM (height of copper column included)
- Technical support provided: provide PDF schematic diagram and STM32 code
- Delivery:
SI5351 core board (shipped with shielding box and electrostatic packaging bag)

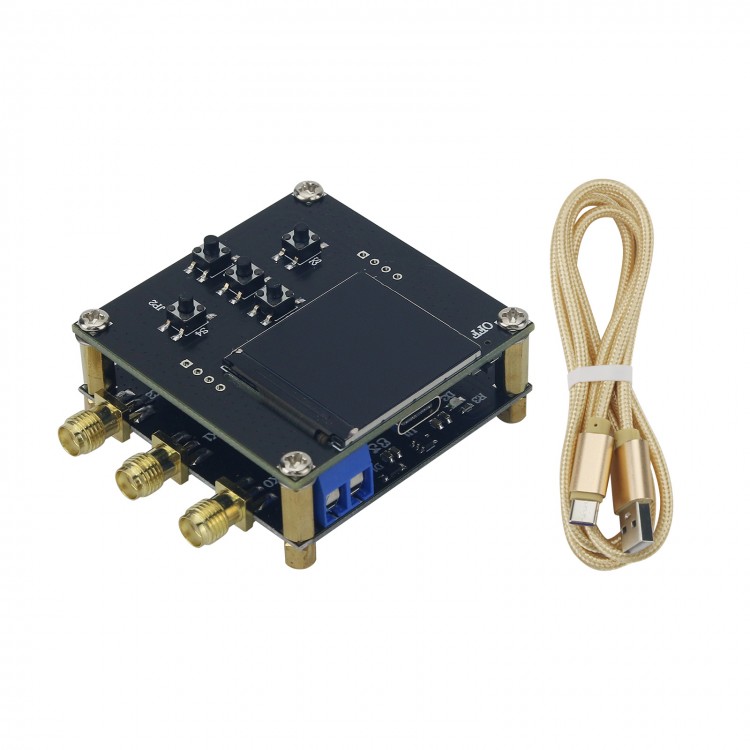

SI5351 core board + STM32 (including 1.3-inch TFT) (with TYPE-C line) built-in program USB power supply can work

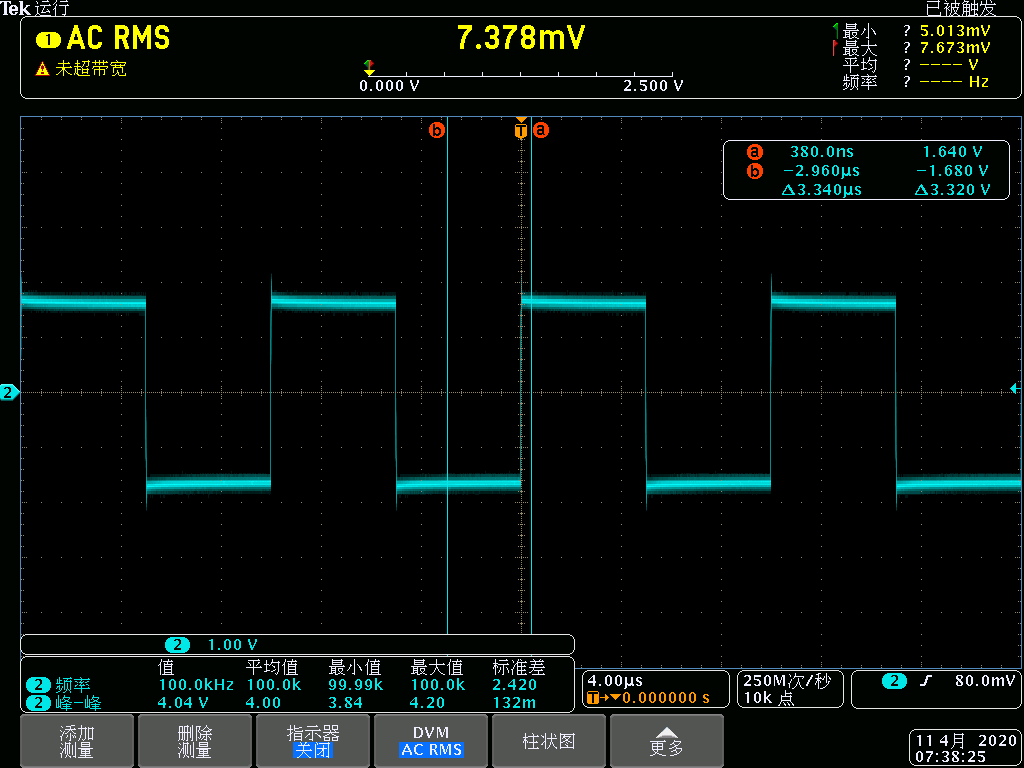

Module actual measurement oscilloscope (Please note that high frequency band need to be set the oscilloscope at 50 ohm impedance)
