SI5351A-V2 Core Board Adjustable Clock Signal Generator Module 0.5PPM VCXO + STM32 Main Control Board with TFT LCD
Description:

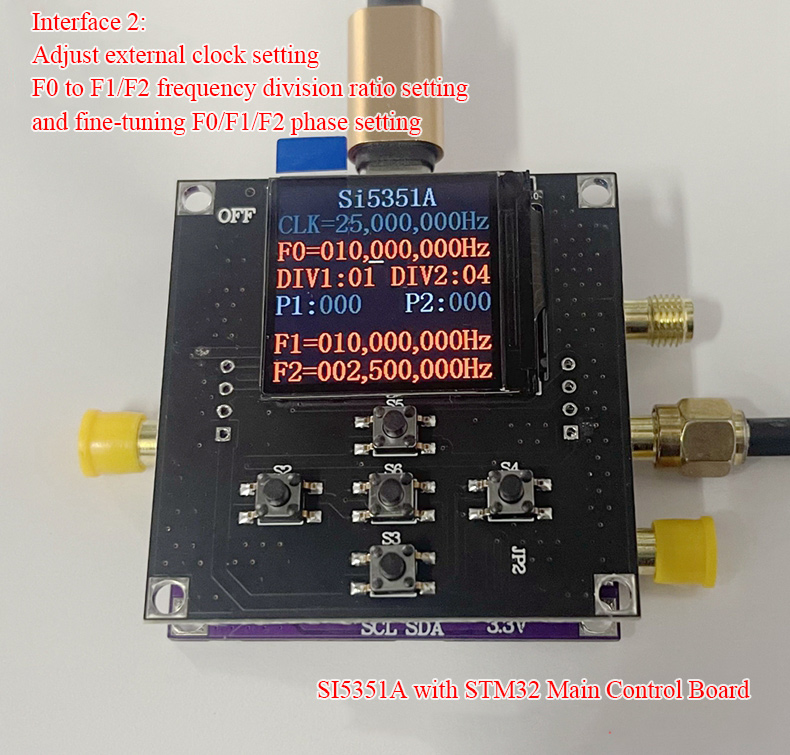

- STM32 V2 version: Supports all functions of V1, with the addition of variable external clock input settings. Interface 2: F0, F1, and F2 share a phase-locked loop, which is phase dependent. The division ratio between F1 and F2 can be set, and the phase relationship between three channels can be fine tuned at the same frequency, with a maximum ratio not exceeding 25°, which is frequency dependent.
Specification:
- Power supply voltage: +5V
- Output frequency: F0 = F1 = 2.5k - 200MHz
- Output interface: SMA female connector
- Support external clock input: 10M, 15M, 20M, 25M
- Configurable minimum step: 1Hz (equipped with STM32 + 1.3-inch TFT)
- Product size: 5 x 5 x 2.2cm
Package Included:

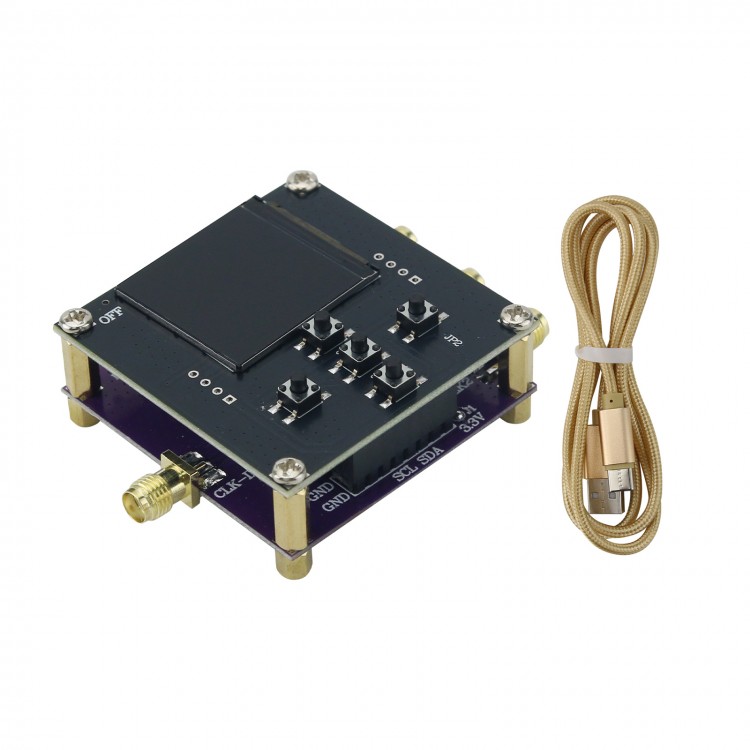

- 1 x SI5351A-V2 Core Board
- 1 x STM32 Main Control Board (with 1.3-inch TFT)
- 1 x Type-C Cable
