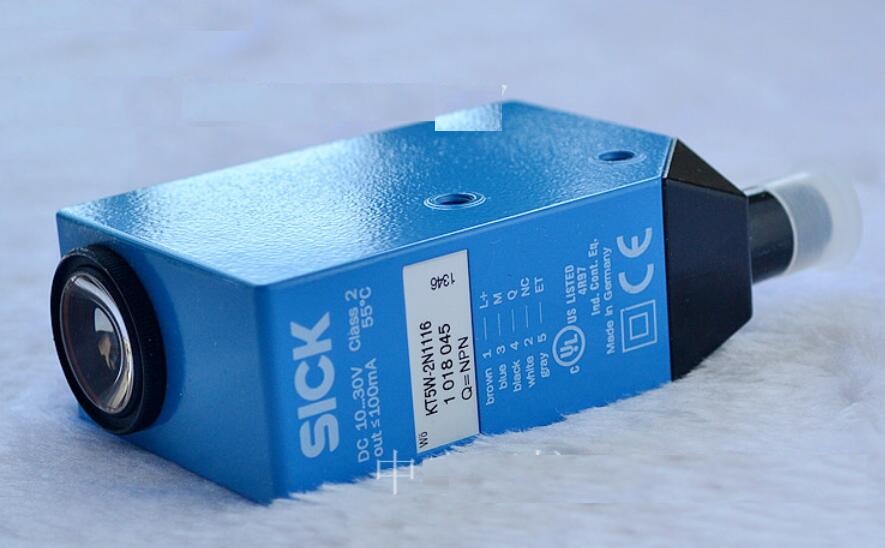

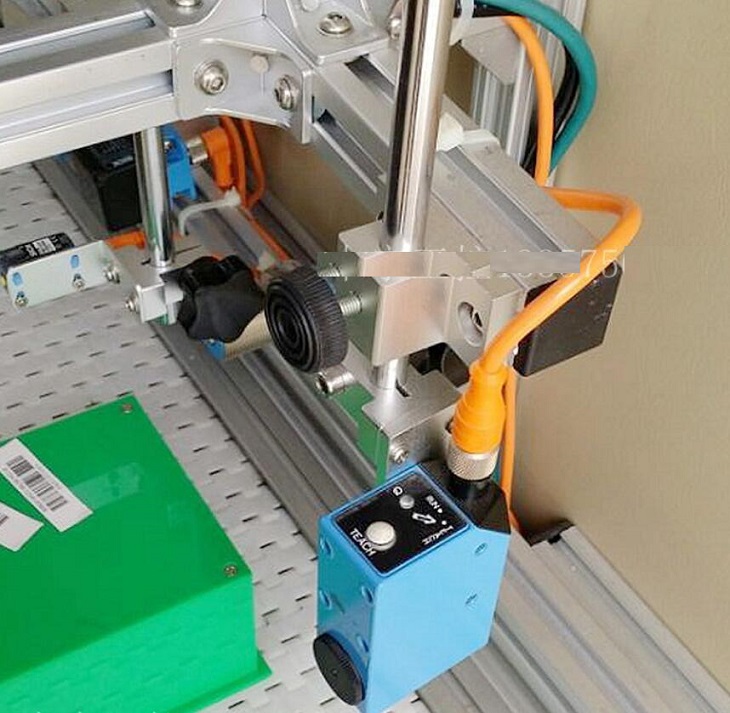

SICK KT5W-2N1116 Contrast Sensor Color Code Sensor NPN Authentic Photoelectric Switch

SICK KT5W-2N1116 Contrast Sensor Color Code Sensor NPN Authentic Photoelectric Switch

Features:
- Tough,metal housing
- Various teach-in methods via control panel or control cable
- Detection reliability due to 3-color RGB LED technology
- Switching frequency of 10 kHz
- Various sensing distances and light spot directions
- M12 plug can be rotated 90°

Benefits:
- 3 color LED light source technology,all print marks and color combinations are reliably detected,ensuring high machine throughput
- Reliable operation,even with jittering webs and high-gloss materials
- High positioning accuracy improves packaging quality
- Various sensing distances,light spot directions and light emissions make individual configuration and simple integration into the production process possible

Specification:
- Sensing distance 1):10 mm
- Sensing distance tolerance:± 3 mm
- Light source 2):LED
- Wave length:470 nm,525 nm,640 nm
- Light emission:Long and short side of housing,exchangeable
- Light spot size:1.2 mm x 4.2 mm
- Light spot direction 3):Vertical
- Type of light:Visible blue light,Visible green light,Visible red light
- Dimensions:30.4x56x99mm(WxHxD)
- Housing design (light emission):Rectangular
- Teach-in mode:Static 2-point teach-in

1)From front edge of lens
2)Average service life:100,000 h at TU = +25 °C
3)In relation to long side of housing

Mechanics/electronics:
- Supply voltage:10 V DC....30 V DC
- Ripple 1):≤ 5 Vpp
- Power consumption 2):< 80 mA
- Switching frequency 3):10 kHz
- Response time 4):50 us
- Output type:NPN: HIGH = approx.VS/LOW ≤ 2 V
- Switching mode:NPN
- Induction output:PNP/NPN
- Output frequency:10000
- Input, teach-in (ET):NPN:,Run:U = 10 V....< UV,Teach: U < 2 V
- Retention time (ET):25 ms,non-volatile memory
- Connection type:Male connector M12,5-pin
- Protection class 5):II
- Circuit protection:Output Q short-circuit protected,Interference pulse suppression,UV connections,reverse polarity protected
- Enclosure rating:IP 67
- Weight:400 g
- Housing material:Metal,Zinc diecast
- Output current Imax.:100 mA
- Supply voltage:10 V DC....30 V DC 6)

1)May not exceed or fall below Uv tolerances
2)Without load
3)With light/dark ratio 1:1
4)Signal transit time with resistive load
5)Reference voltage DC 50 V
6)Limit values: operation in short-circuit protected network max.8 A

Ambient data:
- Shock load:According to IEC 60068
- Ambient operating temperature:-10°C~+55°C
- Ambient storage temperature:-25°C~+75°C

Using guide:
- KT5W-2N1116 sensitivity modulation LED red,auto given green,blue 3 light source.
- Aiming the white button to the color code,press it for 1 seconds and move the color code,press the white button once.
- Connection:Brown cable:+;blue cable:0V;black cable:OUT

Package List:

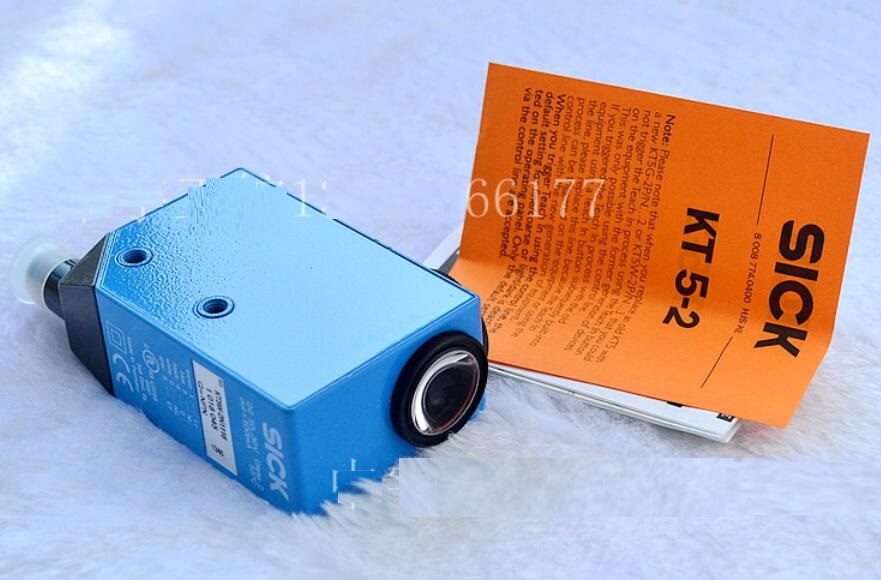

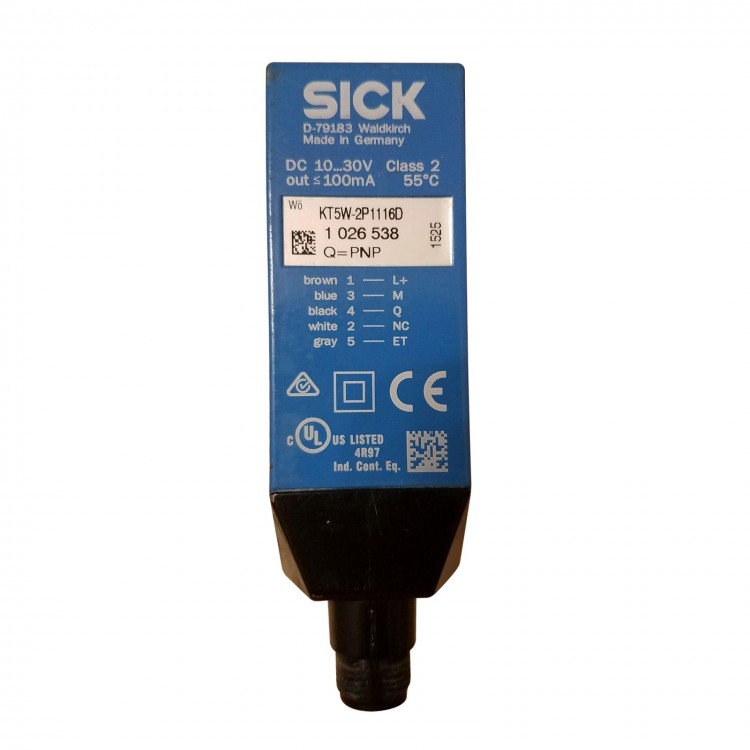

- 1 x SICK KT5W-2N1116 Contrast Sensor

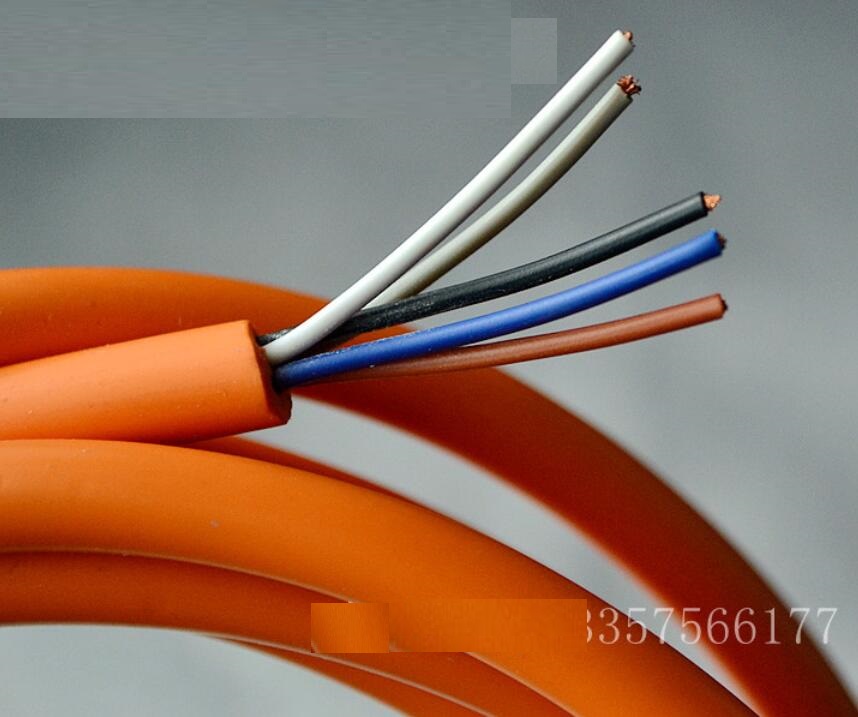

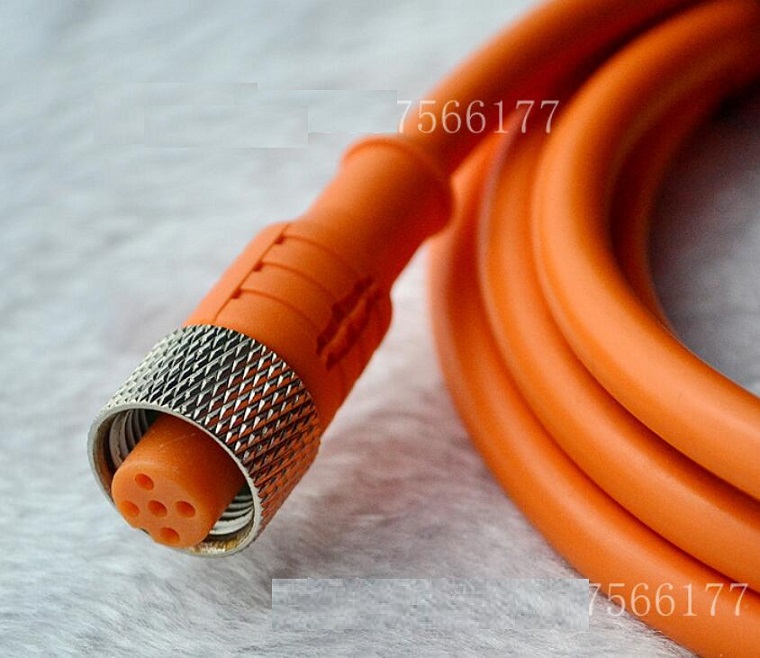

- 1 x Cable
- 1 x User manual
