- Metal detectors use electromagnetic induction principle, the use of alternating current through the coil, generating a rapidly changing magnetic field. The magnetic energy inside the metal objects can induced eddy currents. Eddy current will generate a magnetic field, upside down affect the original magnetic field, causing the detector to issue song.
- The use of this detector can detect is not buried deep mineral deposits, including native gold, gold, gold, and other various rich sedimentary sand. Detection of natural gold nuggets want to look for the metal coins,with balance; most gold under a higher degree of mineralization in the rocks, so it must be carefully adjusted to balance. In the ore, gold with extremely broken forms and blends in with the sands, sediment and heavy metal ore often has a large number of signals and black metal, caused by the mixture of the
same, but the reaction than the pure metal is relatively weak, and generally sound area relatively wide.
Features:
1. Apply an electromagnetic field to detect the presence of a concealed metal object.
2. Designed to find gold & silver jewelry, coins and other metal in the ground, and can also find land mines.
3. Adjustable height of metal detector, with ground balance & recognition of explore modes.
4. Lighting and audio indicate the detection of metal.
5. Powered by a rechargeable 7.4V lithium battery .
6. Adjustable sensitivity for both large and small detection scope.
7. Earphone sound mode for using in noisy environment or private search in crowded places.
8. Low battery indication, lighting lamp
Specification:
Color Black Material: ABS Plastic + Iron Detectable Indication Audio / lED light Max Detection Depth 2.5m (2.5m (1*1m Aluminium board)) Operating Mode Ground Balance/Discrimination Signal Frequency 7.2kHz Object Detectable Ferrous& Non-ferrous Metal Distinguish Battery Indication yes Min Detection Diameter: 3.5cm / 1.38" Backlight Display --- Searchlight yes Earphone Jack yes Metal Identification --- Underground yes Rated Power ≤1.0W Operation Tempearture 0°C ~ 50°C Storage Tempearture -20°C ~ 60°C Power 1200mA li-Battery Product Net Weight / Size 2220g / 30*30*113.5cm Sensitivity: Applicable for detecting gold, silver, aluminum, copper,
iron, and rare metals.
Application:
Testing metal foreign body of raw materials, fuel and food, Detection of
underground pipeline & line, Archaeology, Exploration, Found buried
treasures of gold, silver and metal artifacts,The acquisition of scrap metal
industry, Customs and safety inspection, Police department detective search,
Detection of interpol search, Checking metal foreign bodies in express
delivery and luggage.
Packing Contents See description| Diagram Description and Battery Installation: | |

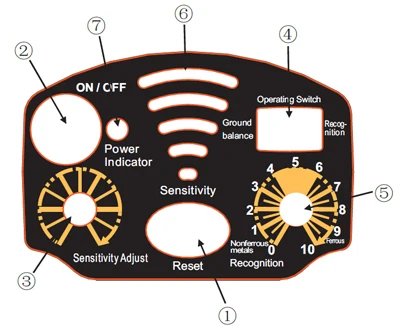

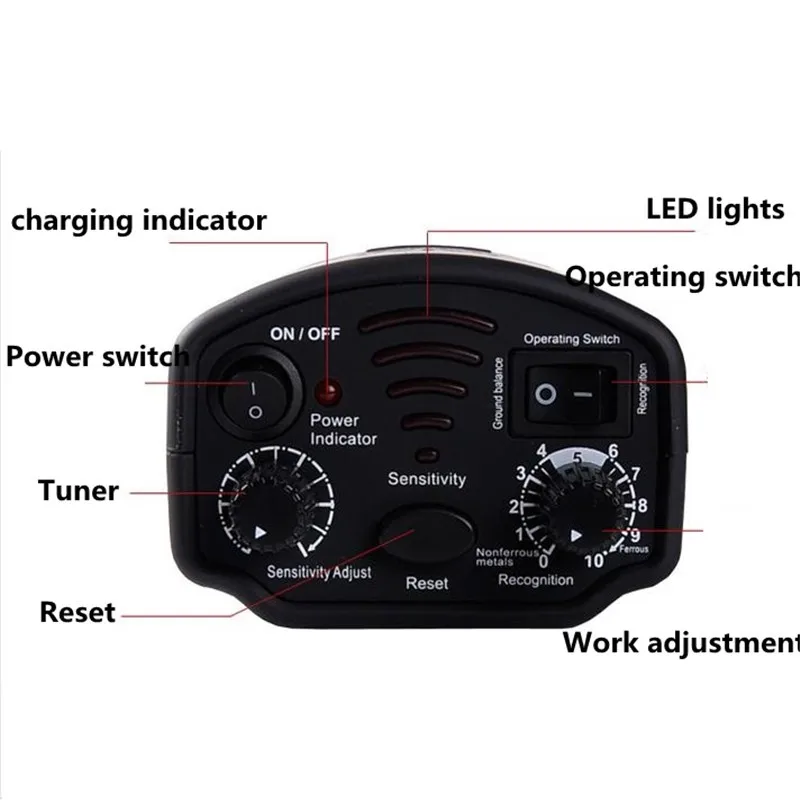

 | ①Reset ②Power ON / OFF ③ Sensitivity Adjust ④Operating Switch ⑤ Recognition ⑥ Sensitivity ⑦ Power / low power indication light |

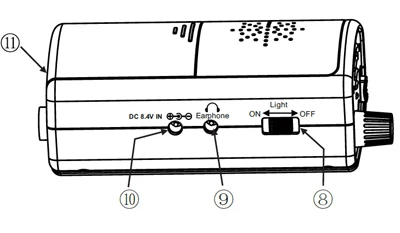

 | ⑧ Light Switch ⑨ Earphone jack ⑩ Charging port 11 Light |
  | Battery Installation and Charger: 1. Above photo is for Battery Installation: Push the battery door ntherward by pressing anti-slip groove on the bottom of battery door. Install 1* 7.4V li-battery to battery compartment ,then, close the battery door. 2. when lower battery, pls charge it via USB cable |

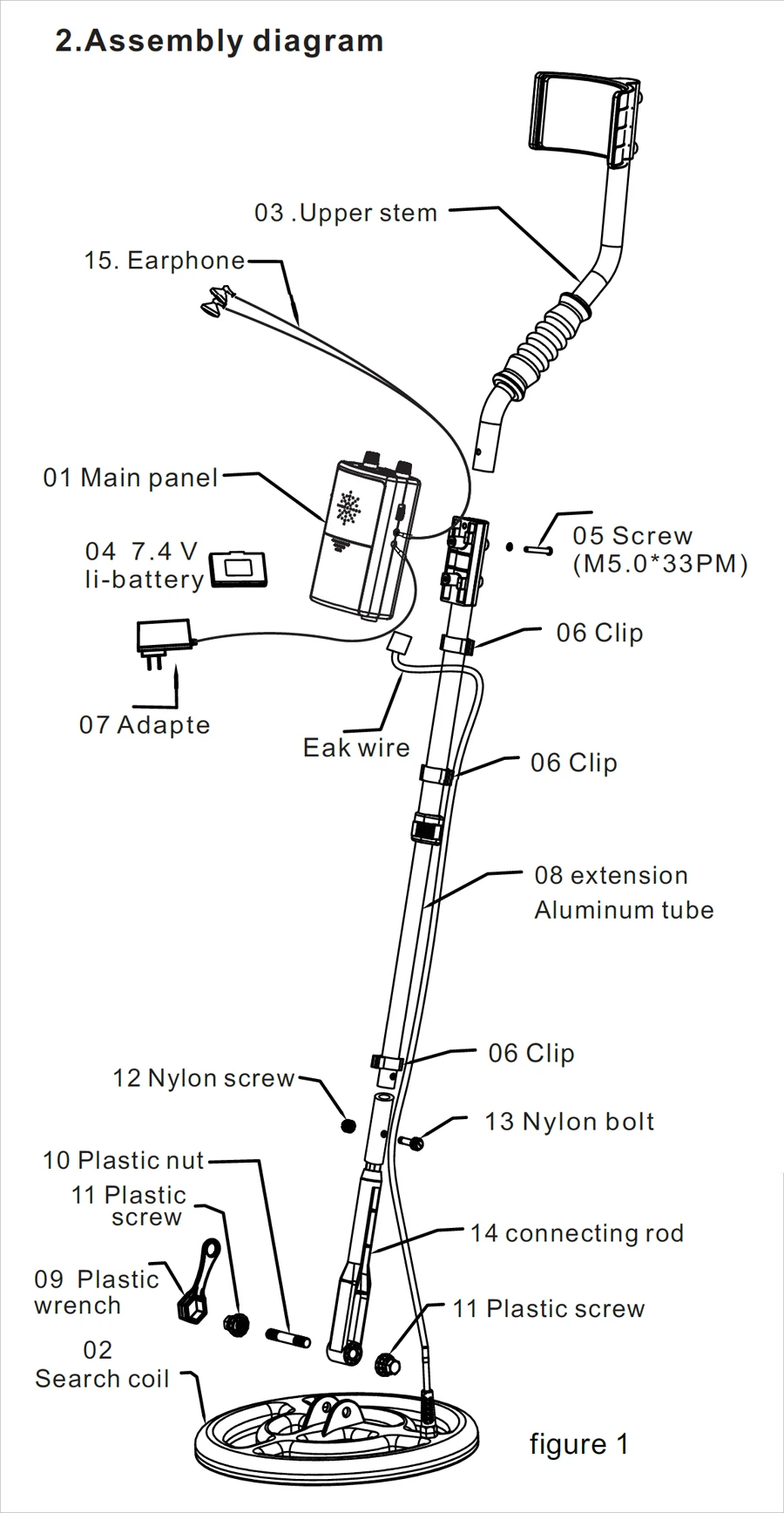

| Parts and assembly diagram | |
 | |
